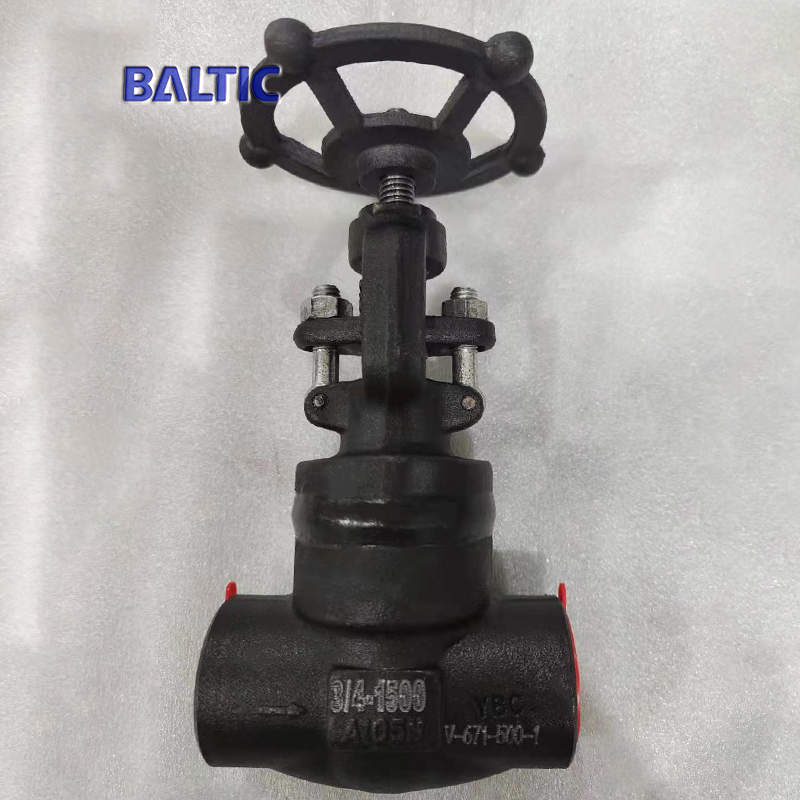

Welded Bonnet Globe Valve, 3/4 Inch, 1500 LB, API 602, SW

Welded Bonnet Globe Valve Manufacturer: API 602 High Pressure Globe Valves, Welded Bonnet, ASTM A105N, 3/4 Inch, Class 1500 LB, SW, API 602.

Tags:

• High Pressure Globe Valve
• Pressure Seal Bonnet Globe Valve
• 3/4 Inch Globe Valve
• Class 1500 LB Globe Valve
• API 602 Globe Valve
• SW Globe Valve
• Welded Bonnet Globe Valves
• ASTM A105N Globe Valve
• Small Size Globe Valve

Valve Description
Product: High-pressure small size globe valve, welded bonnet
Design: API 602
Body: ASTM A105N
Nominal size: 3/4 Inch
Nominal class: Class 1500 LB
End connection: SW
Face to face: as per manufacturing standard
Test and inspection: API 598

Technical parameters and characteristics
Product: Small size globe valve
Nominal diameter: 1/4 Inch - 4 Inch
Design temp.: -196℃ - 573℃
Design pressure: Class 150 - 4500 LB
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard: API 602, BS 5352
Face to face: Manufacture standard, ASME B16.10
Connection end: NPT, SW, BW, Flange
Test standard: API 598, ISO 5208
Operation: Handwheel, electric
Application: Power station, petroleum, chemical engineering
Function 1: Bolted bonnet, welted bonnet, pressure seal bonnet
Function 2: Plug disc, needle disc
Function 3: Full bore, reduced bore
Function 4: Integral flanged ends, welded on flanged ends
