UNS N10276 Ball Valve, API 608, 1 Inch, 600 LB, 2PC, SW

Looking for a reliable ball valve provider for UNS N10276 material? Look no further than our high-quality offering, featuring a 1 inch size, class 600 LB rating, DN25 and PN100 specifications, two-piece construction, and made from durable Hastelloy C276. Our valves are API 608 certified and come with SW Ends ASME B16.11 connections, as well as a side entry design and convenient hand lever operation. Trust our expert team to provide the best valve solutions for your needs.

Tags:

• UNS N10276 Ball Valve
• Hastelloy Ball Valve
• API 608 Ball Valve
• 1 Inch Ball Valve
• PN100 Ball Valve
• Class 600 LB Ball Valve
• 2PC Ball Valve
• SW Ball Valve
• Side Entry Ball Valve
• DN25 Ball Valve

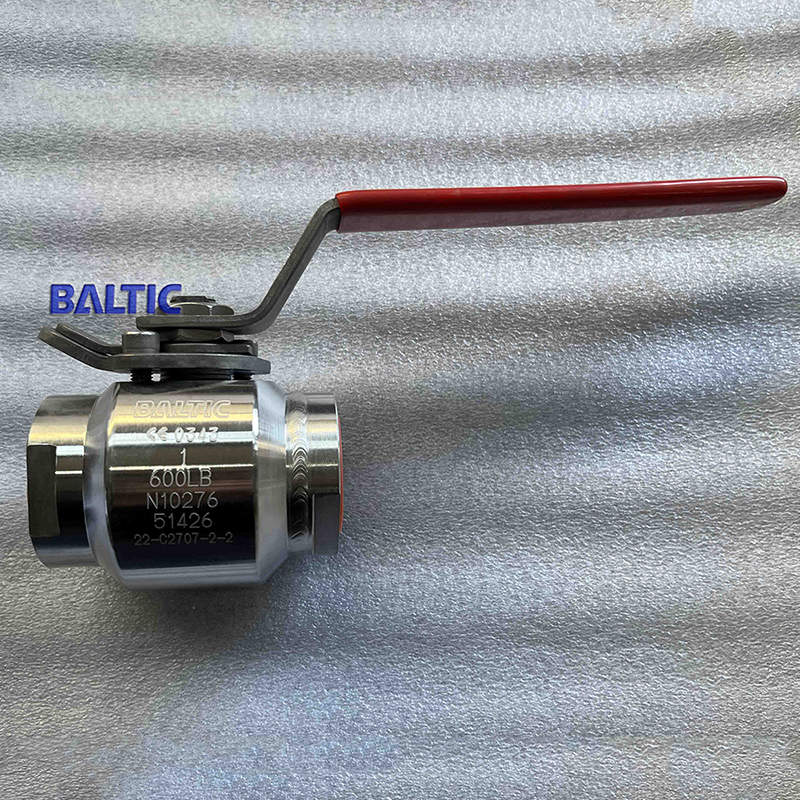

Side entry welded body ball valve, 2-PC body, NPS 1, 600 LB, N10276, SW.

Valve description:
Ball valve with hand lever.
Design: API 608.
Body: Hastelloy C276, UNS N10276.
Nominal size: 1 inch.
Nominal class: 600 lbs.
End Connection: SW as per ASME B16.11.
Face to face: as per MFG STD.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: NPT, SW, BW, Flanged.
Pressure range: Class 150 - 1500 LB (PN16 - PN250).
Working temperature: -46℃ - +200℃.
