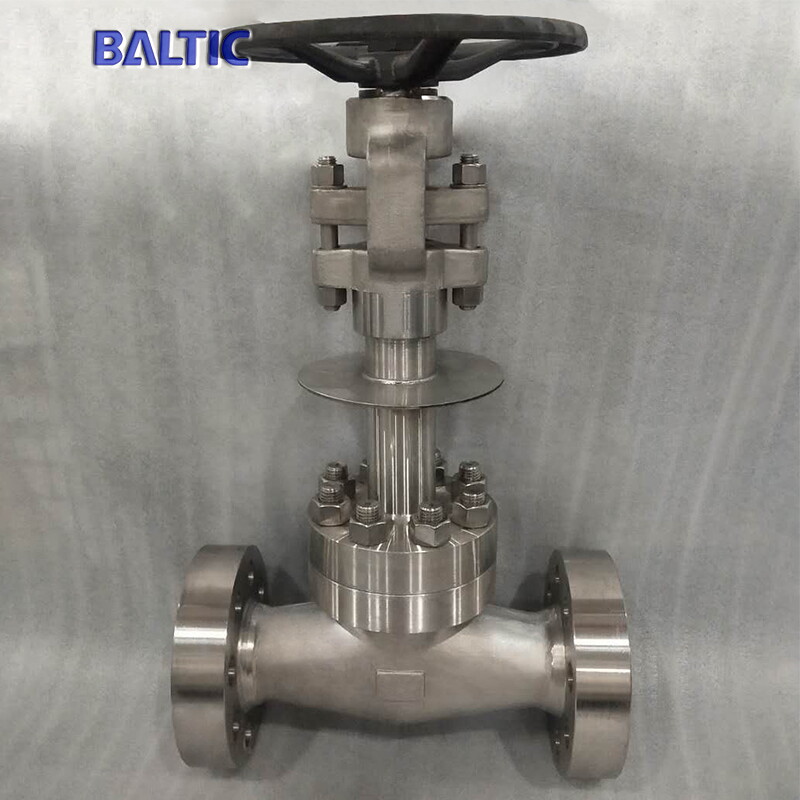

Stainless Steel Cryogenic Globe Valve, 2 Inch, 2500 LB, SW

Key Specifications / Features

Model No.: Hits: 3

Explore our range of high-quality stainless steel cryogenic globe valves, specifically crafted with precision for optimal performance. This valve, sized at 2 inches and capable of handling 2500 LB pressure, boasts a DN50 size and PN420 rating, meeting ASTM A182 F304 standards. Complete with extension stem and drip plate features, it ensures efficient operation and durability. RF end design adds versatility to its application. Trust in our expertise for reliable cryogenic valve solutions.

Request a quote Share

Tags:

Next: DN50 Cryogenic Globe Valve, PN420, ASTM A182 F304, ISO 15761

Previous: Extended Stem Aluminium Bronze Globe Valve, 1/2 Inch, 800 LB, NPT

Detail Information

Valve description:
Name: Cryogenic globe valve, for low temperature at -73℃.
Description: with extension stem and drip plate.
Design: API 602.
Body: ASTM A182 F304.
Nominal size: 2 Inch.
Nominal class: 2500 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small-size cryogenic gate valve
Nominal diameter	1/4 - 4 Inch
Design temp.	Down to -73℃
Design pressure	Class 150 - 1500 LB
Material	Stainless steel
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	LPG, LNG
Special treatment	Deep cryogenic treatment.
Special test	Impact test.
Function 1	Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	Short stroke for easy – quick open/close
Function 3	Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 4	The body seat could be a threaded seat or welded seat
Structure feature 1	Extended Bonnet.
Structure feature 2	With drip plate.
Structure feature 3	Fire Safety & Anti-static Design.
