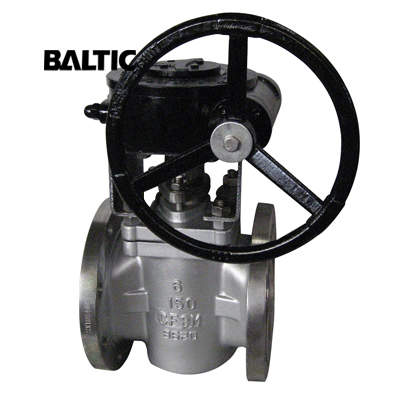

Soft Sealing Plug Valve, 6IN, CL150, ASTM A351 CF8M, API 6D, RF

Key Specifications / Features

Model No.: 1-2 Hits: 155

China soft sealing plug valve manufacturer Baltic provides API 6D sleeve type soft sealing plug valve, 6IN, CL150, ASTM A351 CF8M, RF, FF ASME B16.10.

Request a quote Share

Tags:

Previous: Sleeved Soft Sealing Plug Valve, ASTM A351 CF8M, 6 Inch, 300 LB

Detail Information

Valve description:
Name: sleeve type soft sealing plug valve.
Design: API 6D.
Body: ASTM A351 CF8M.
Nominal size: 6 Inch.
Nominal class: 150 LB.
Connection ends: RF X RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Sleeve type soft sealing plug valve
Nominal diameter	NPS 2”～24”	(DN50～DN600)
Design temp.	-46℃～120℃
Design pressure	CLASS 150～1500	（PN20～PN260）
Material	A216 WCB, WCC, A352 LCB, LCC A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B 148 C95800, C95500,
Design standard	API 6D, API 599
Face to Face	ASME B16.10
Connection end	RF, RTJ, BW
Test standard	API 598, ISO 5208
Operation	level, worm gear, electric, pneumatic
Application	petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical
Function 1	Option bore pattern: Venturi, Regular, Short, Standard
Function 2	metal to metal seated design
Function 3	Injection grease sealed design (for stem, and seats)
Function 4	fire safe
Function 5	Integral seat ring
