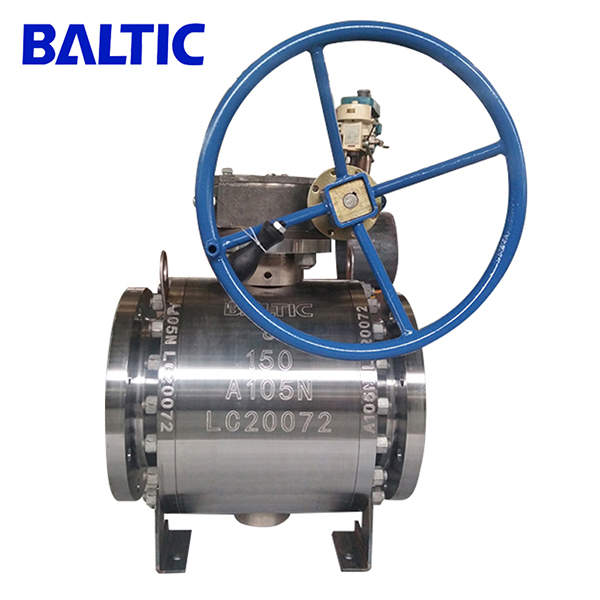

Side Entry Soft Seated Ball Valve, A105N, 8 Inch, Class 150 LB, RF

Side Entry Soft Seated Ball Valve Manufacturer in China: Side Entry Soft Seated Ball Valve, ASTM A105N, 8 Inch, Class 150, RF Flanged Ends, API 6D.

Tags:

• Side Entry Ball Valve
• Soft Seated Ball Valve
• ASTM A105N Ball Valve
• 8 Inch Ball Valve
• Class 150 LB Ball Valve
• RF Ball Valve

Quick Detail:
Low class, side entry, ball valve.
Design: API 6D.
Body: ASTM A105N.
Nominal size: 8 Inch.
Nominal class: 150 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +200℃.
