• Side Entry Ball Valve, DN50, PN40, 2 Inch, A105N, API 6D, RF

Side Entry Ball Valve, DN50, PN40, 2 Inch, A105N, API 6D, RF

Side Entry Ball Valve, DN50, PN40, 2 Inch, A105N, API 6D, RF

Key Specifications / Features

Model No.: Hits: 6

Discover our quality side entry floating ball valve with a DN50 size and PN40 pressure rating, made from durable A105N material and featuring an RF design. Choose a reliable and efficient valve solution for your industrial applications.
Request a quote Share

Detail Information

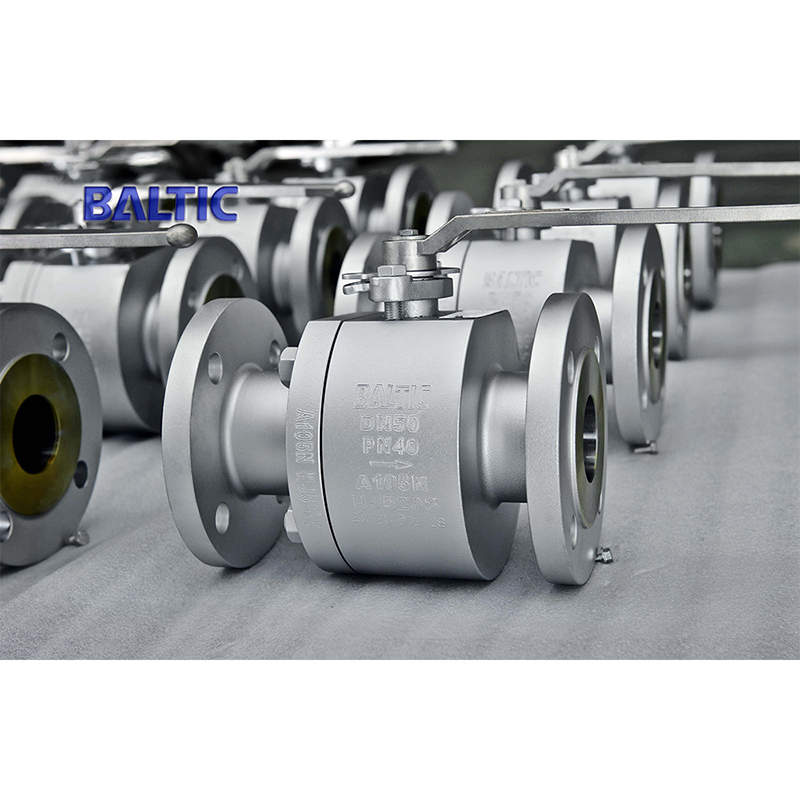

Side entry floating ball valve, DN50, PN40, A105N, RF.

Valve description:
Ball valve with Hand Lever.
Design: API 6D.
Body: ASTM A105N.
Nominal size: DN50.
Nominal class: PN40.
End Connection: flange ends, RF facing.
Face to face: EN 558-1.
Test and inspection: EN 12266-1.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 8 Inch (DN15 - DN200).
End connection: BW, Flanged.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -46℃ - +200℃.
