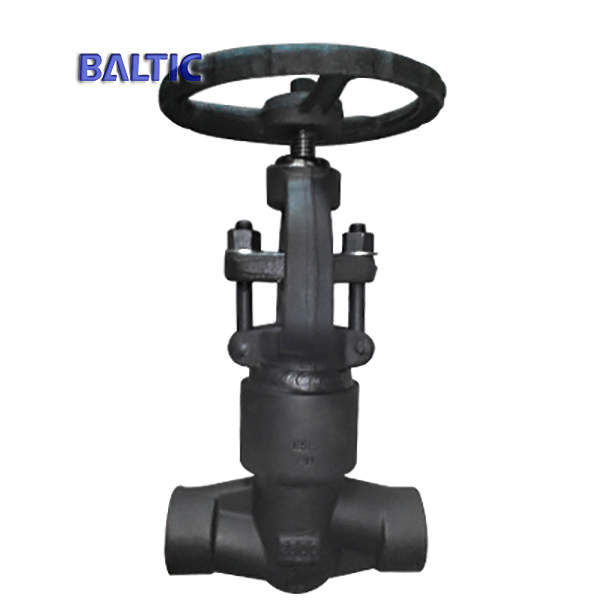

Pressure Seal Bonnet Globe Valve, A182 F11, 3/4IN, CL2500, BW

Key Specifications / Features

Model No.: 1-4 Hits: 99

China Pressure Seal Bonnet Globe Valve Factory Supplies Pressure Seal Bonnet Globe Valve: ASTM A182 F11, API 602 Design, 3/4 Inch, CL2500, BW Ends.

Request a quote Share

Tags:

Next: ASTM A182 F22 Y Type Globe Valve, 1/2 Inch, Class 2500, BW

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Valve descriptions
Product: Small size globe valve, pressure seal bonnet.
Design: API 602.
Body: ASTM A182 F11.
Nominal size: 3/4 Inch.
Nominal class: 2500 LB.
Connection ends: butt welded ends.
Face to face: as per manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4"-2"
Design temp.	-196℃-593℃
Design pressure	Class 150-2500
Material	Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, RF, RTJ
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, tap water engineering, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends、welded on flanged ends

Pressure Seal Bonnet Globe Valve, A182 F11, 3/4IN, CL2500, BW

Key Specifications / Features

Detail Information

Similar Products

ASME B16.34 Globe Valve, A182 F11, 1.5 Inch, 1500 LB, BW Ends

ASTM A182 F316H High Pressure Globe Valve, 3/4 Inch, 2500 LB, BW

DIN Standard Globe Valve, DN20, PN320, ASTM A105N

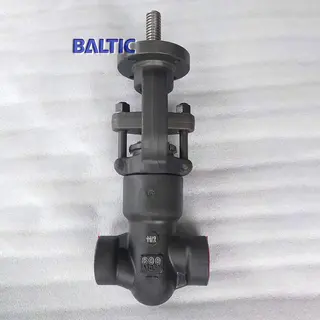

ASTM A105N Globe Valve, API 602, 1-1/2 Inch, 800 LB, BW
