Model No.: 2-1 Hits: 107

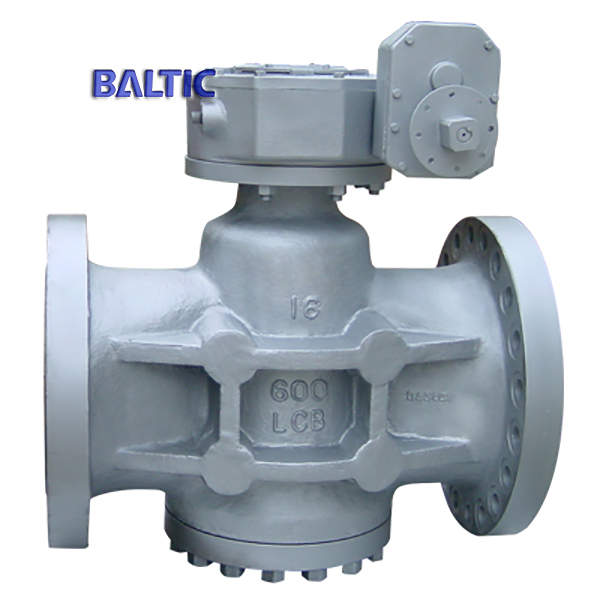

Product | Pressure balance type plug valve | |
Nominal diameter | NPS 2”~24” | (DN50~DN600) |
Design temp. | -46℃~120℃ | |
Design pressure | CLASS 150~1500 | (PN20~PN260) |
Material | A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M, A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN), ASTM B 148 C95800, C95500, |
|
Design standard | API 6D, API 599 | |
Face to Face | ASME B16.10 | |
Connection end | RF, RTJ, BW | |
Test standard | API 598, ISO 5208 | |
Operation | level, worm gear, electric, pneumatic |
|
Application | petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical | |
Function 1 | Option bore pattern: Venturi, Regular, Short, Standard | |
Function 2 | metal to metal seated design | |
Function 3 | Injection grease sealed design (for stem, and seats) | |
Function 4 | fire safe |
