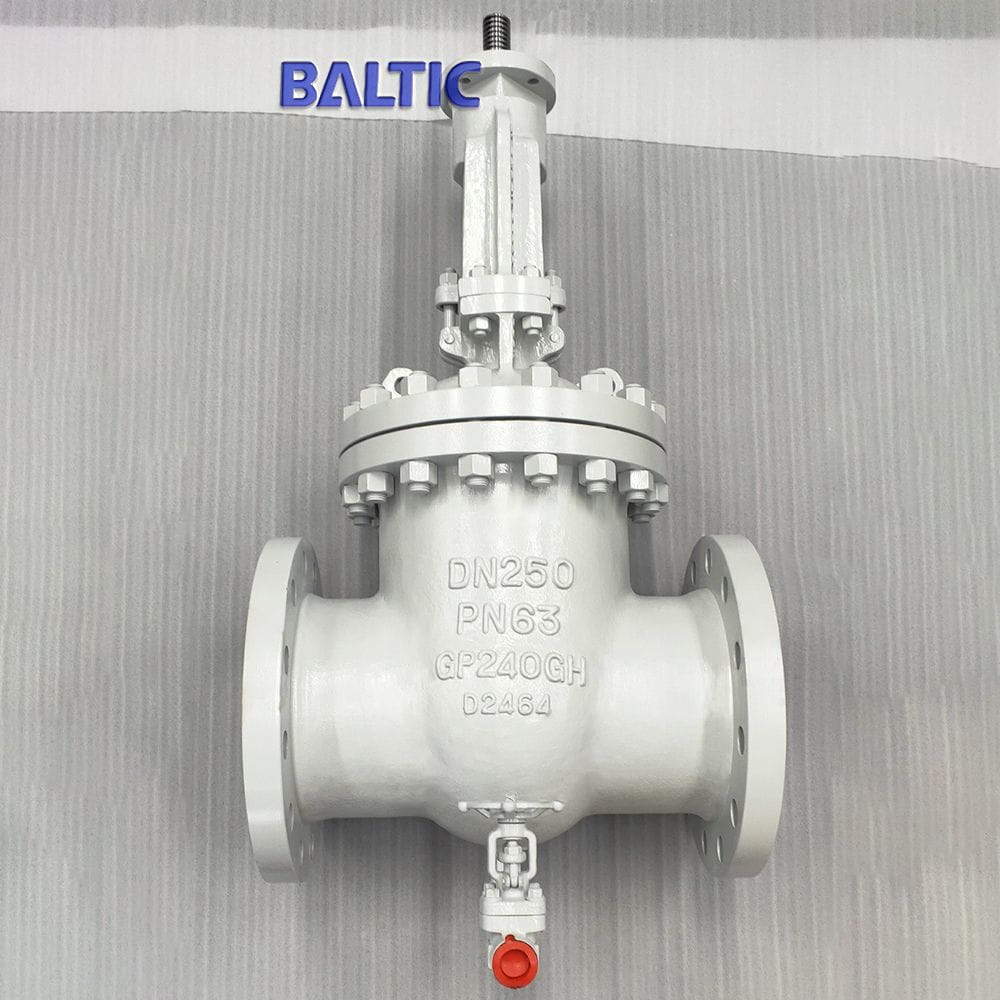

PN63 Gate Valve, EN 1984, GP240GH, DN250, Flexible Wedge, RF

Welcome to PN63 Gate Valve Factory! We specialize in manufacturing top-quality gate valves such as the GP240GH model. This gate valve boasts impressive specifications, including DN250 (10 Inch) size, Class 400 LB rating, and features a convenient Drain Valve. Crafted to meet the EN 1984 and DIN 3352 standards, our gate valve ensures reliability with its Flexible Wedge design. Compliant with API 600 and ASME B16.34 standards, this valve operates seamlessly. Control and operation are made easy with the Handwheel mechanism. Choose PN63 Gate Valve Factory for excellence in gate valve solutions.

Tags:

• EN 1984 Gate Valve
• GP240GH Gate Valve
• DN250 Gate Valve
• Flexible Wedge Gate Valve
• RF Gate Valve
• 10 Inch Gate Valve
• Class 400 LB Gate Valve
• DIN 3352 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve, with drain valve.
Design: EN 1984, DIN 3352
Material: GP240GH.
Nominal Size: DN250
Nominal Pressure: PN63
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Other features
Bolted bonnet type, pressure seal bonnet, Flexible wedge, full bore

For pressure seal bonnet type:
Bonnet gasket, Metal sealing, RTJ ring, SS 304, long service, Threaded stem, No contact with the medium, anti corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
Material: ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM B148 C95800, ASTM B148 C95500, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), CN3MN, CK3MCUN, CN7M, ASTM A216 WCB, ASTM A216 WCC, ASTM A352 LCB, ASTM A352 LCC
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design temp.: -196℃  -  573℃.
Operation: Hand wheel, gearbox, electric
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
