One-piece Single Body Ball Valve, 1-1/2 Inch, 150 LB, WCB

Looking for a reliable single-body ball valve supplier? Look no further than our one-piece type valve with a 1-1/2 inch (DN40) size, Class 150 LB (PN20) rating, and ASTM A216 WCB construction. This valve is designed to API 608 standards with a reduced bore and RF facing for optimal performance in your application. Trust us to provide the high-quality ball valves you need for your project.

Tags:

• One-piece Ball Valve
• 1PC Ball Valve
• 1-1/2 Inch Ball Valve
• DN40 Ball Valve
• Class 150 LB Ball Valve
• PN20 Ball Valve
• ASTM A216 WCB Ball Valve
• API 608 Ball Valve
• RF Ball Valve

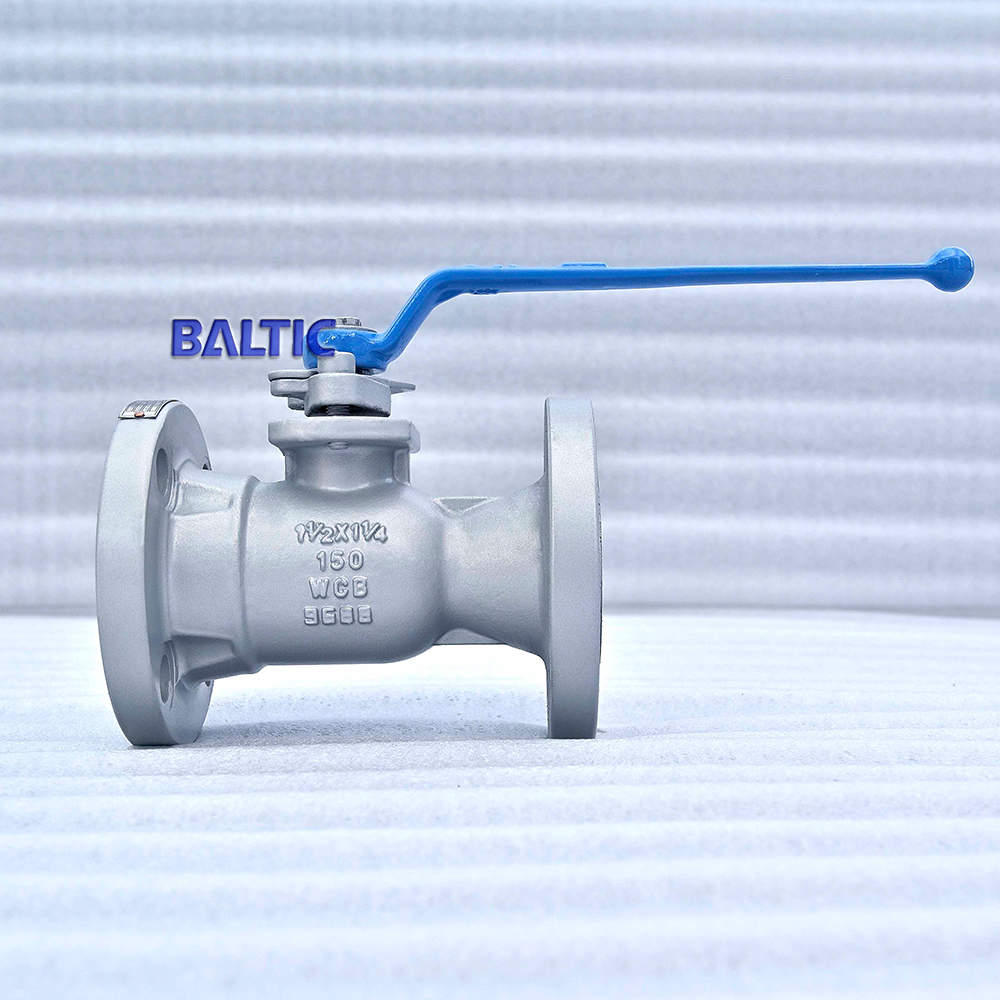

One-piece body ball valve, single body type, reduce bore, NPS 1-1/2, 150 LB, WCB, RF.

Valve description:
Ball valve with a hand lever.
Design: API 608.
Body: ASTM A216 WCB.
Nominal size: 1-1/2 inch.
Nominal class: 150 lbs.
End Connection: flange ends, RF facing.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 4 Inch (DN15 - DN100).
End connection: Flanged.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -46℃ - +200℃.
