• Welded Flange End Angle Globe Valves in ASTM A182 F316
Welded Flange End Angle Globe Valves in ASTM A182 F316

Welded Flange End Angle Globe Valves in ASTM A182 F316

  • 09 02, 2021
We finished manufacturing a batch of angle globe valves and shipped them by air to one of our European clients last week. We have produced multiple batches of the angle type globe valves not only for this client but also some other clients till now. We have rich experience and mature processes for this kind of valve.

Product descriptions
Angle type globe valve with handwheel
OS&Y, bolted bonnet, rising stem, full bore, weld-on flanges

Design: EN ISO 15761.
Media: air and hydraulic oil max. 80°C, max. 90 barü.

Body: ASTM A182 F316.
Trim: AISI 316.
Seat: stellite.
Packing: Graphite
Gasket: AISI 316+Graphite.

Nominal size: DN25.
Nominal class: PN100.
Quantity: 12 pcs.

End connection: RF according to EN1092-1 form B2.
Face to face: DIN 3202 F33, 115 mm.
Test and inspection: EN 12266-1.

If you are interested in angle type globe valves, pls freely contact us via email: [email protected]

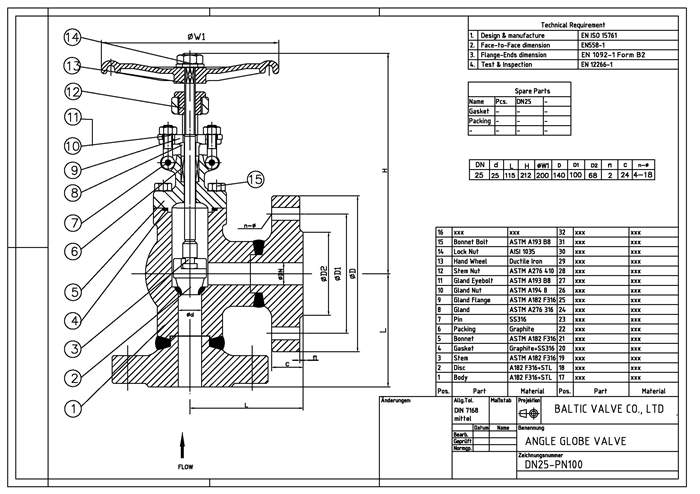

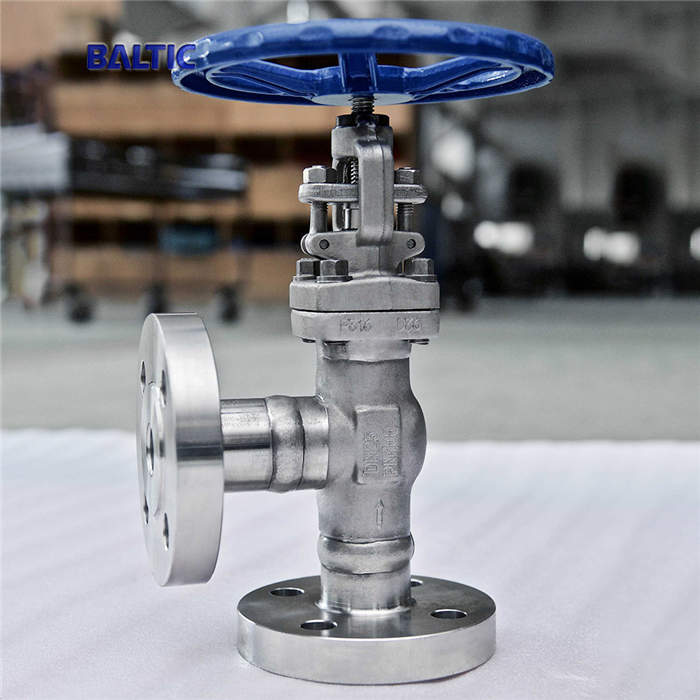

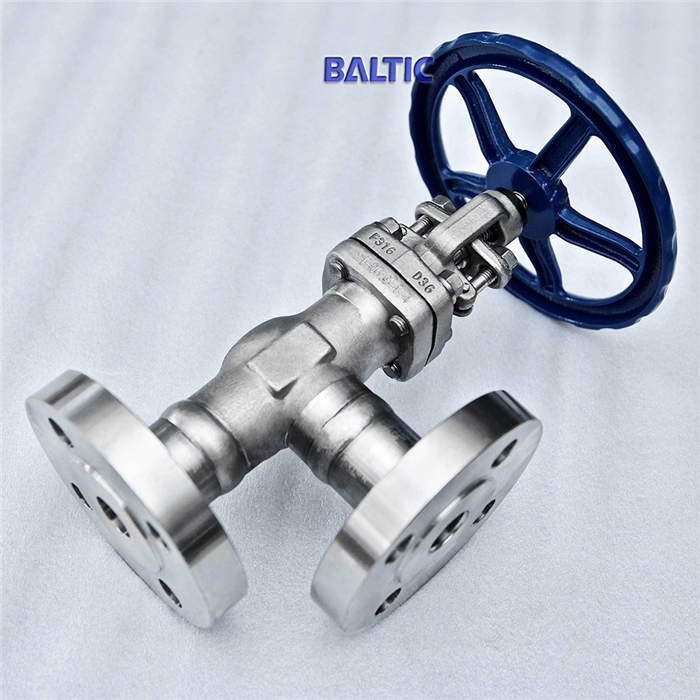

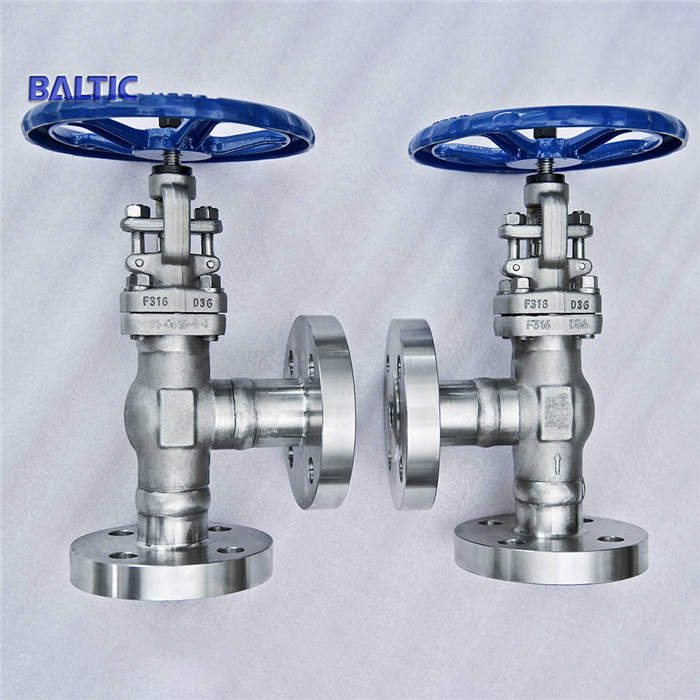

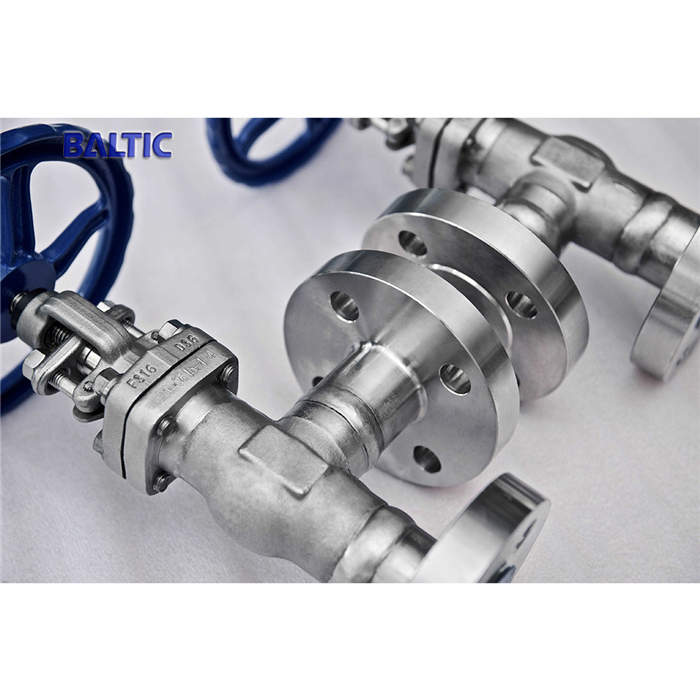

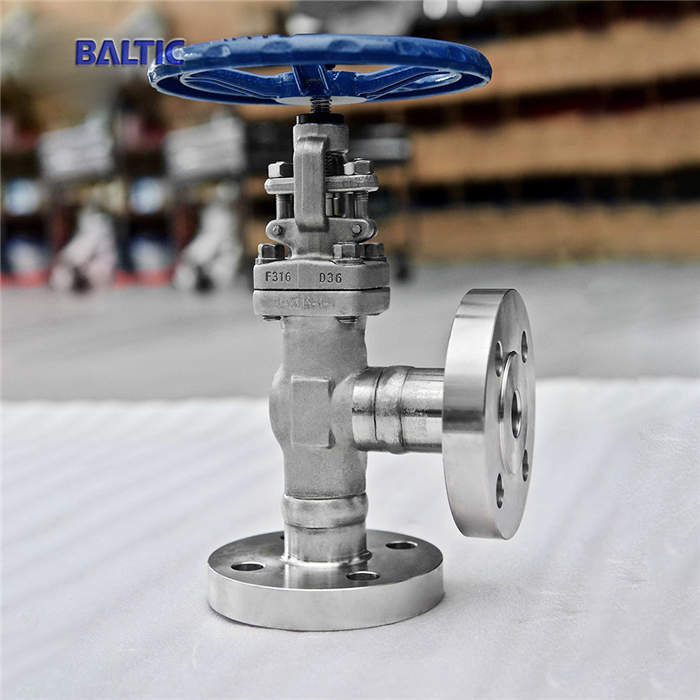

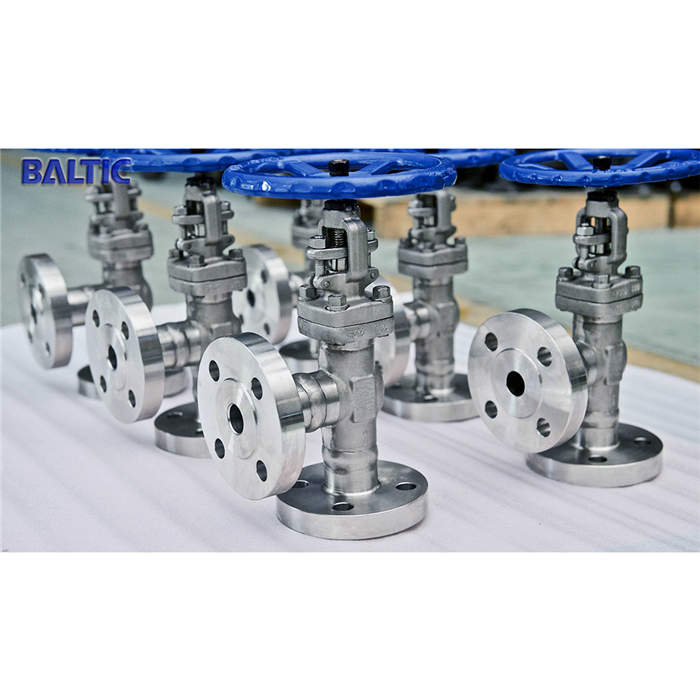

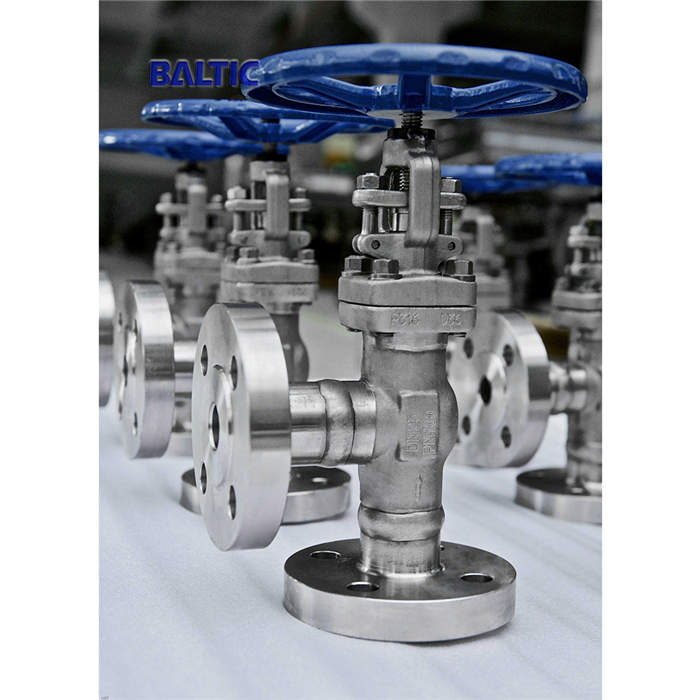

Kindly, please find the attached GA drawing and valve pictures.


BALTIC VALVE CO., LTD
DATED September 1, 2021
