Big size gate valve for raw water
We finished & delivered class 300 48 inch gate valves to BP/ Basra Oil Company in Iraq.
Purchase Order Number: OR 127267
Requested the valve inside & outside to be done Epoxy Coating

Product description:
API 600 gate valve with gearbox

O.S&Y, BB, Rising Stem, Full Port
Flexible Wedge with Back Seat.
With Bottom Feet for Standing

Materials
Body: ASTM A216 WCB
Trim: 5#
Stem: ASTM A182 F6A
Wedge: WCB + Stellite
Body Seat: A105 + Stellite
Stud/Nut: A193 B7 + Zn / A194 2H + Zn
Stem Packing: Graphite
Bonnet Gasket: SS 304 + Graphite

Connection: RF acc. to ASME B16.47 Series A
Face to Face: ASME B16.10 = 2235 mm.

Size: 48 inch.
Class: 300 lb.
Qty: 2 pcs.

Kindly, please find the following copies of our GA drawing, valve pictures:

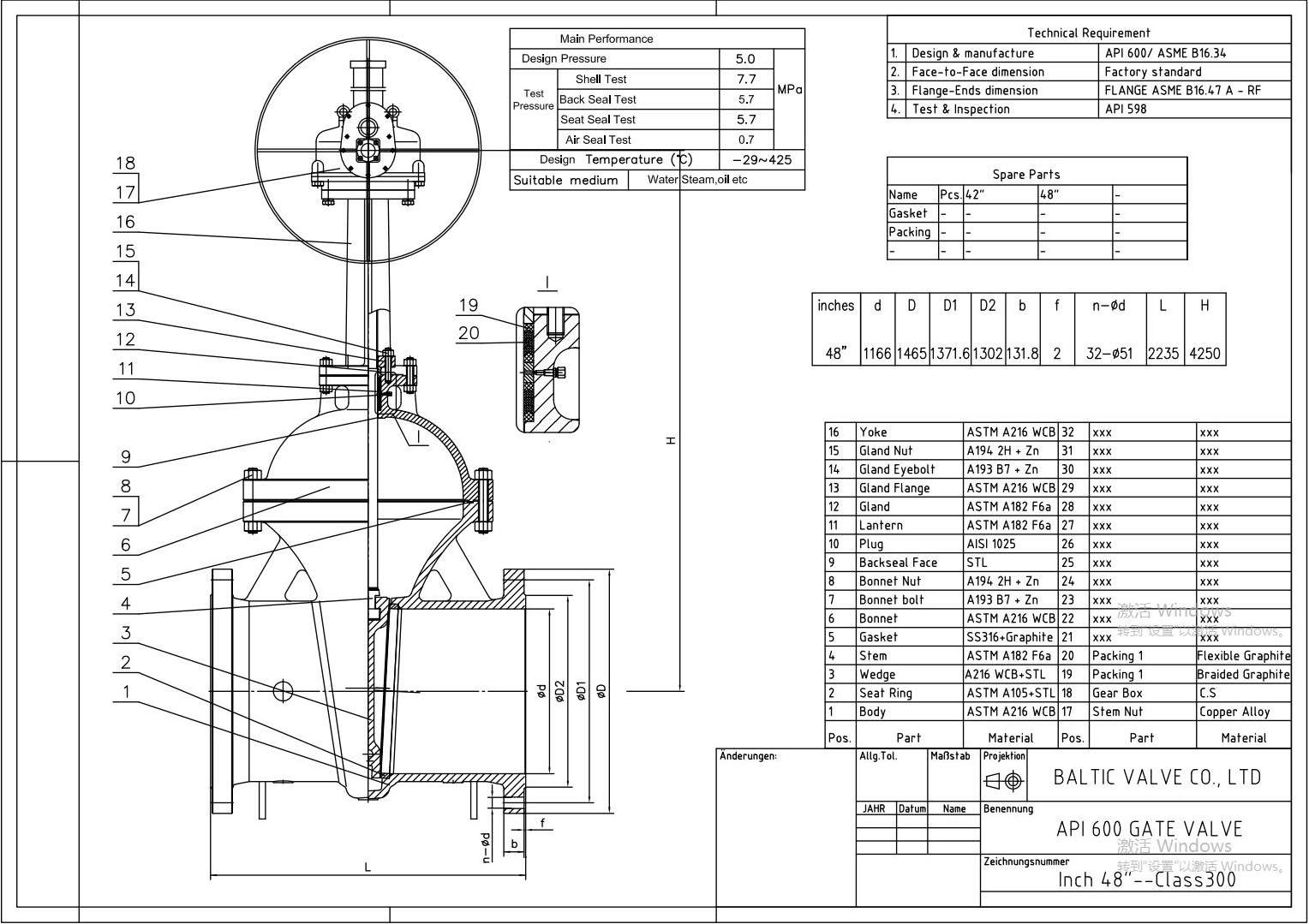

GA drawing：
We delivered class 300 48 inch gate valves to BP/ Basra Oil Company in Iraq

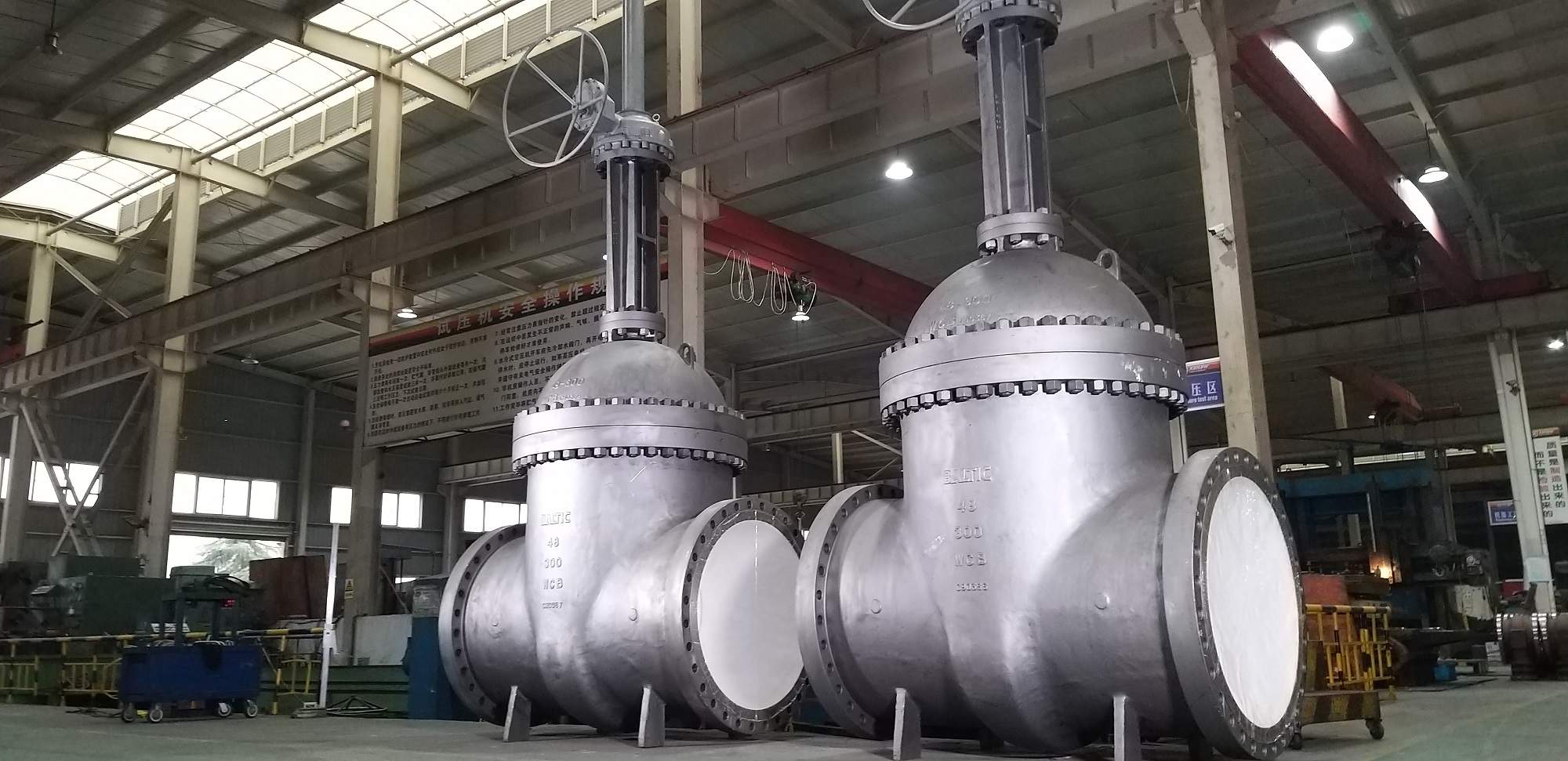

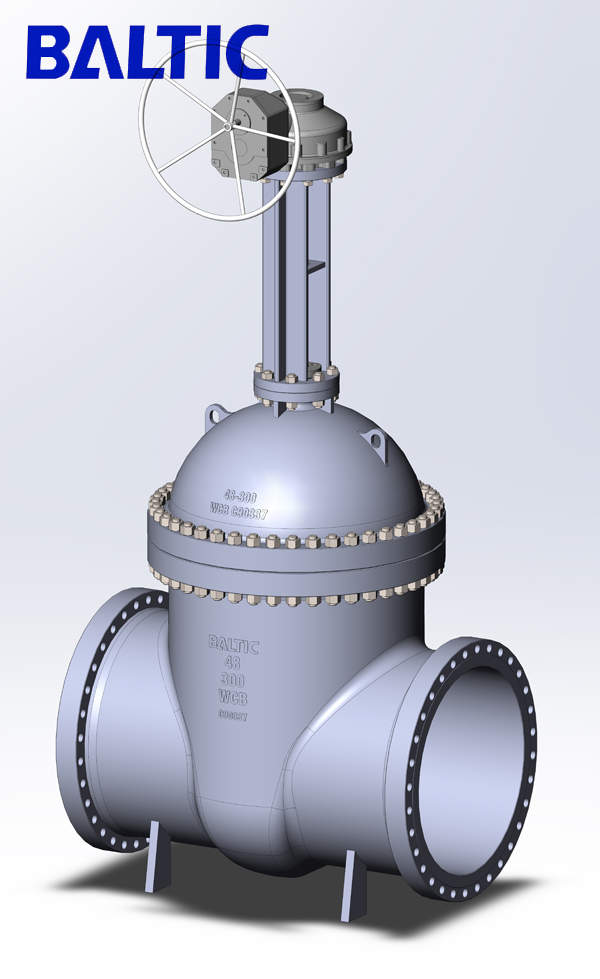

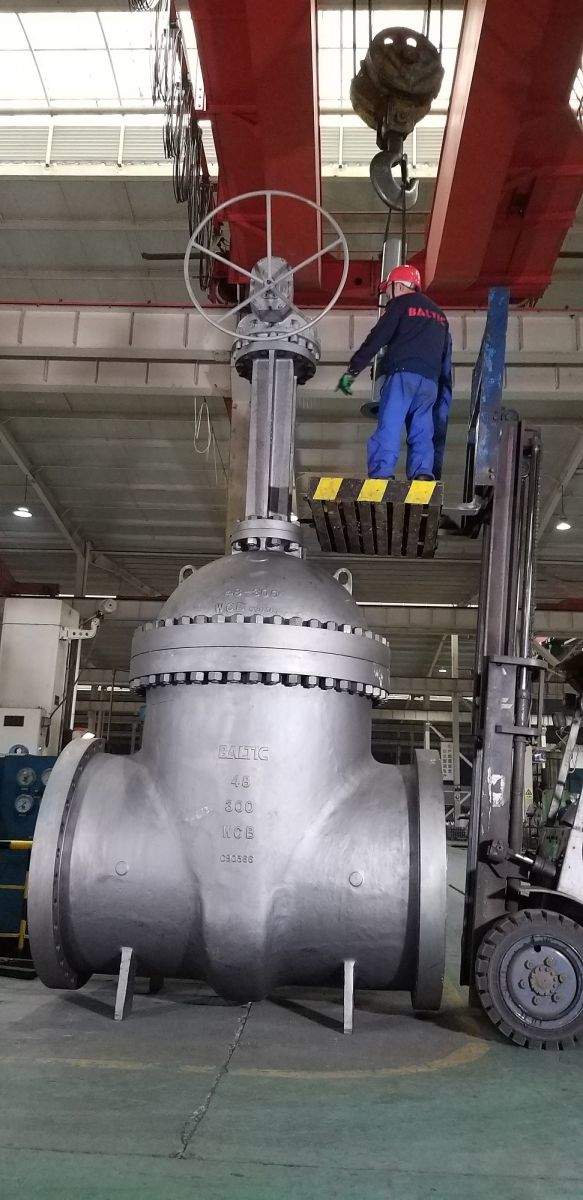

Valve pictures：
We delivered class 300 48 inch gate valves to BP/ Basra Oil Company in Iraq

We delivered class 300 48 inch gate valves to BP/ Basra Oil Company in Iraq

We delivered class 300 48 inch gate valves to BP/ Basra Oil Company in Iraq

BALTIC VALVE CO., LTD
DATED DEC. 26TH,2019
