• The Gate Valve with Gearbox, ASTM A216 WCB, API 600
The Gate Valve with Gearbox, ASTM A216 WCB, API 600

The Gate Valve with Gearbox, ASTM A216 WCB, API 600

  • 01 22, 2021
API 600 gate valve with gearbox, high performance
Class 600 LB, bonnet gasket RTJ ring, material SS304

Product description:
API 600 gate valve with gearbox

OS&Y, BB, Rising Stem, full port
Flexible Wedge with Back Seat

Materials
Body: ASTM A216 WCB
Trim: 5#
Stem: ASTM A182 F6A
Wedge: WCB + Stellite
Body Seat: A105 + Stellite
Bonnet Gasket: RTJ Ring

Connection: RF acc. to ASME B16.5
Face to Face: ASME B16.10

Item 1)  4qty  10 Inch x 600 LB   L=787 MM
Item 2)  1qty  14 Inch x 600 LB   L=889 MM
Item 3)  2qty  16 Inch x 600 LB   L=991 MM

Please Kindly find attached the copy of GA drawing and valve pictures.

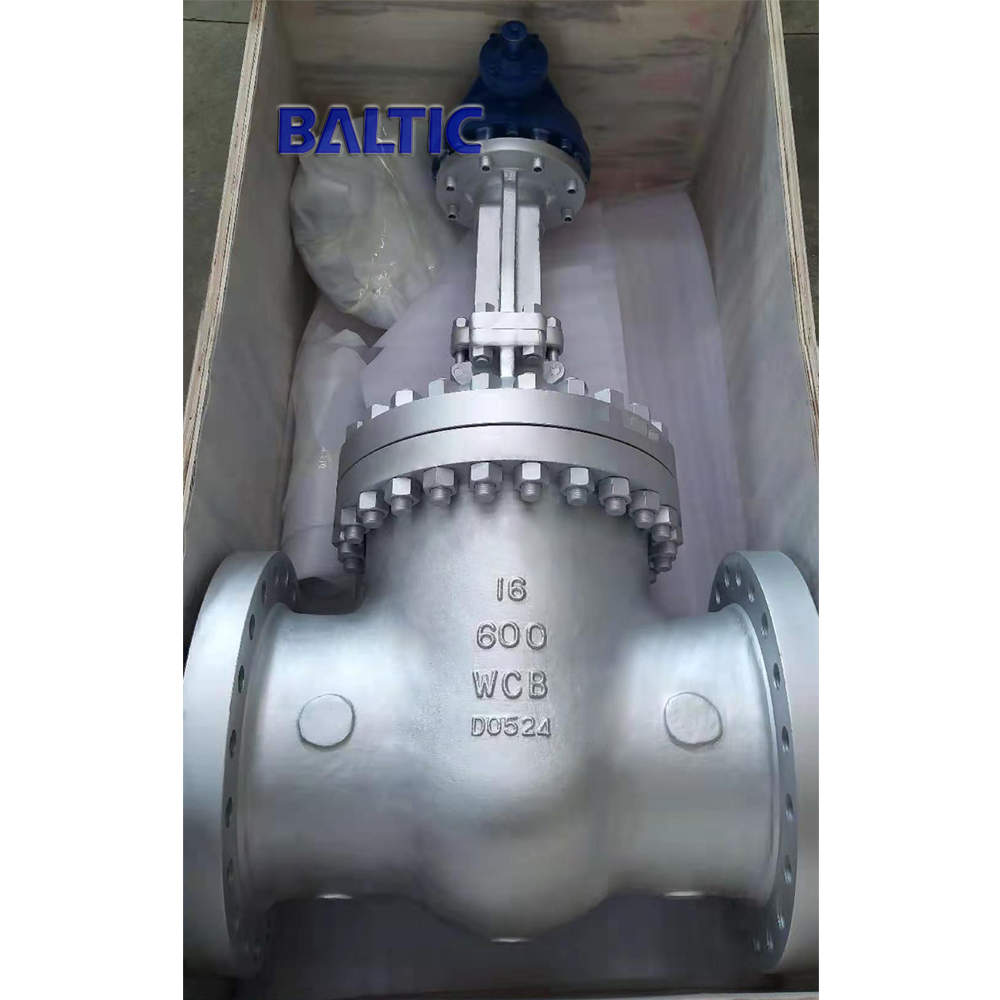

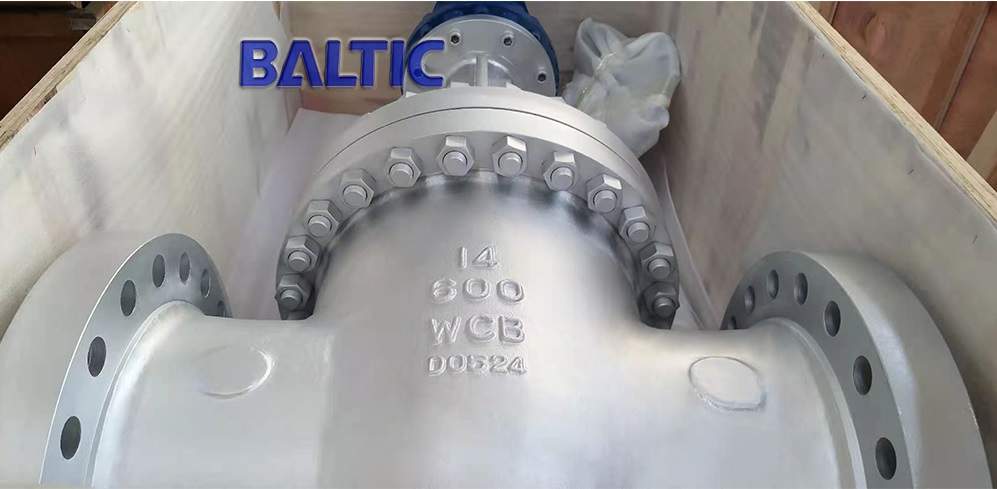

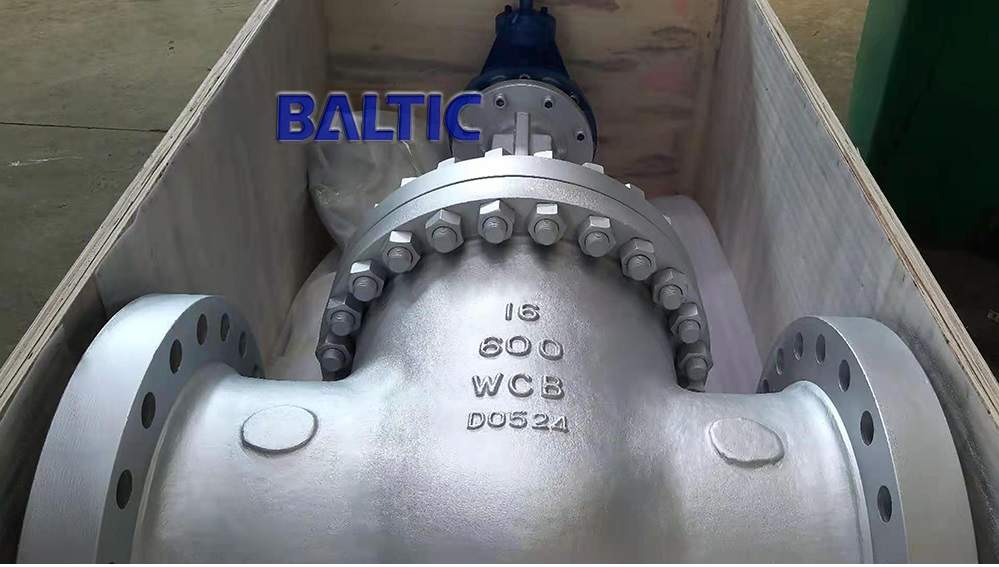

The Gate Valve

The Gate Valve

The Gate Valve

The Gate Valve

The Drawing

BALTIC VALVE CO., LTD.
DATED JAN. 19TH, 2021
