We are thrilled to unveil our latest innovation: the Non-Rising Stem Gate Valve with Hand Wheel Operation. Crafted with precision engineering and cutting-edge design, this valve sets a new standard for performance and reliability in industrial applications.

Key Features:
Our Gate Valve boasts a flat body and bolted bonnet, complemented by an inside screw mechanism for smooth operation. With a non-rising stem and hand wheel, users can effortlessly control and maintain the valve as needed. The inclusion of metal-to-metal sealing and a flexible wedge design ensures optimal performance even in challenging conditions.

Technical Specifications:
Ends Connection: Flange ends compliant with EN 1092-1 / B1 standards
Face to Face Dimension: Conforming to EN 558, series 14 specifications
Body/Bonnet Material: Constructed from high-quality 1.0619 carbon steel
Trim Composition: Made of durable 13%Cr alloy
Wedge Seat: 13%Cr overlay with a 3mm thickness for enhanced durability
Body Seat: Also featuring 13%Cr overlay with a 3mm thickness for extended longevity

Available Sizes and Pressure Ratings:
DN150, PN16, Length: 210mm
DN80, PN16, Length: 180mm

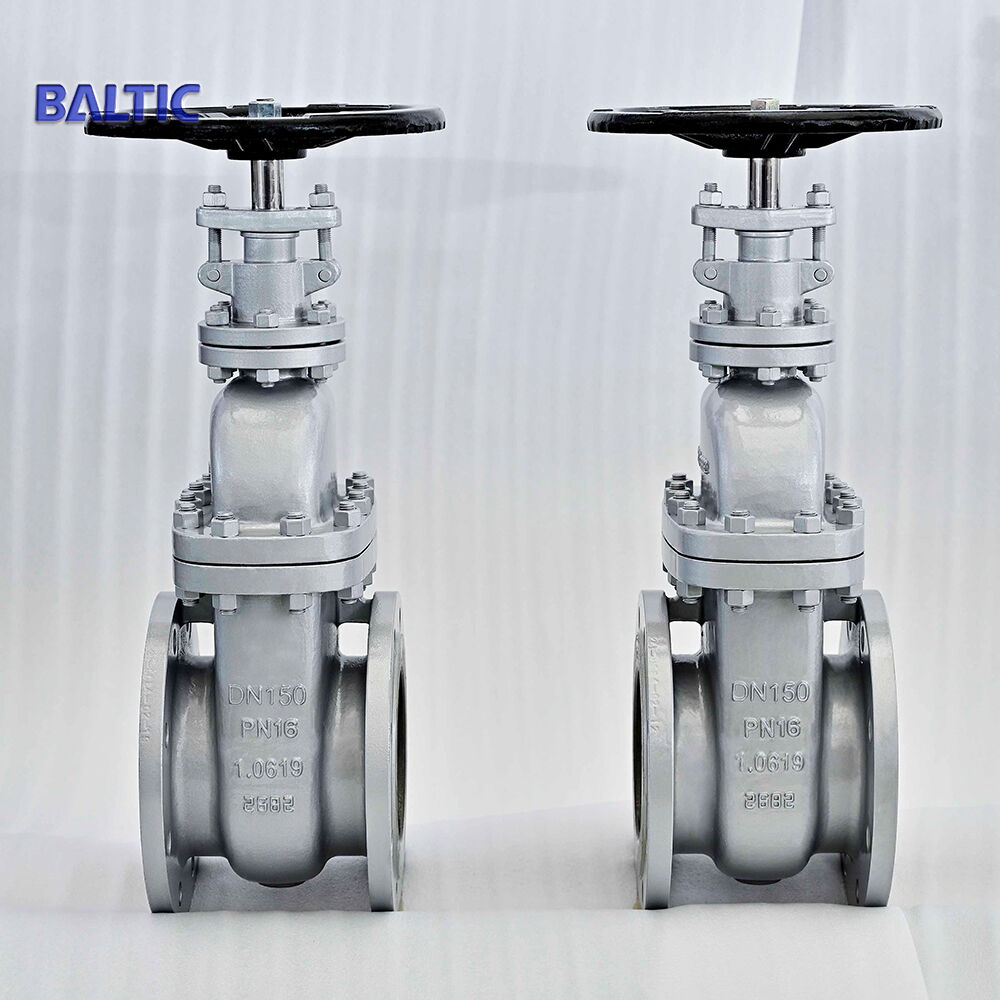

Non-Rising Stem Gate Valve-DN150,PN16
Non-Rising Stem Gate Valve-DN150, PN16

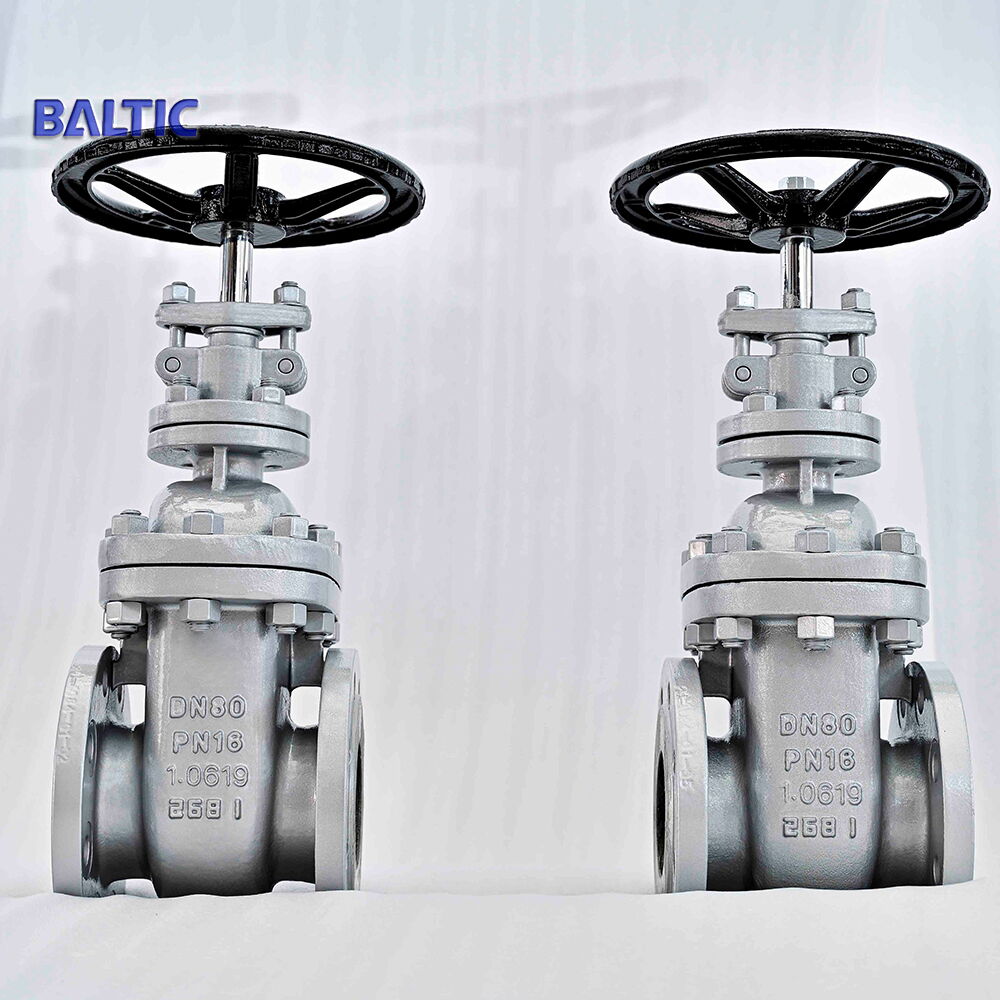

Non-Rising Stem Gate Valve-DN80, PN16
Non-Rising Stem Gate Valve-DN80, PN16


Contact Us:
For inquiries regarding DIN/EN gate valves or any additional information, please do not hesitate to reach out to us via email at [email protected]. Our knowledgeable team is on hand to assist you promptly and efficiently.

Attached Documents:
For your convenience, we have enclosed GA drawings and valve pictures to provide a comprehensive insight into our product's design and functionality.

Thank you for considering Baltic Valve Co., Ltd. as your preferred partner for high-quality valve solutions.

Warm Regards,

Baltic Valve Co., Ltd.
Date: May 17th, 2024

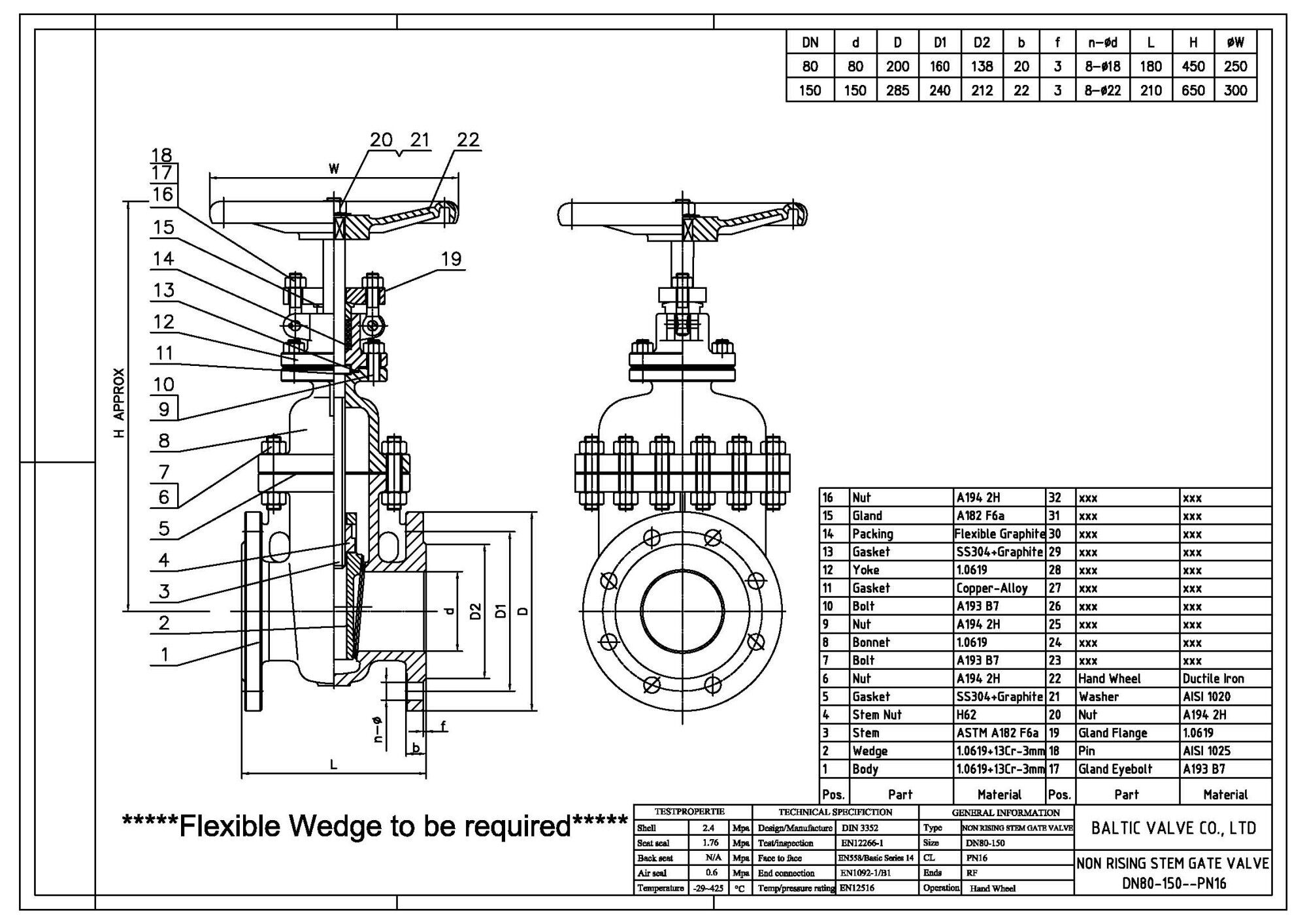

Drawing of Non-Rising Stem Gate Valve
Drawing of Non-Rising Stem Gate Valve
