Product Announcement:
We are pleased to introduce our new high-pressure, large-size gate valves designed for mounting AUMA actuators. These gate valves adhere to the DIN/EN standards and are ideal for high-temperature steam applications.

Product Features:
Model: EN1984 Gate Valve with Bare Stem and ISO Top Flange 5210
Design: Outside Screw & Yoke (OS&Y), Bolted Bonnet (BB), Bellow Sealed (BG), Flexible Wedge, Full Port
Connection Standards:
Ends Connection: Flanged as per EN1092-1/B2
Face-to-Face Dimensions: According to EN558-1, Line 26

Material Specifications:
Body: Cast Steel 1.0619
Trim: Stellite (5# Fully STL)

Operating Parameters:
Medium: High-Temperature Steam
Maximum Working Temperature: +253°C
Maximum Working Pressure: 42 bar

Available Configurations:
Item 1:
Pressure Rating: PN100
Nominal Diameter: DN250
Length: 650 mm
ISO Top Flange: 5210 F16

Item 2:
Pressure Rating: PN100
Nominal Diameter: DN350
Length: 850 mm
ISO Top Flange: 5210 F25

Client-Specified Requirements:
Internal components must be free of non-ferrous metals
Stellite sealing net thickness after machining must be 3mm

For further details or to place an order, please contact us via email at: [email protected].

Attachments:
 Gate Valve Images
 General Assembly (GA) Drawings


BALTIC VALVE CO., LTD
Date: May 27, 2024

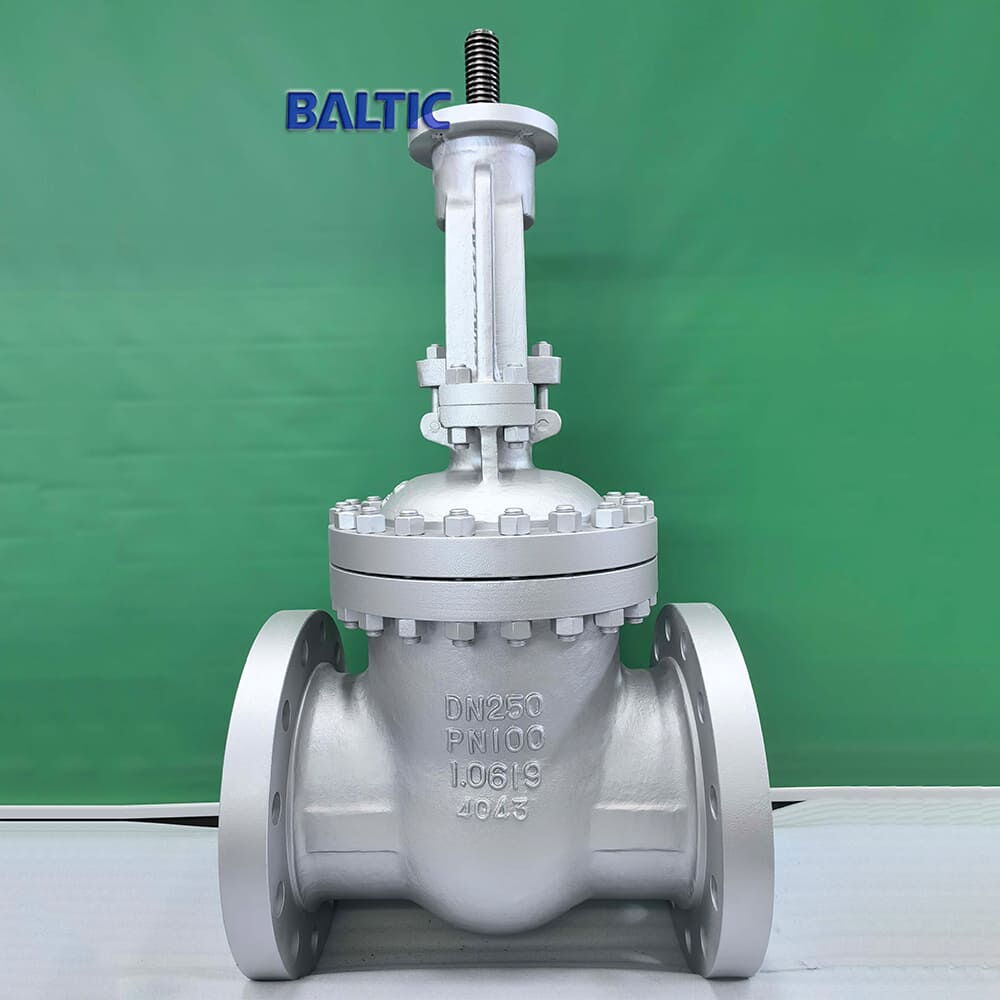

 PN100, DN250 Gate Valve
DN250, PN100 Gate Valve

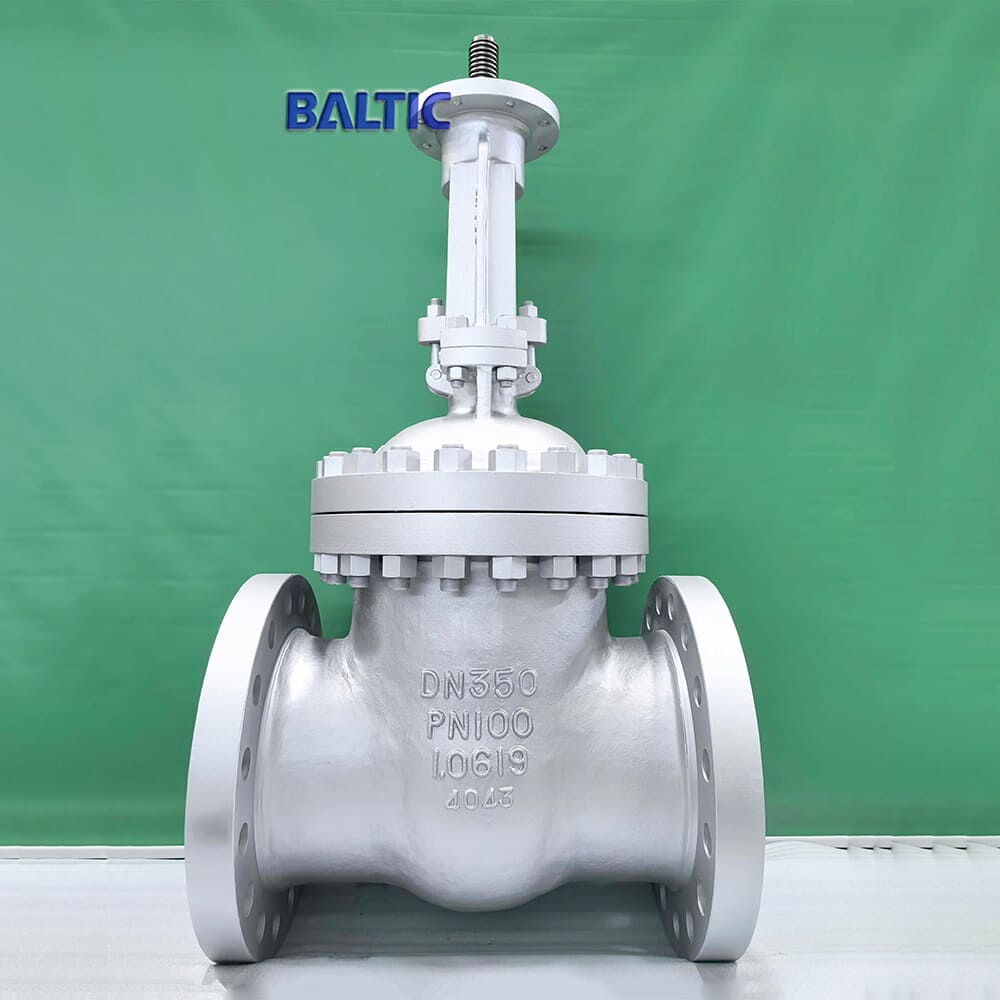

DN350, PN100, Gate Valve
DN350, PN100, Gate Valve

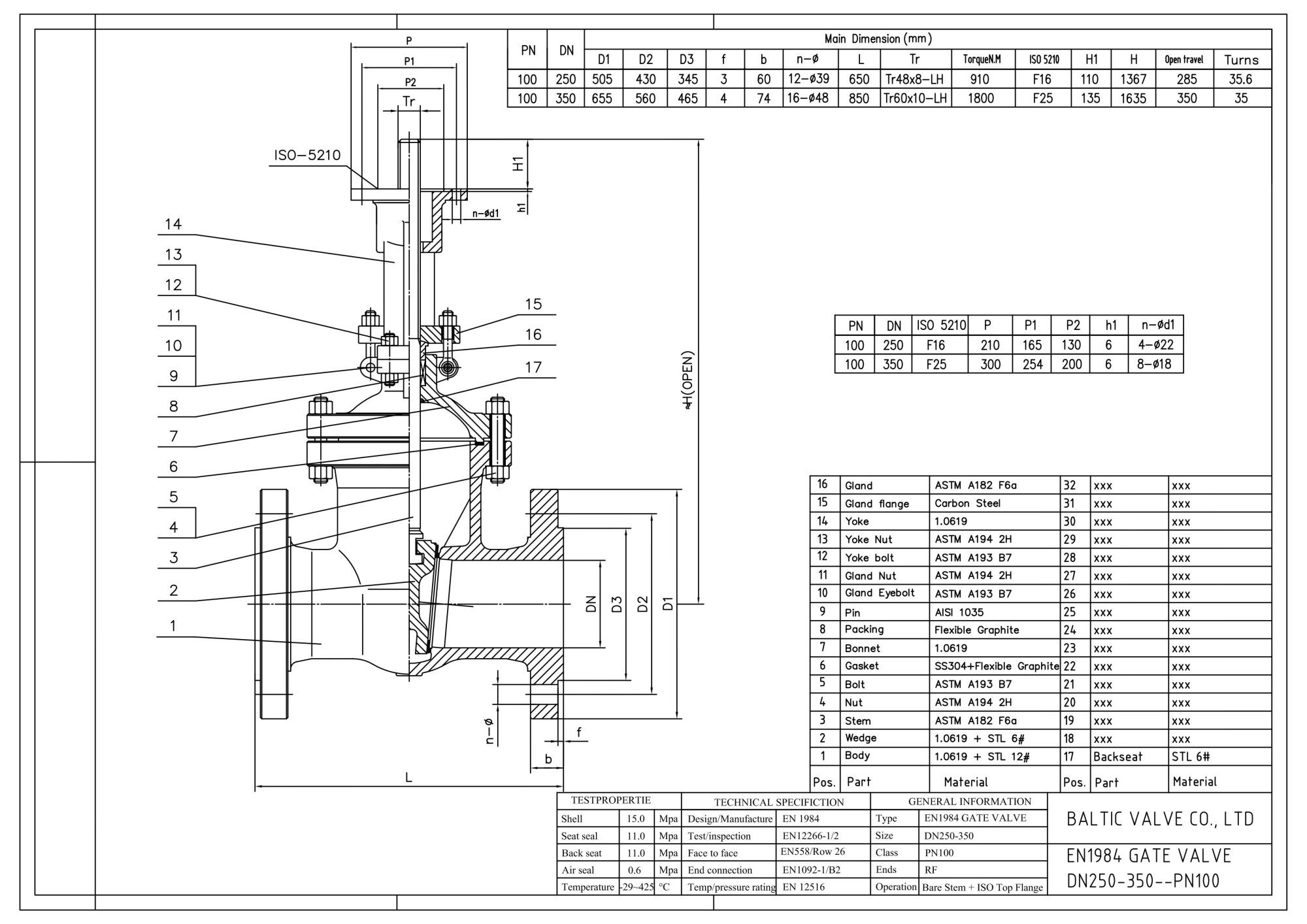

General Assembly (GA) Drawings of Gate Valve
General Assembly (GA) Drawings of Gate Valve
