• High-end Swing Check Valves for Power Plant of PN250
High-end Swing Check Valves for Power Plant of PN250

High-end Swing Check Valves for Power Plant of PN250

  • 03 25, 2022
We just delivered four Swing Check Valves to one of our Poland clients. NDE tests were performed on butt welding ends to assure excellent quality.

Product descriptions
Swing type Check Valve with eye bolt
Bolted Bonnet
Bonnet Gasket with RTJ ring: R53, material SS304

Butt Welded Ends Dimension: 219.1mm X 179 mm
Face to Face Dimension: 850 MM (Customer Requested)

Body/Bonnet: GP240GH
Trim: No. 8
Body Seat: STL

Medium: water or steam
Working Pressure: 137 bare
Working Temperature: 225⁰C

4Qty  DN200 - PN250    L=850 MM

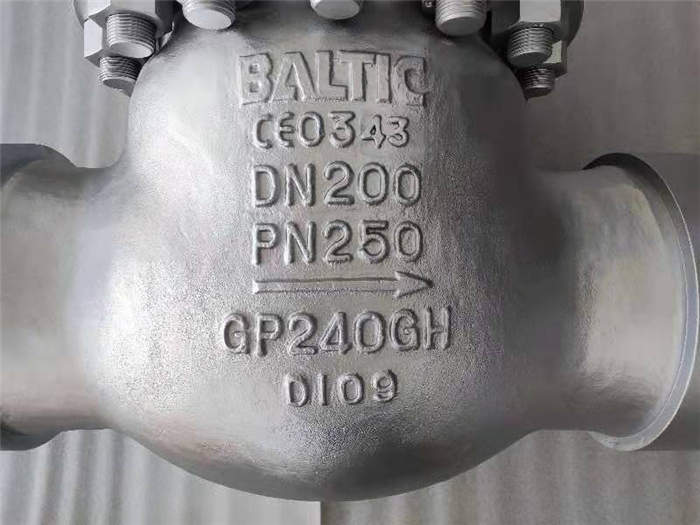

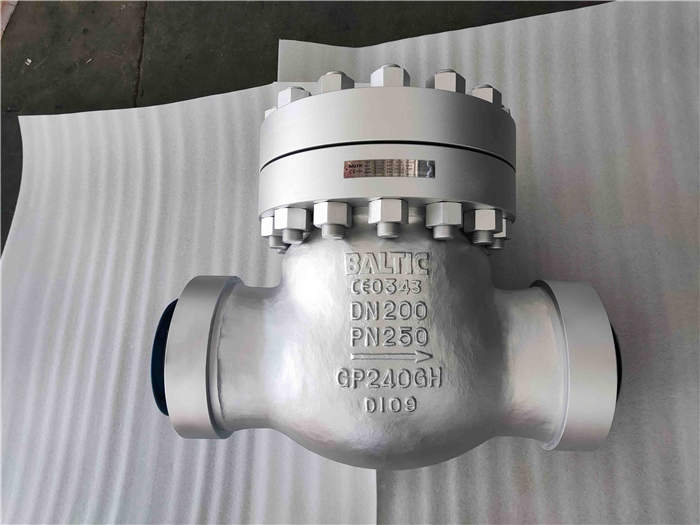

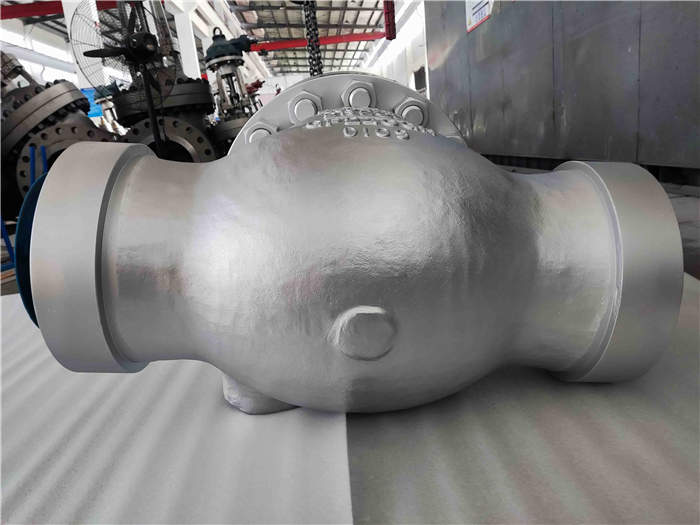

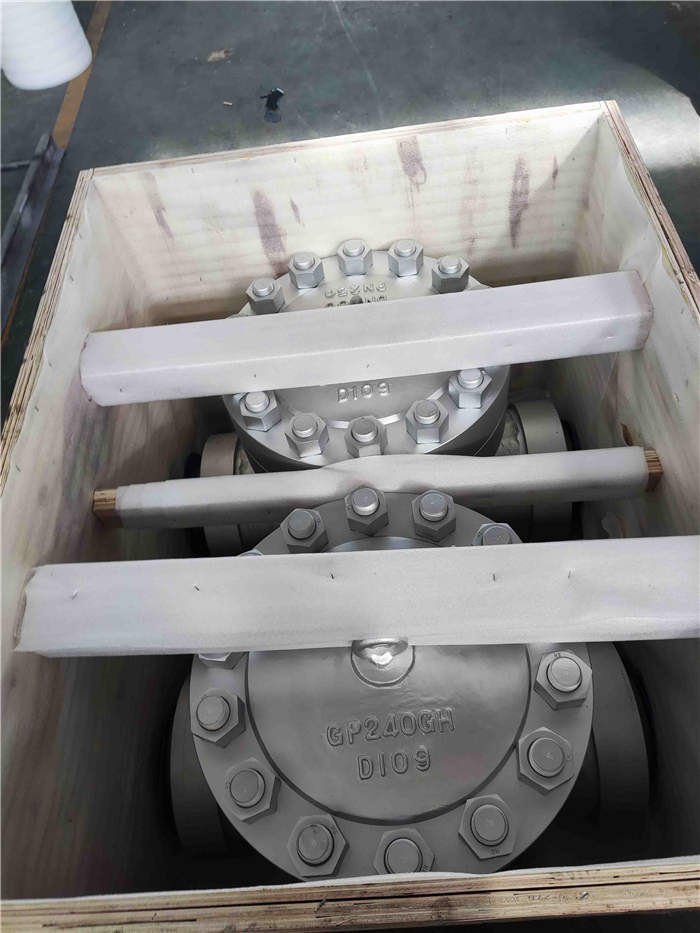

Kindly, please find attached valve pictures. Welcome your inquiries!

BALTIC VALVE CO., LTD
DATED MARCH 21, 2022
