• Forged C95500, C95800 Aluminum Bronze Valves
Forged C95500, C95800 Aluminum Bronze Valves

Forged C95500, C95800 Aluminum Bronze Valves

  • 03 21, 2022
We are going to show you the forged Aluminum Bronze valves which are different from the casting valves. Forged C95500 and C95800 valves have the same structure with casting C95500 and C95800 valves. The whole bronze block is machined for forgings. They are solid, while the castings are hollow inside. Forged valves have the advantages of having no sand holes, better quality, longer service life and safer application.

Product descriptions
API 602 Gate Valve with hand wheel operated
***OS&Y, BB, BG, rising stem
***Solid wedge, reduce bore
***with backseat

***Ends Connection: threaded ends - F.NPT as per ASME B1.20.1
***Face to face dimension: as per manufacture standard
***Testing & Inspection: API 598

***Body: ASTM B148 C95500/C95800 (forged material)
***Trim：ASTM B148 C95500/C95800 (forged material)

Item 1)  1/2inch - 800 lb
Item 2)  3/4inch - 800 lb
Item 3)  1inch - 800 lb
Item 4)  1.1/4inch - 800 lb
Item 5)  1.1/2inch - 800 lb
Item 6)  2inch - 800 lb
Item 7)  2.1/2inch - 800 lb

We have both forged materials C95500/C95800 and casting materials C95500/C95800. If you are interested in aluminum bronze valves, pls freely contact us via email: [email protected]

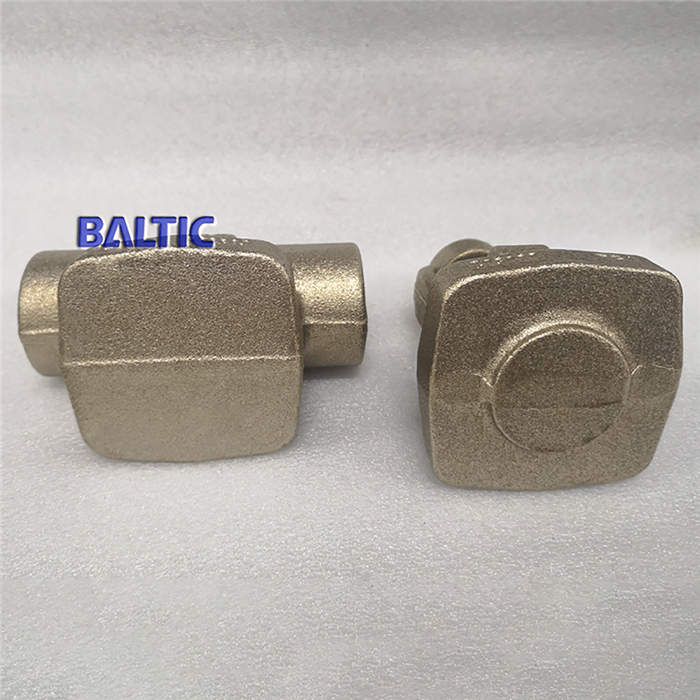

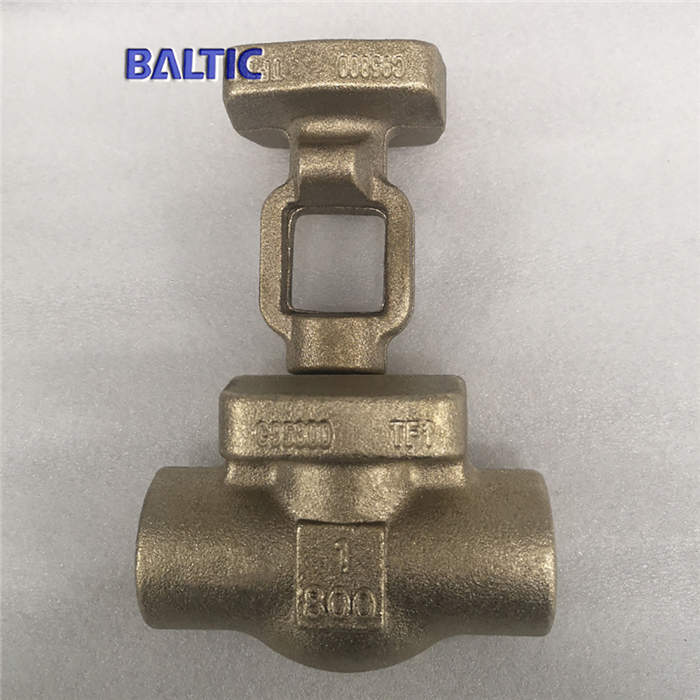

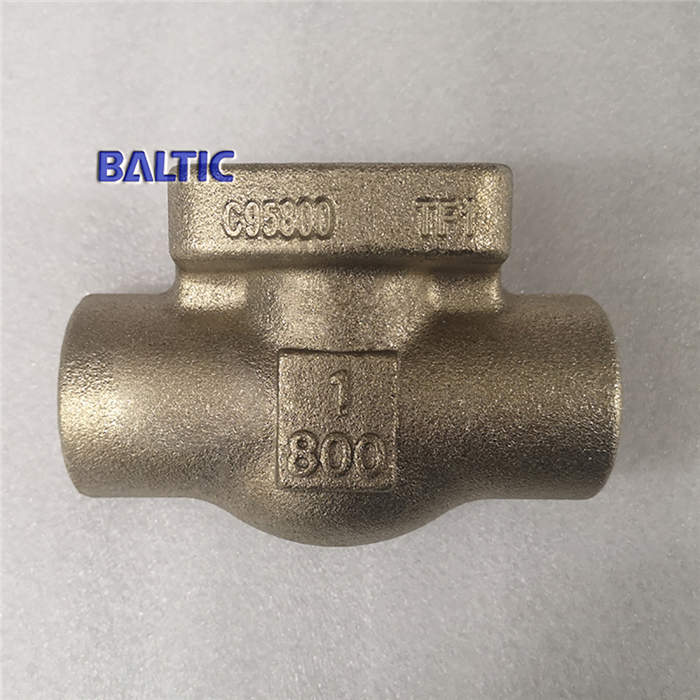

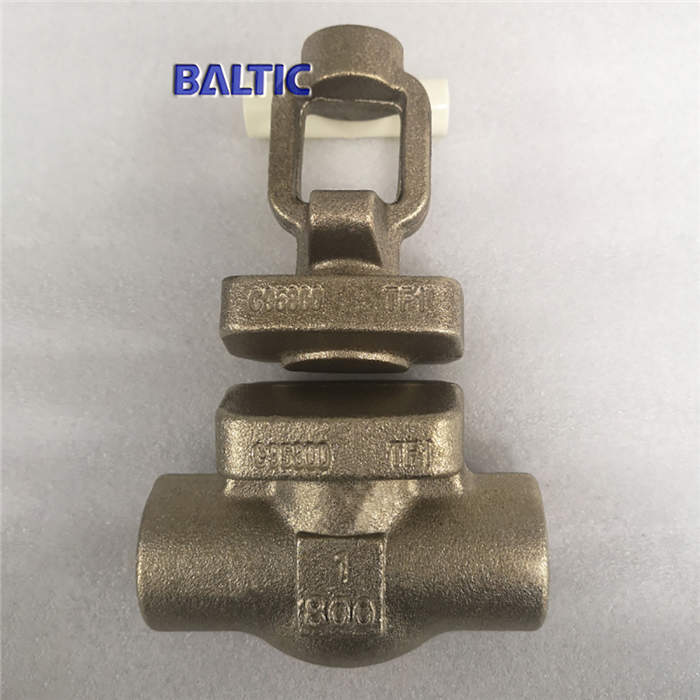

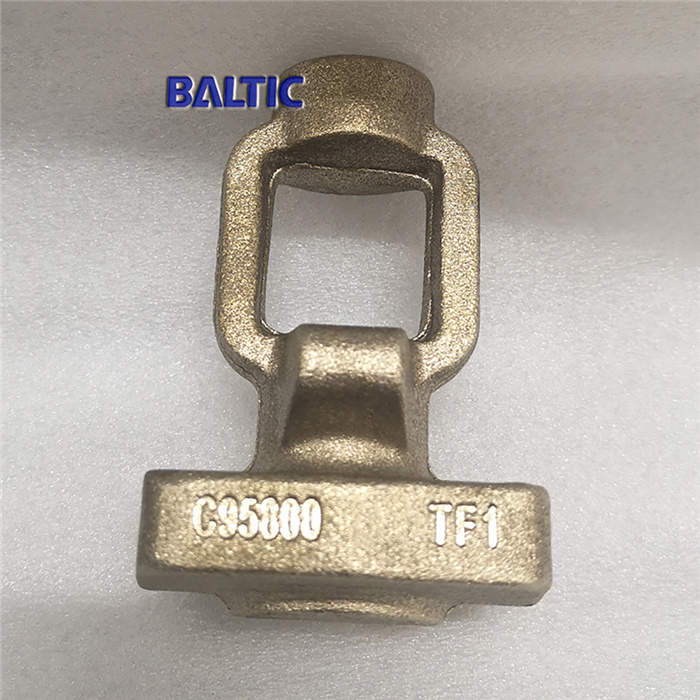

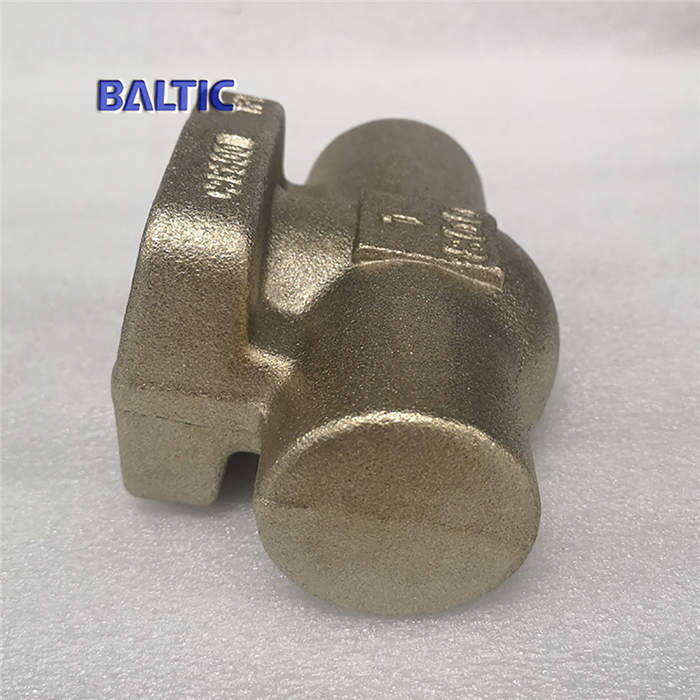

Kindly, please find the attached forging pictures.

BALTIC VALVE CO., LTD
March 21, 2022
