Extra High Pressure Y-type Globe Valves

11 16, 2021

Recently, we received many inquiries concerning high-pressure Y-type globe valves and produced some valves of such structure. Today, we will some high-pressure Y-type globe valves with you.

DESCRIPTIONS
Y pattern high-pressure globe valve
***Design: API 602
***rising stem

***Body/bonnet: ASTM A182 F22
***Trim: 5#

***End connection: BW as per ASME B16.25
***Face to face dimension: manufacturer's std

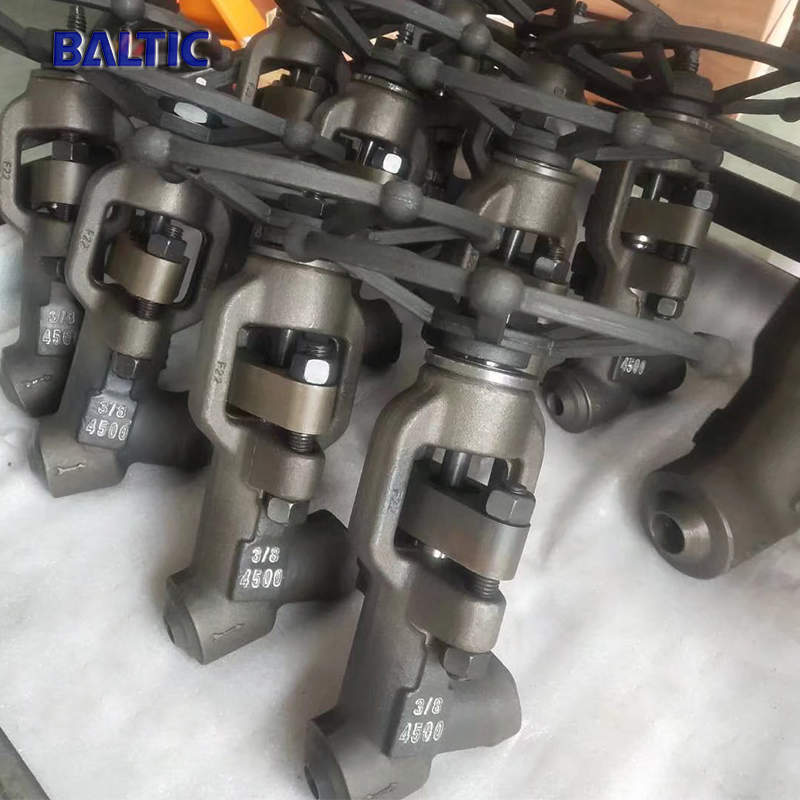

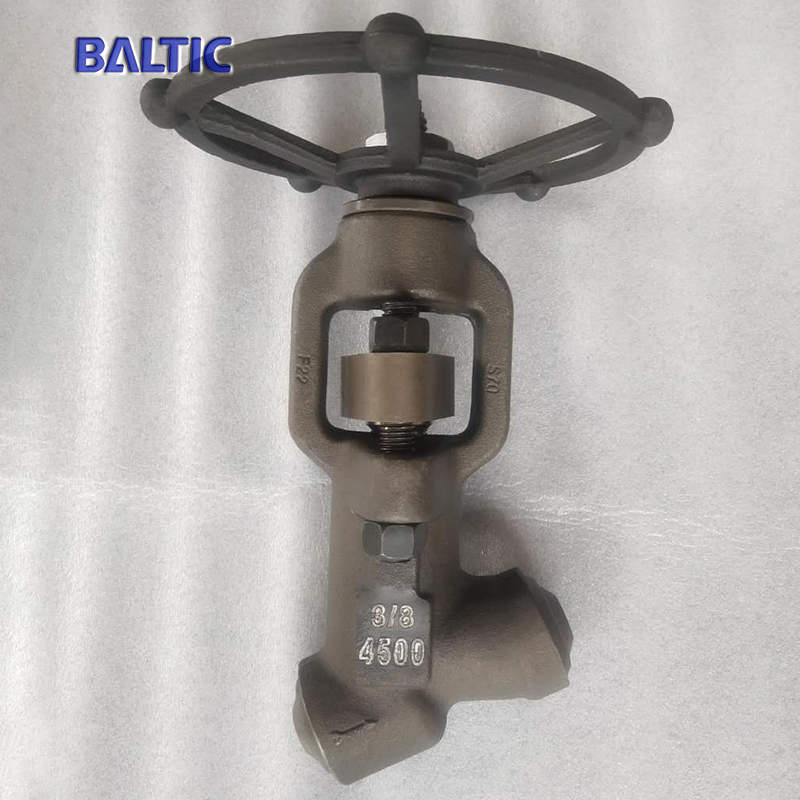

Item 1) 3/8" - 4500LB     pressure seal bonnet, with hand wheel

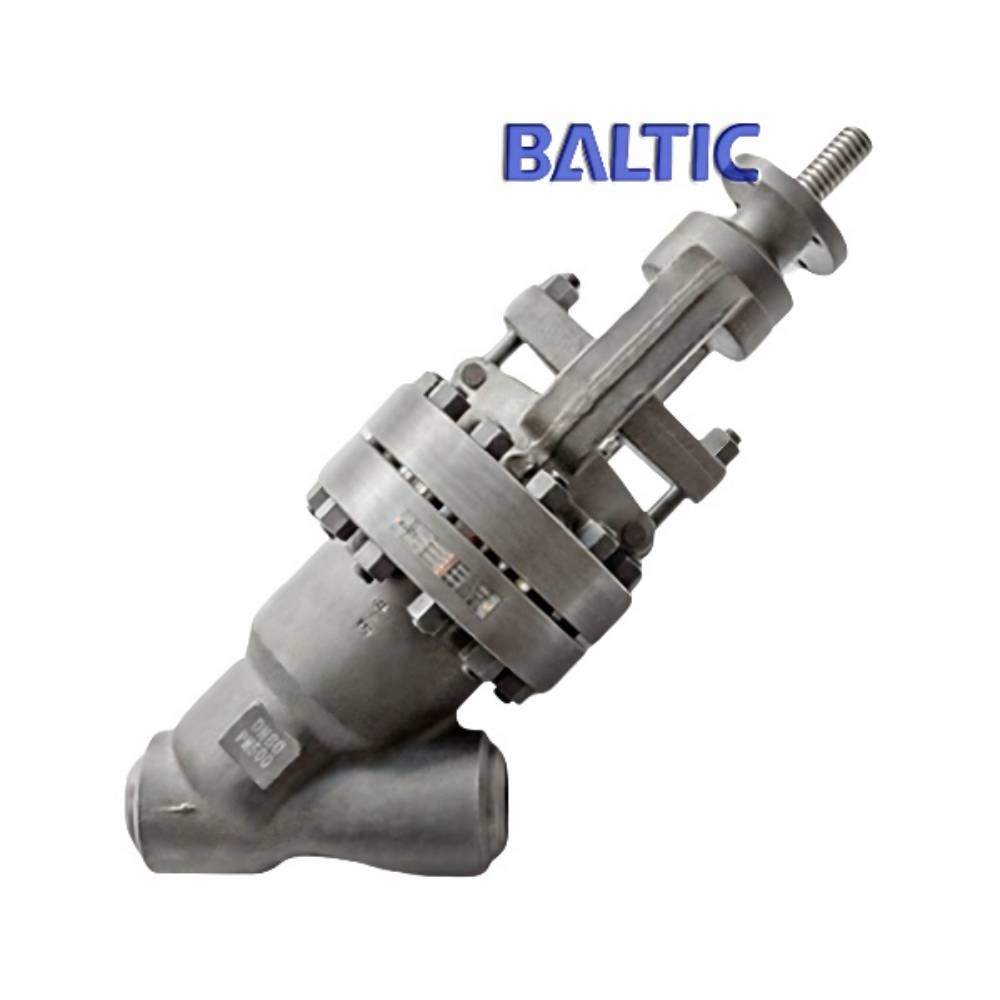

Item 2) DN80 - PN500    bolted bonnet, with bare stem for actuator
------------------------------------------------------------------------------------------------------------
Y pattern high-pressure globe valve
***Design: API 602
***Welded bonnet, rising stem
***Operated: bare stem + ISO top flange for later on mounting AUMA actuator

***Body/bonnet: ASTM A105N
***Trim: 5#

***End connection: BW as per ASME B16.25
***Face to face dimension: according to the manufacturer's standard

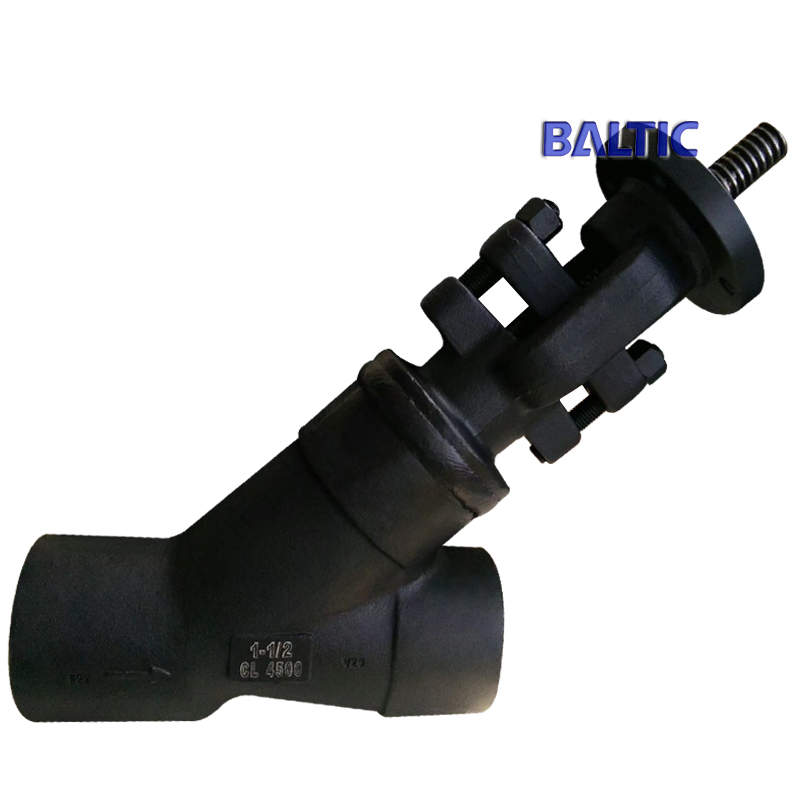

Item 3) 1.1/2" - 4500LB
------------------------------------------------------------------------------------------------------------
Y pattern high-pressure globe valve
***Design: API 602
***Pressure seal bonnet, rising stem
***Operated: gearbox + hand wheel

***Body/bonnet: ASTM A182 F304
***Trim: 16#

***End connection: RTJ flange ends as per ASME B16.5
***Face to face dimension: ASME B16.10

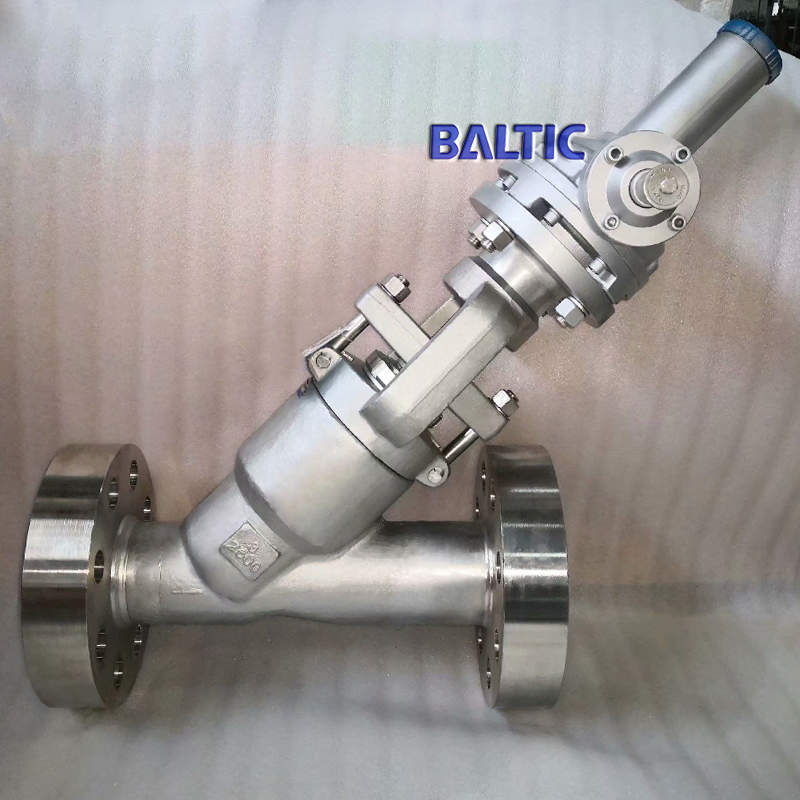

Item 4) 3" - 2500LB
If you are interested in the above valves, pls freely contact us via email: [email protected]

BALTIC VALVE CO., LTD
DATED November 16th, 2021
