Baltic Valve Co., Ltd. proudly presents the EN13709 Angle Globe Valve, expertly crafted for precision flow control and reliability in demanding industrial applications. This valve is designed with a focus on robust construction, efficient operation, and adherence to international standards, making it an ideal solution for systems requiring durable, leak-free performance.

Product Highlights

The EN13709 Angle Globe Valve is designed with a convenient handwheel for smooth operation, featuring an OS&Y (Outside Stem and Yoke) construction for added reliability and a bolted bonnet (BB) with a rising stem for precise regulation. The valve also includes a back seat, providing an additional layer of sealing to minimize leaks and enhance operational safety.

Technical Specifications

End Connections

Complies with EN 1092-1 / B1 standards, ensuring reliable and secure connections.

Face-to-Face Dimensions

Built to EN558/Row 1 (DIN 3202 F1) specifications, facilitating compatibility with standard piping systems and easy installation.

Testing and Inspection

Each valve undergoes rigorous testing according to EN 12266-1 standards, meeting Leakage Rate A requirements for exceptional leak prevention and long-term reliability.

Material Composition

Body/Bonnet

Constructed from 1.4408 stainless steel, comparable to ASTM A351 CF8M, offering excellent resistance to corrosion and mechanical stress.

Trim

Made from AISI 316 stainless steel, renowned for its resilience in harsh environments and its capacity to maintain integrity under high pressure.

Specifications Overview

Size: DN100

Pressure Rating: PN40

For detailed technical drawings and images, please see the attachments or reach out to Baltic Valve Co., Ltd. at [email protected]. We look forward to assisting you with your valve needs and providing additional product information upon request.


BALTIC VALVE CO., LTD

DATED Oct. 28th, 2024

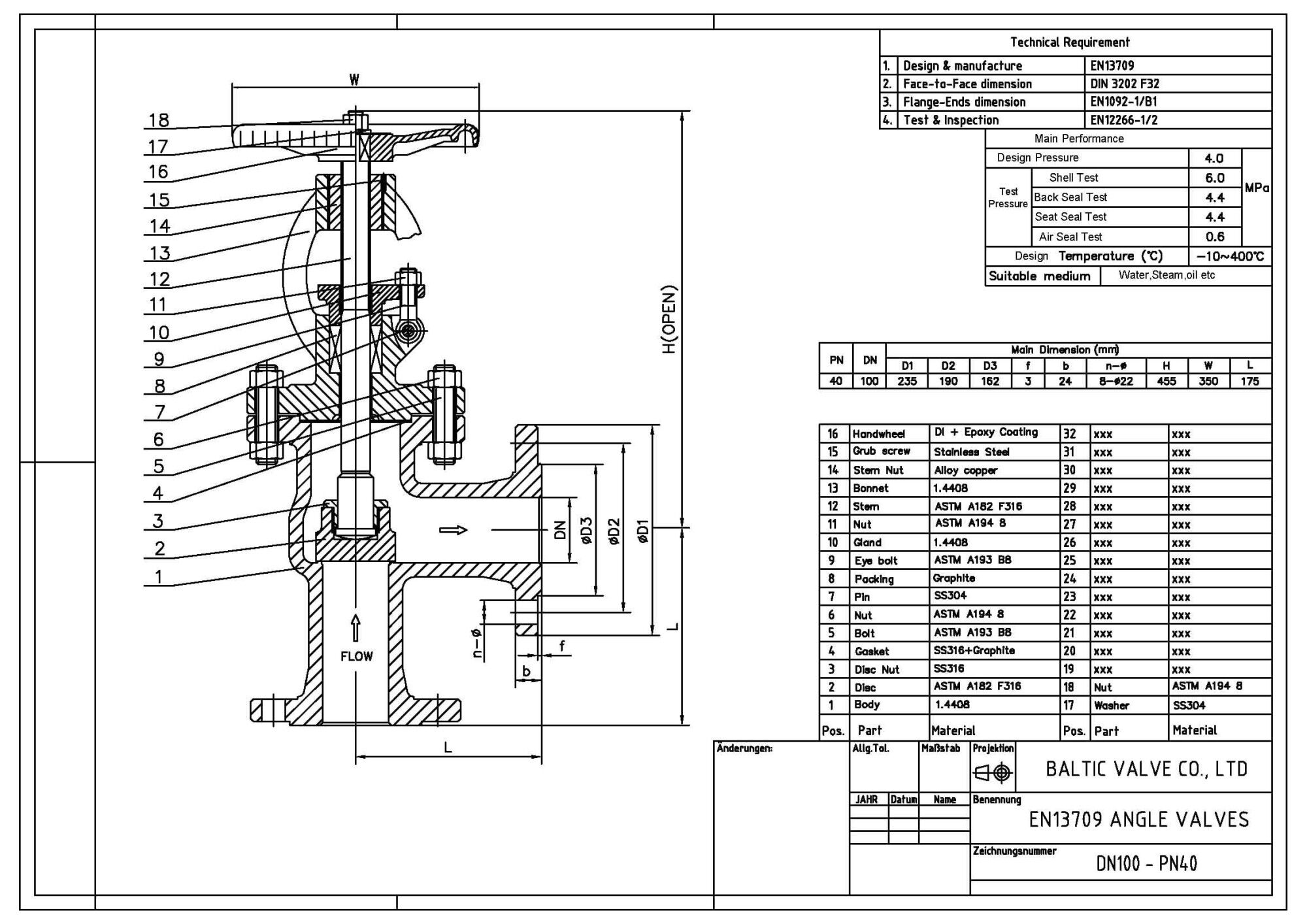

Technical Drawing for Angle Globe Valve

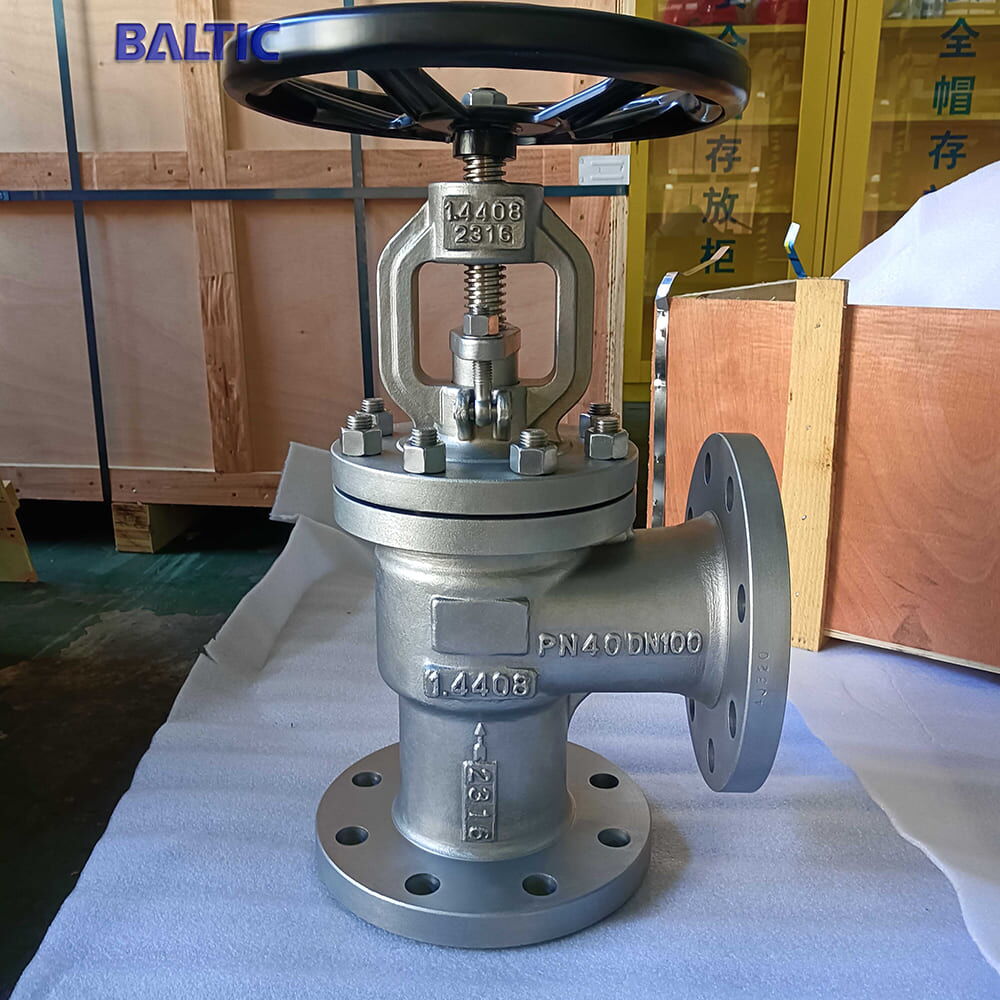

PN40 DN100 Angle Globe Valve
