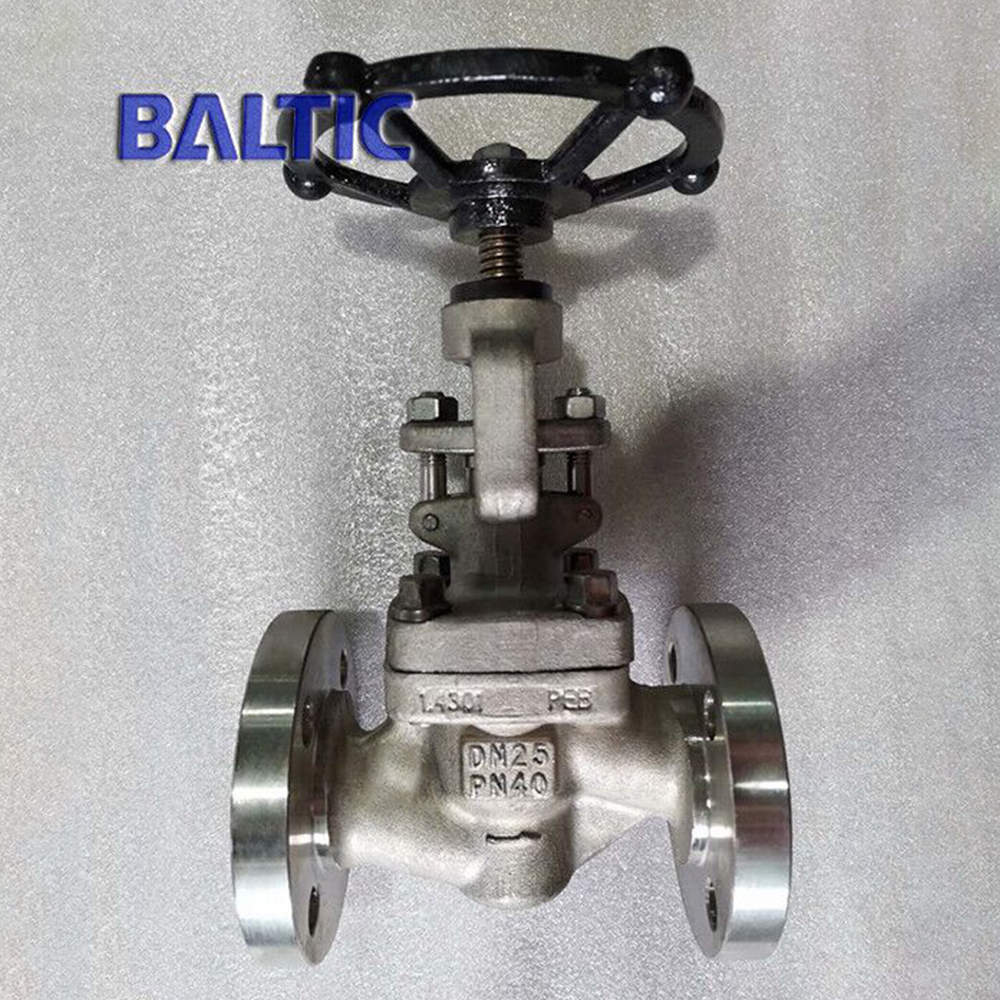

DIN Small Size Globe Valve in Forging Materials

Are you searching for DIN small size globe valve in S type? Look over here!
In this text, let me introduce full bore DIN globe valve below DN50 (including) in forging materials produced by us to you.

A. Full bore globe valve below PN40 (including).
Valve type: Globe Valve.
Design: DIN 3356, EN 13709.
Pressure: PN16, PN25, PN40.
Bore: FULL bore.
Size: DN15, DN20, DN25, DN40, DN50.

Body material: 1.0460 (A105), 1.4301, F304, F316(L), F321(H), etc.
Connection ends: Integral flange, SW, BW, F-NPT.
Face to face dimension: EN 558-1/Line 1.

B. Reduced bore globe valve below PN160 (including).
Valve type: Globe Valve.
Design: DIN 3356, EN 13709.
Pressure: PN63, PN100, PN160.
Bore: REDUCE bore
Size: DN15, DN20, DN25, DN40, DN50.

Body material: 1.0460 (A105), 1.4301, F304, F316(L), F321(H), etc.
Connection ends: Only can be SW, BW, F-NPT.
Face to face dimension: EN 558-1/Line 1.

We have the mould for all above mentioned valves.
If you are interested in above products, pls freely contact us via email: [email protected].

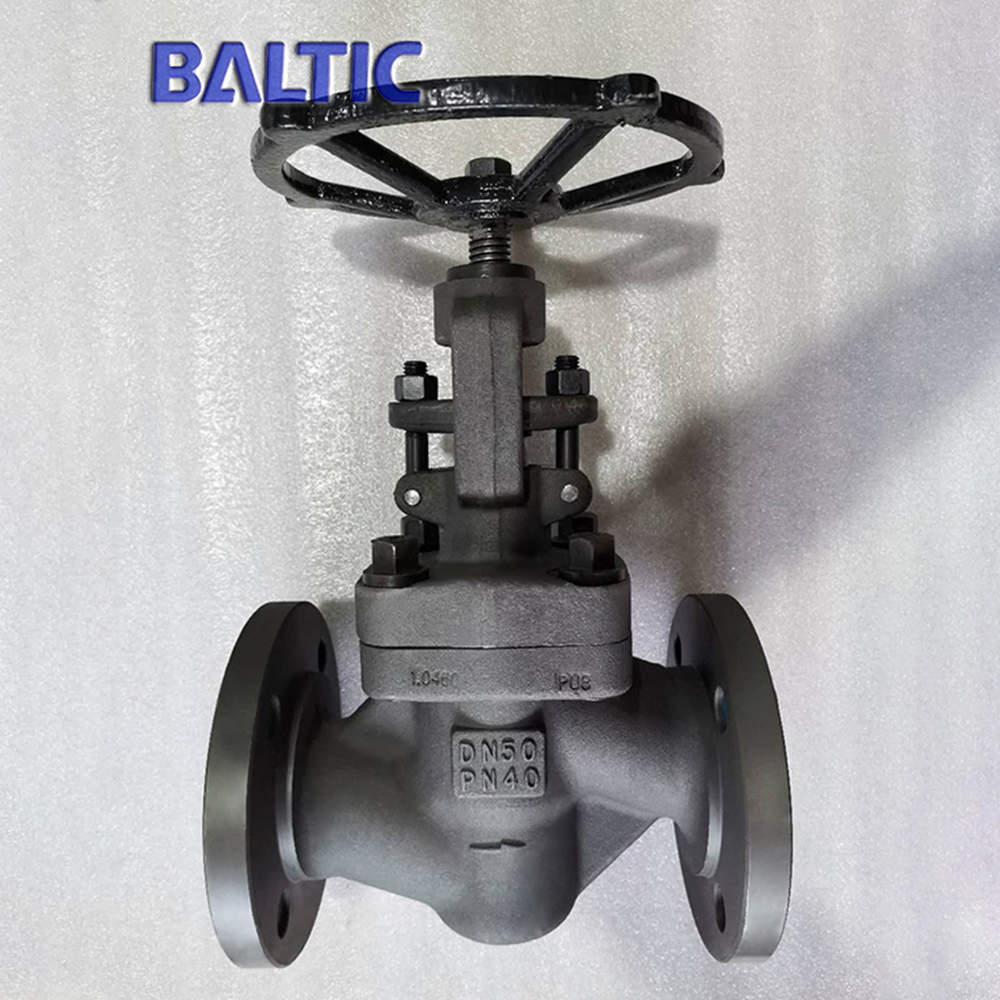

The Full Bore Globe Valve

The Full Bore Globe Valve

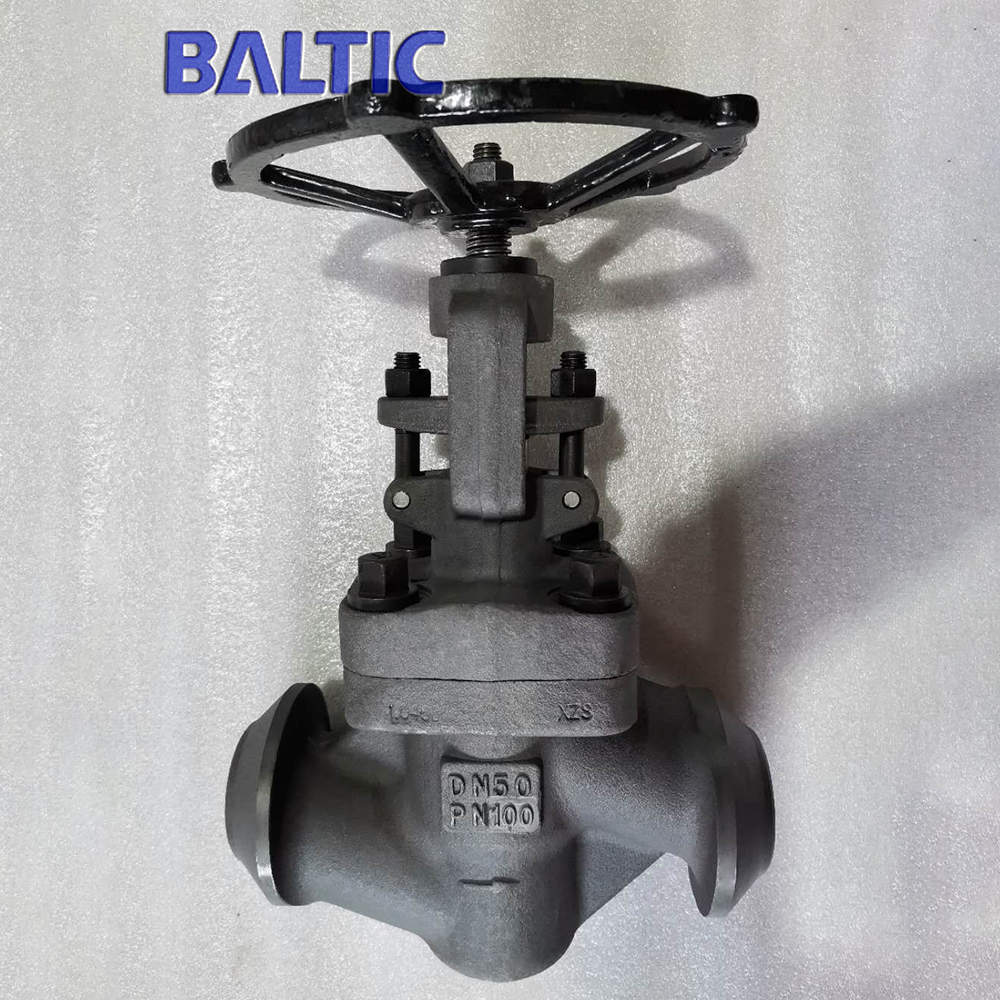

The Reduced Bore Globe Valve
