DIN / EN Gate Valve for Sea Water and Liquid Saline, Special Material

Product Description:
We are excited to introduce our latest EN1984 Gate Valve, designed for use with sea water and liquid saline. This valve features a hand wheel operation and is constructed to ensure reliable performance in demanding environments. Key features include:

OS&Y Design: Outside Screw and Yoke for easy maintenance.
BB Construction: Bolted Bonnet for secure sealing.
Flexible Wedge: Ensures a tight seal and durability.
Full Port Design: Maximizes flow efficiency.

Connection and Dimensions:

Ends Connection: Flanged ends conforming to EN1092-1/B2 standards.
Face to Face Dimension: Compliant with EN558-1, line 26.

Material Specifications:

Body Material: ASTM A995 4A (Duplex Steel) for superior corrosion resistance.
Trim Material: ASTM A182 F51 for enhanced strength and durability.
Body Seat: Stellite (STL) for extended service life.

Operational Parameters:

Medium: Suitable for high-temperature liquid saline.
Working Temperature: Up to +50°C.
Maximum Working Pressure: 100 bar.

Available Size:

Item 1: PN100 DN80, Length = 310 mm.

For inquiries or to place an order, please contact us at: [email protected].

Attachments included:

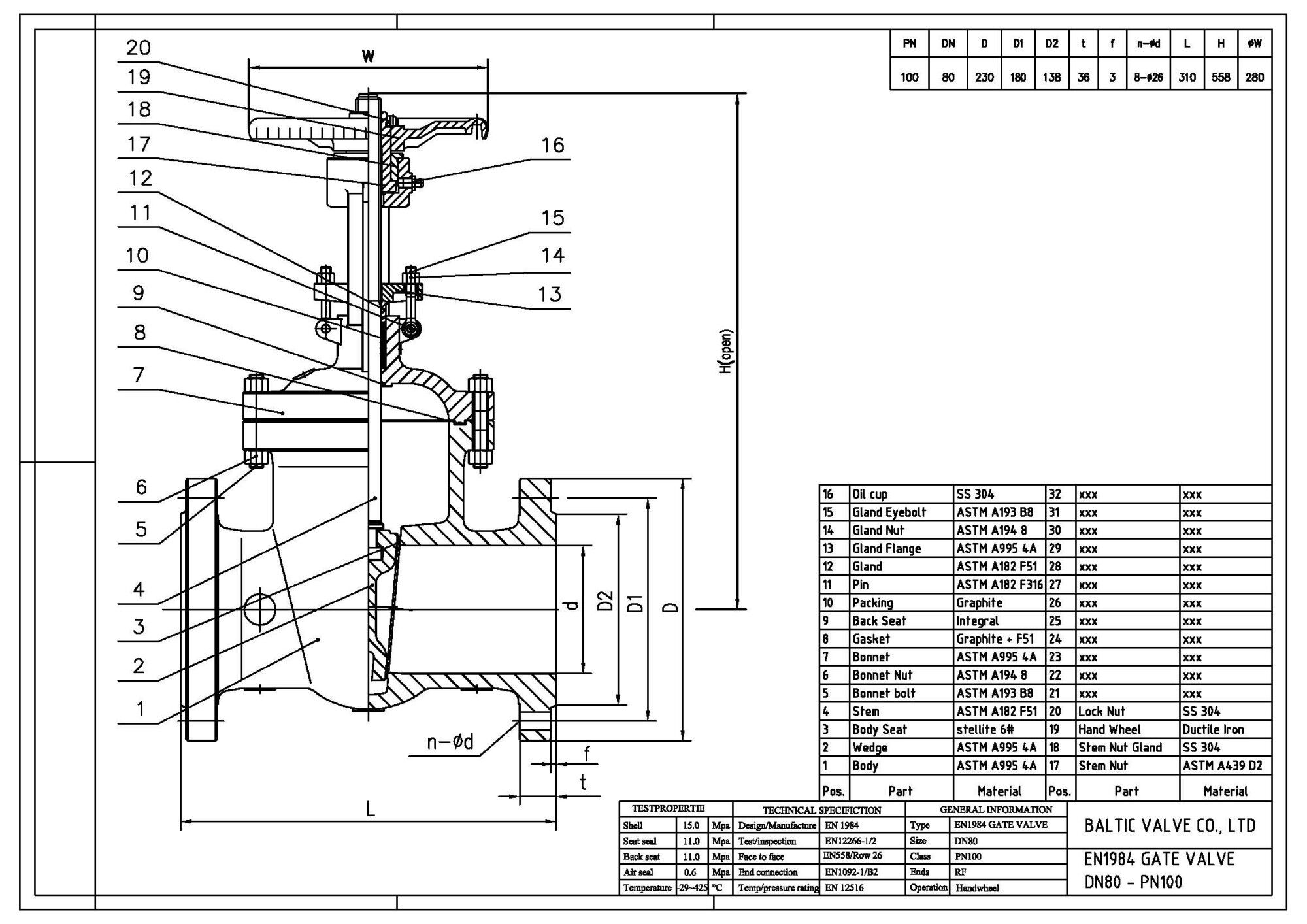

General Arrangement (GA) Drawings
Valve Photographs


BALTIC VALVE CO., LTD
Date: May 30, 2024
