Delivery of High-Performance Butterfly Valves to South America

09 04, 2024

On this page

Baltic Valve Co., Ltd, a leading manufacturer of high-performance valve solutions, has successfully delivered a substantial shipment of large-size butterfly valves to a major client in South America. This significant delivery marks a noteworthy achievement in our commitment to providing top-tier valve products globally.

Product Overview

The delivered butterfly valves are engineered for high performance, featuring a double eccentric design that ensures optimal sealing and longevity. The LUG type configuration of these valves is designed for robust and reliable operation in demanding applications.

Technical Specifications

Design and Standards

The valves adhere to API 609 standards, with RF facing compliant with ASME B16.5 specifications. They have undergone rigorous testing and inspection per API 598, achieving a tight A rating for leak-proof performance.

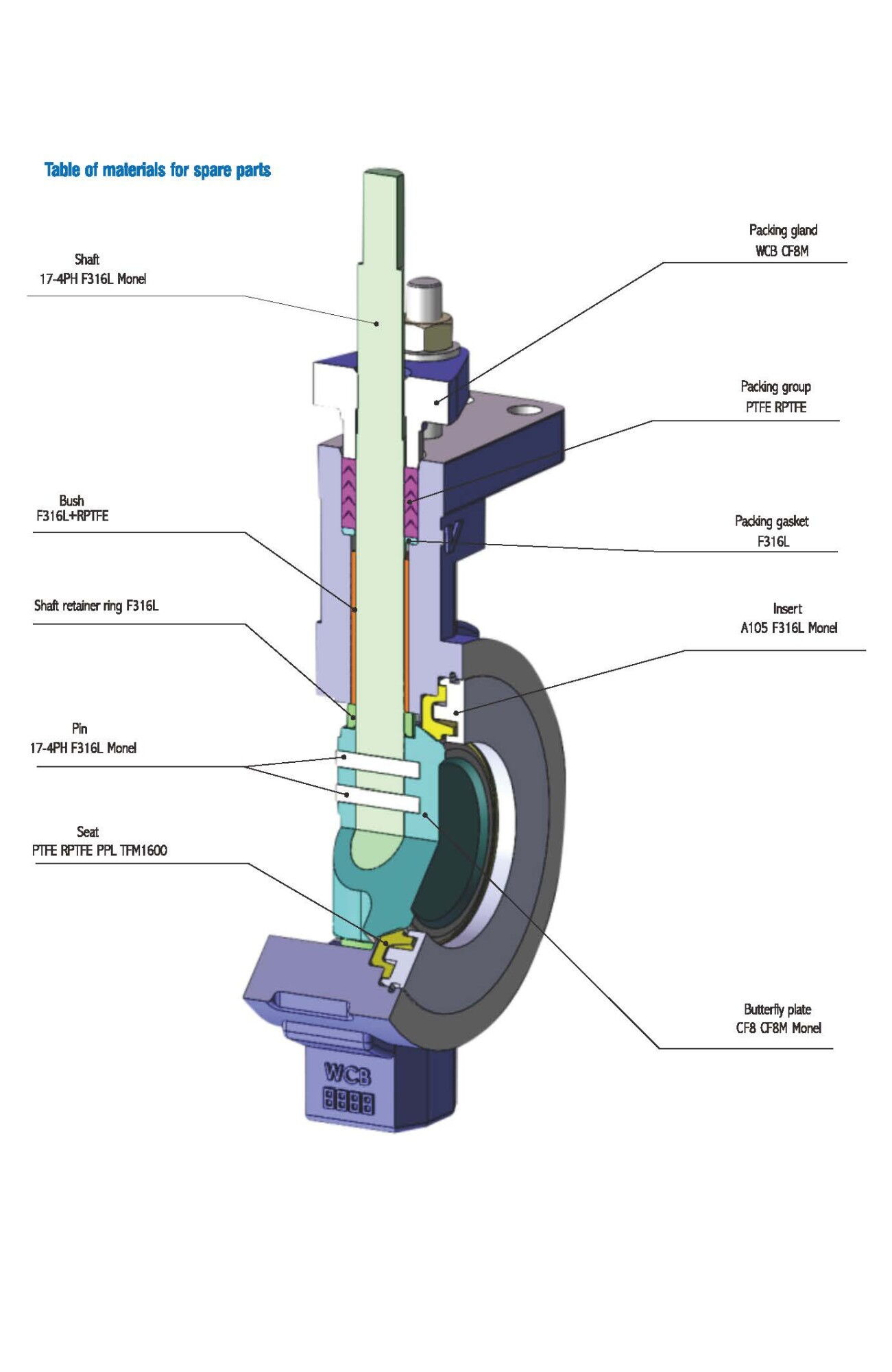

Materials

Body

Constructed from Steel ASTM A351 CF8M, known for its excellent corrosion resistance and durability.

Disc

Made from SS 316 Stainless Steel (CF8M) to ensure high strength and resistance to harsh environments.

Stem

Maded from Duplex Steel ASTM A182 F51, providing enhanced strength and resistance to corrosion compared to standard F316 stems.

Seat

Reinforced Teflon (RPTFE) seat material guarantees superior sealing capabilities and chemical resistance.

Additional Features

Mounting Bracket

Stainless Steel 304 bracket is included for mounting the gearbox.

Operation

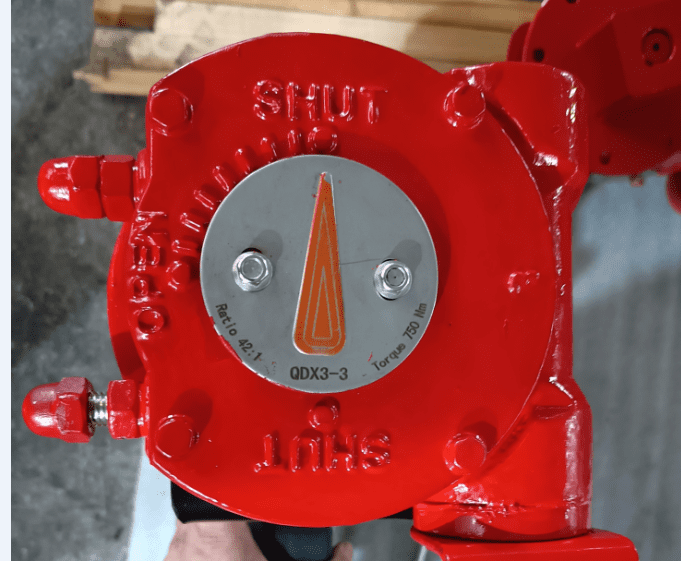

The valves are equipped with a manual gear operator and handwheel, along with a position indicator. To withstand environmental conditions, an anti-acid paint coating is applied.

The shipment includes three units of the LUG Butterfly Valve, each with a 20-inch diameter and ANSI Class 150 rating, ensuring compatibility with a wide range of industrial systems.

Contact Information

For more details about our high-performance butterfly valves or to make inquiries, please reach out to us via email at [email protected]. We also invite you to review the attached GA drawings and pictures of the butterfly valves for further information.

Baltic Valve Co., Ltd remains dedicated to delivering high-quality valve solutions that meet the rigorous demands of various industrial applications. We look forward to continuing our partnership with clients around the world and supporting their needs with our advanced valve technology.

Kind Regards,

BALTIC VALVE CO., LTD
Date: Sep. 4th, 2024

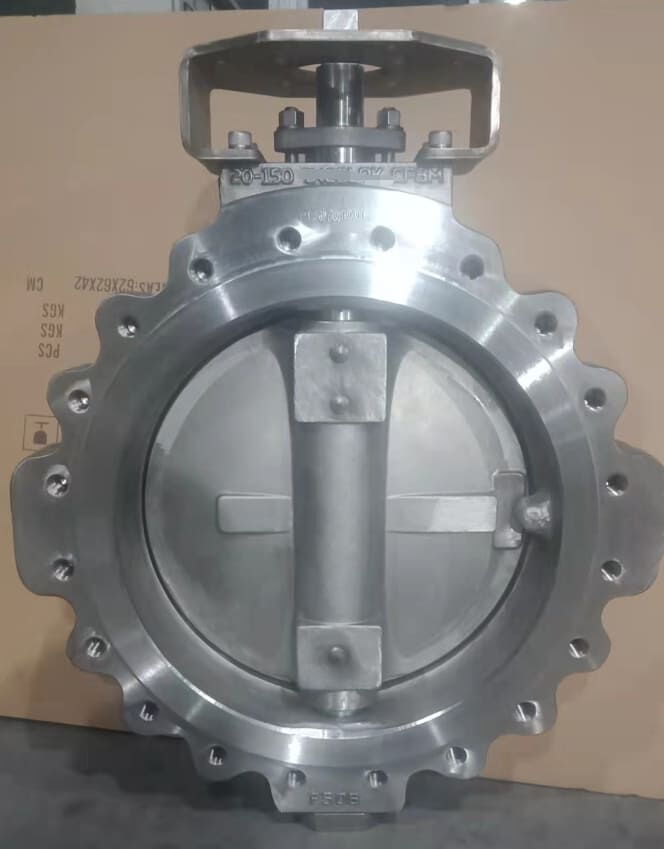

20 Inch, 150 LB, ASTM A351 CF8M

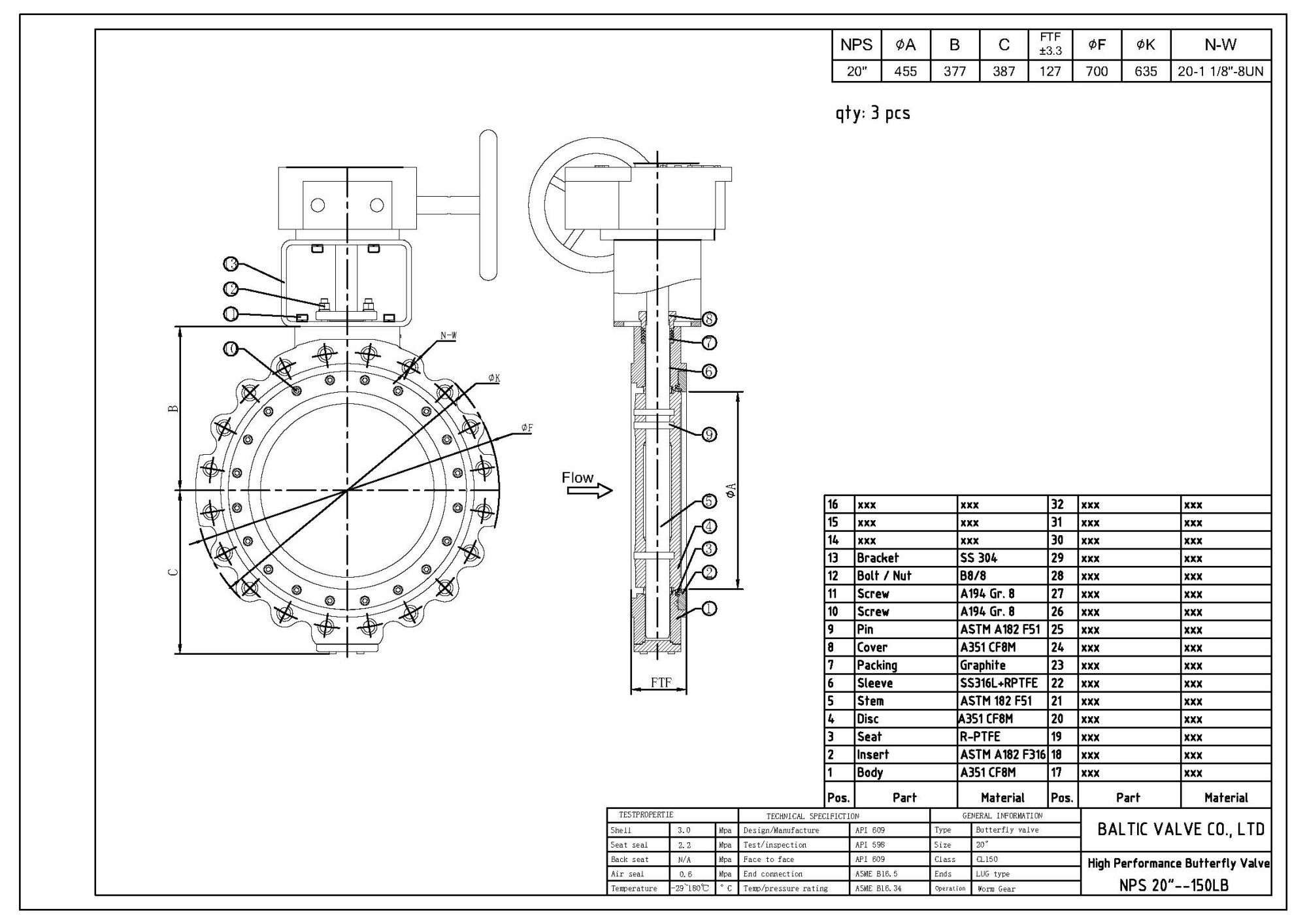

General Assembly (GA) Drawings for Butterfly Valve
