DBB Ball Valves

03 01, 2023

We just delivered some DBB valves to one of our clients in Europe. Some of the valves in Duplex Stainless Steel are in accordance with NORSOK standard M-630. MPT (magnetic particle tests) is done for magnetic materials. This passage includes an item in stainless steel F316L. PT tests are performed for non-magnetic materials.

Descriptions

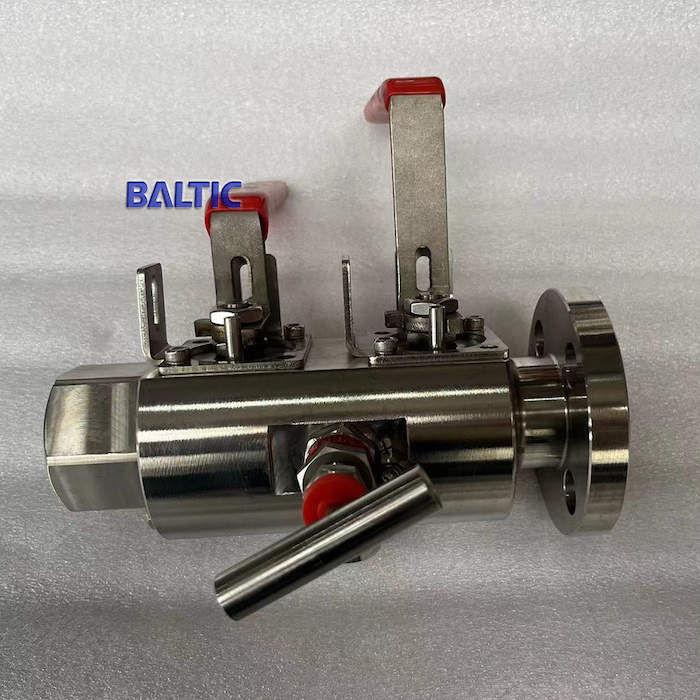

Double block & bleed valve, lever operated
with 1/2" FNPT needle vent valve
Anti blow-out proof stem, anti static device, fire safe design

Valve design: EEMUA 182
End connection: RF flange as per ASME B16.5
               F.NPT as per ASME B1.20.1
Face to face dimension as per manufacturer’s std

Body: ASTM A352 LF2
Stem: S32760
Seat/ball: S32760 + TCC
NACE MR0175
Item 42) 6qty    2 inch - 300 LB    RF X RF

Same with above but material description as below:
Body: ASTM A182 F316L
Stem/ball: ASTM A182 F316
Seat: R.PTFE

Item 71) 11qty 1/2inch - 300 LB   RF X F.NPT

If you are interested in the above valves, pls freely contact us via email: [email protected]
Kindly, please find the attached pictures and GA drawings of the valves.

BALTIC VALVE CO., LTD
DATED February 27, 2023
