Big Size Gate Valves with Bypass


We finished manufacturing gate valves with bypass and delivered them to one of our European clients.

Descriptions of gate valves
API 600 Gate Valve with Gearbox + Hand wheel
OS&Y, bolted gland & bonnet
Flexible wedge, rising stem, backseat
With bypass 1" incl. valve
Bore (seat diameter) as per API600, min. 482mm

Connection flange ends as per ASME B16.5-RF
Face to face as per ASME B16.10, 991mm
Body ASTM A216 WCB
Trim No. 8 (body seat A105 + STL)
Packing graphite
Medium steam
Service parameters 35 to max. 40 bar at max. 400°C

Globe valve with hand wheel (bypass valve)
Design: API602, standard bore
Size 1"
Class 800
Connection socket weld ends as per ASME B16.11
Face to face as per manufacturer standard = 111mm
Material ASTM A105
Trim no. 8 (body seat A105 + STL)
Packing graphite

Item 1)  3qty  20inch - 300LB  L= 991MM

If you are interested in the above valves, pls freely contact us via Email: [email protected]

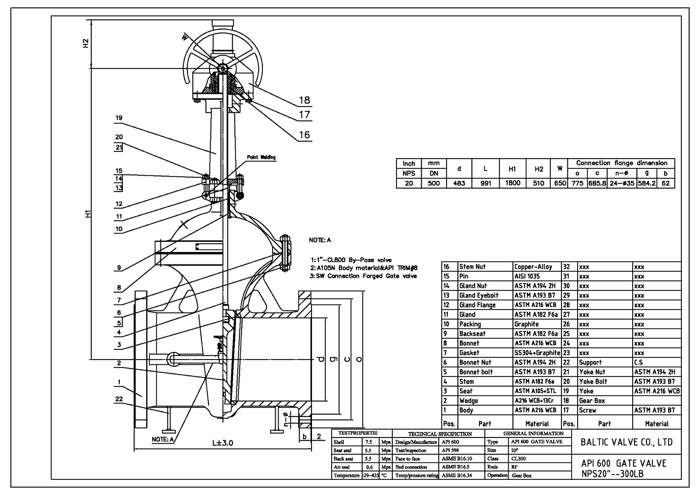

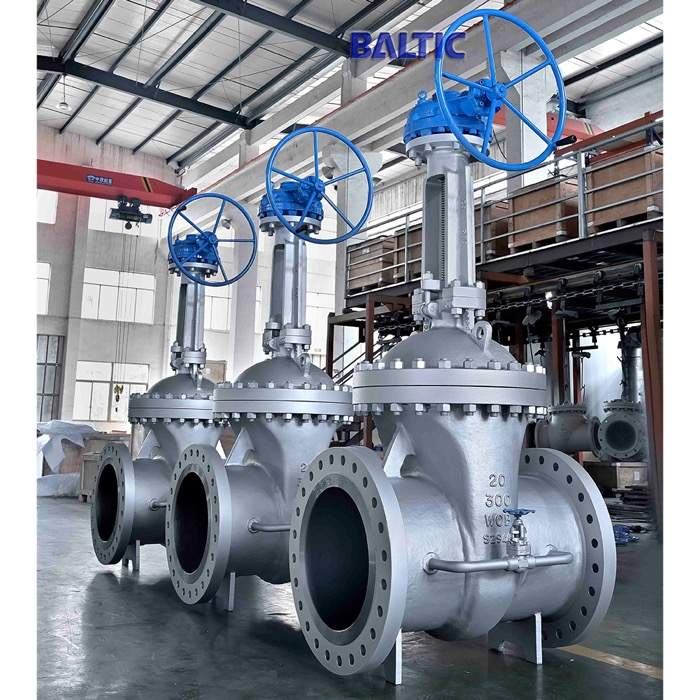

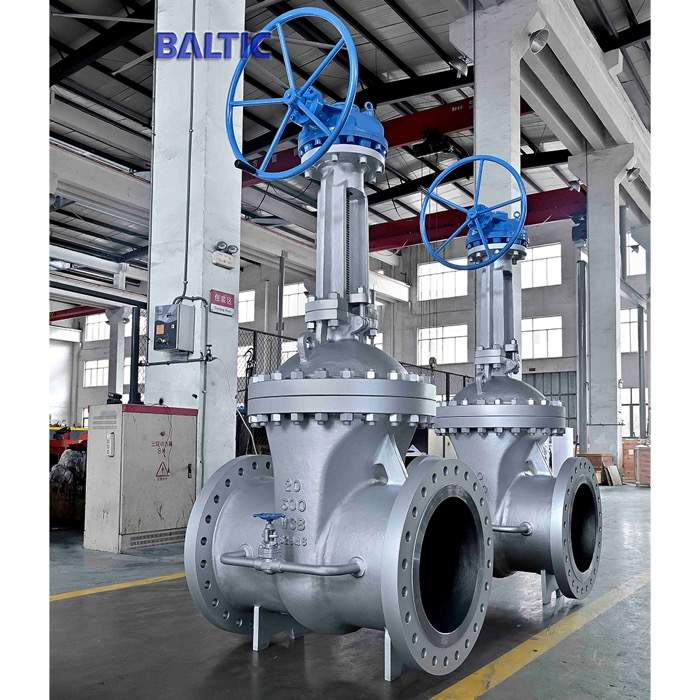

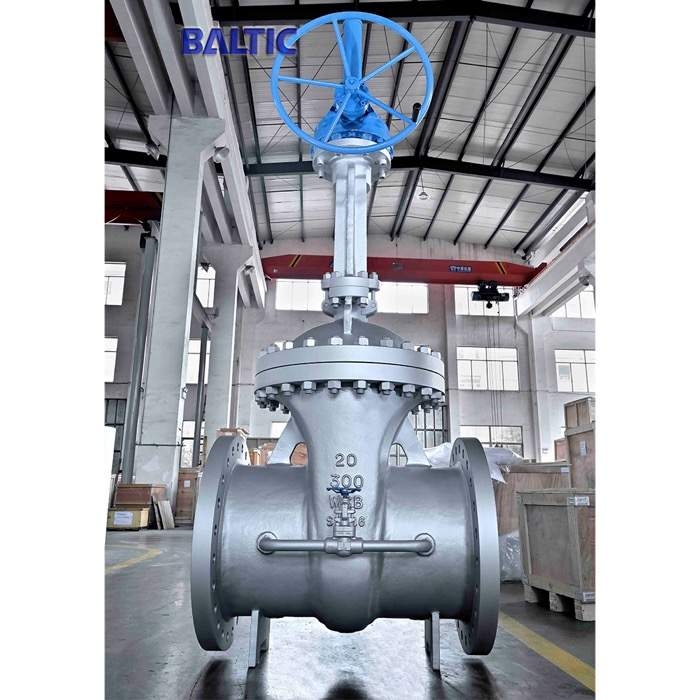

Kindly, please find the attached GA drawing and pictures of the valves.

BALTIC VALVE CO., LTD
DATED November 9, 2022
