Baltic produced big size & high class gate valves to a UK customer
Big size + high class valves:
We are producing big size and high class
gate valves to one of our major customers in UK
The end user is BP/ Basra Oil Company in Iraq.
Product description:
API 600 gate valve with gearbox
O.S.&Y, bolted bonnet
Flexible wedge, full port, with back seat
Connection ends as per ASME B16.5
Face to face dimension as per ASME B16.10
Body/bonnet: ASTM A216 WCB
Wedge: A351 CF8M + stellite
Body seat: A182 F316 + stellite
Stem: A182 F316
Bolts/nuts: B7M + 2HM, with hot dip galvanized
NACE MR0175
Item 2) 4PCS NPS24 – 300 LB

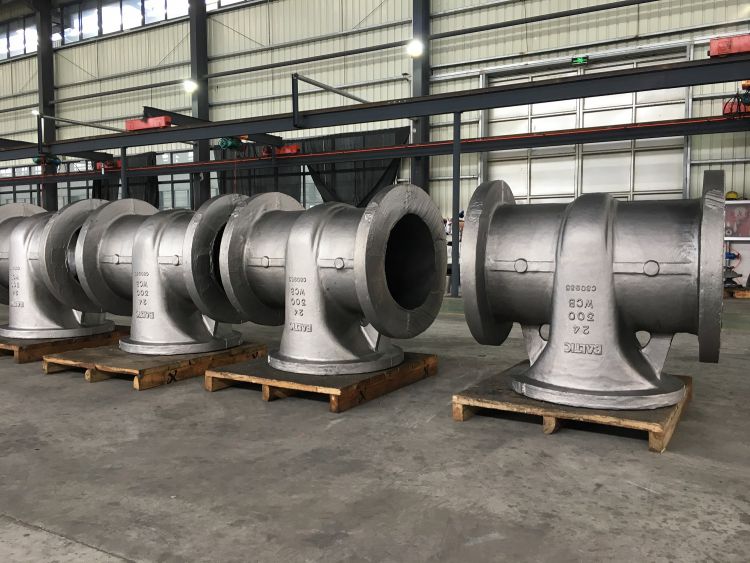

Raw castings:

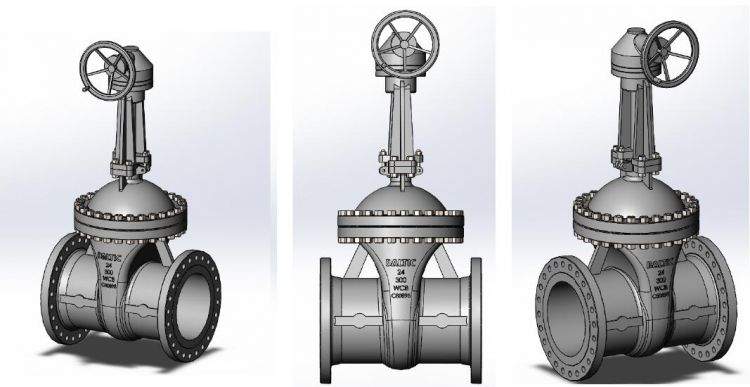

3D sketch:
Item 4) 3PCS NPS6 – 1500 LB

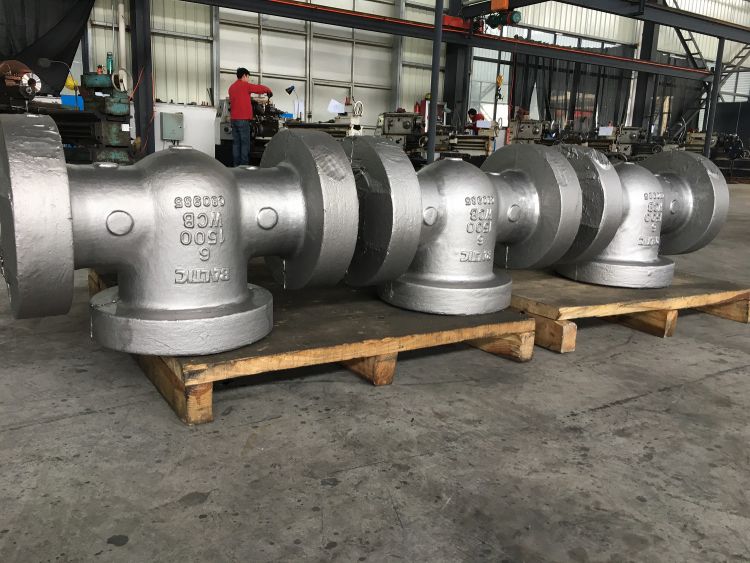

Raw castings:

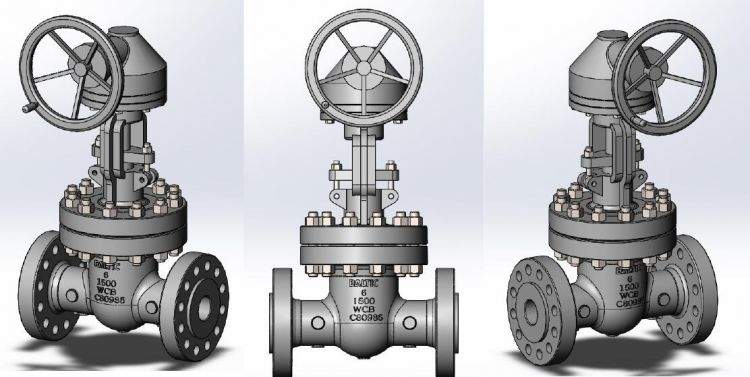

3D sketch:

Kindly, please check the pictures above.
