Baltic delivered stainless DIN ball valves to a European customer
We just delivered some ball valves to one of our European customers (West European).
Those ball valves are stainless steel ball valves, made of forged material, and designed as per DIN std.
Product description:
DIN ball valves, trunnion mounted, double shaft seal, full bore, blow-out shaft, anti-static device.
Connection ends: EN 1092-1 / B2.
Face to face: EN 558-1.
Body / Bonnet Material: ASTM A182 F316.
Ball Material: ASTM A182 F316 (solid ball).
Stem Material: ASTM A182 F51.
Seat Material: DEVLON.
Bolt / Nut Material: A193 B8m / A94 8m - SS 316.
===============================================

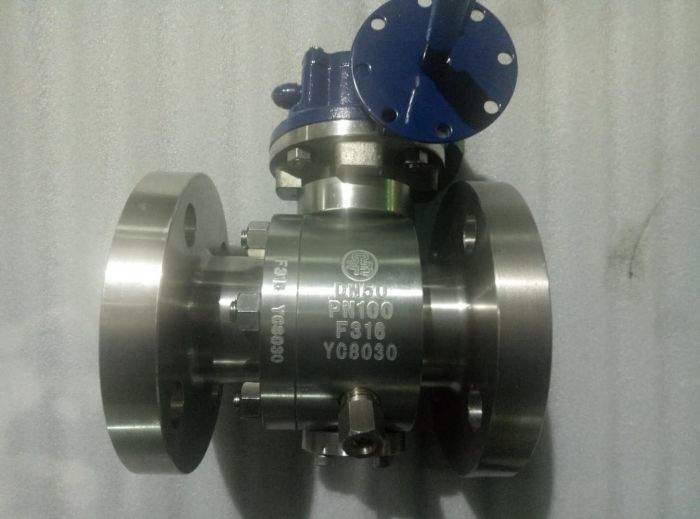

Item 1) 4 qty DN 50 - PN100 with gearbox + locking device
L as per EN558-1/row 1=230 MM
===============================================

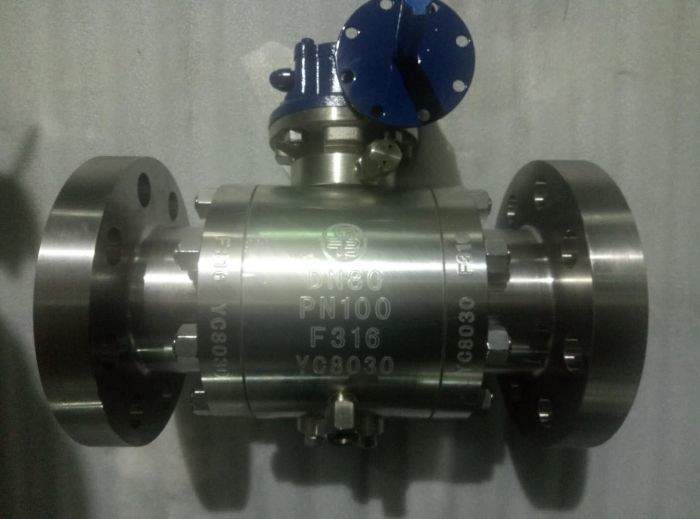

Item 2) 9 qty DN 80 - PN100 with gearbox + locking device
L as per EN558-1/row 2=380 MM
===============================================
Item 3) 10qty DN 80 - PN100 bare stem with ISO top flange 5211-F14
L as per EN558-1/row 2=380 MM
===============================================
Item 4) 6 qty DN150 - PN100 bare stem with ISO top flange 5211-F25
L as per EN558-1/row 2=550 MM
===============================================

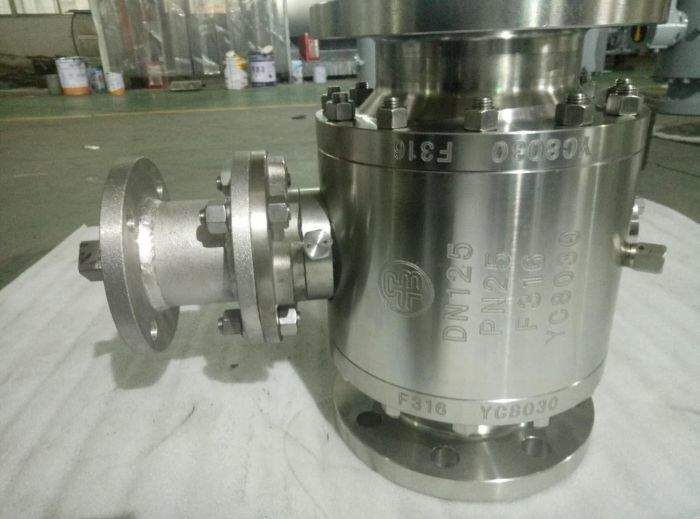

Item 5) 5 qty DN125 - PN 25 bare stem with ISO top flange 5211-F14
L as per EN558-1/row 1=400 MM
===============================================

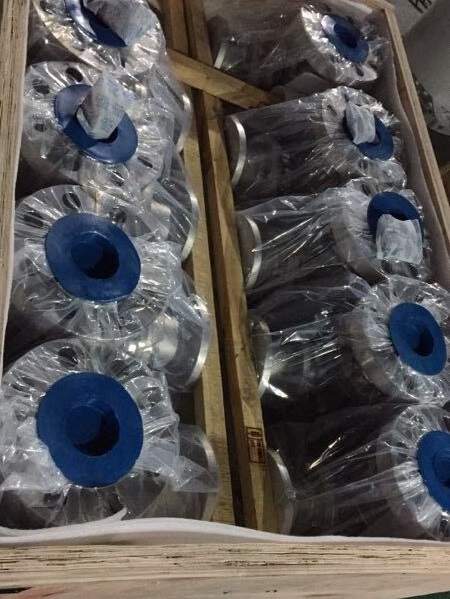

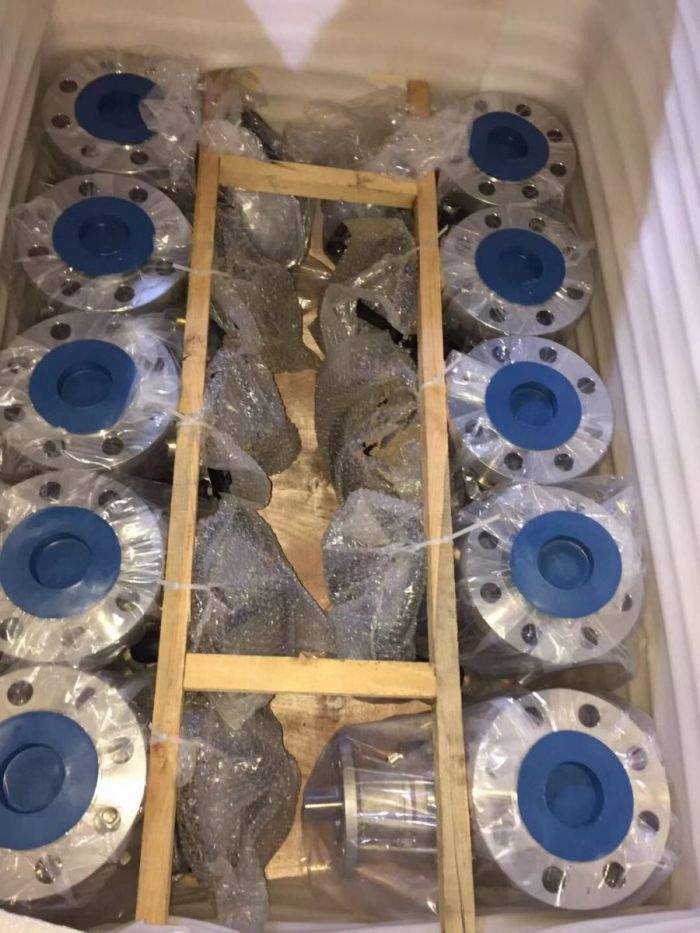

Package after inspection:
