API 6D Ball Valve, Metal Seat, Big Size, for Oil and Natural Gas

We finished and delivered some big size ball valves to BP & Basra Oil Company in Iraq.

Product Description:
Metal Seat Ball Valve, 28 Inch, Class 150 LB, A105N, RF
Design: API 6D
3PC body, Trunnion Mounted, Solid
Ball, Full Bore, Fire Safe Design,
Anti-Static Device,
Blow Out Proof Stem

Materials:
Body: ASTM A105N
Ball: ASTM A182 F316 + TCC
Stem: ASTM A479 Gr.XM-19
Seat: ASTM A182 F316 + TCC
Flexible Graphite Seal
Stud/Nut：B7M/2HM, HDG
As per NACE MR 0175
Connection: RFacc. to ASME B16.5
Face to Face: ASME B16.10 = 1245 MM
Operation: Gearbox

Size: 28 Inch
Class: 150 LB
Qty: 5 PCS

Kindly, please find the following copies of our GA drawing, valve pictures:

GA Drawing

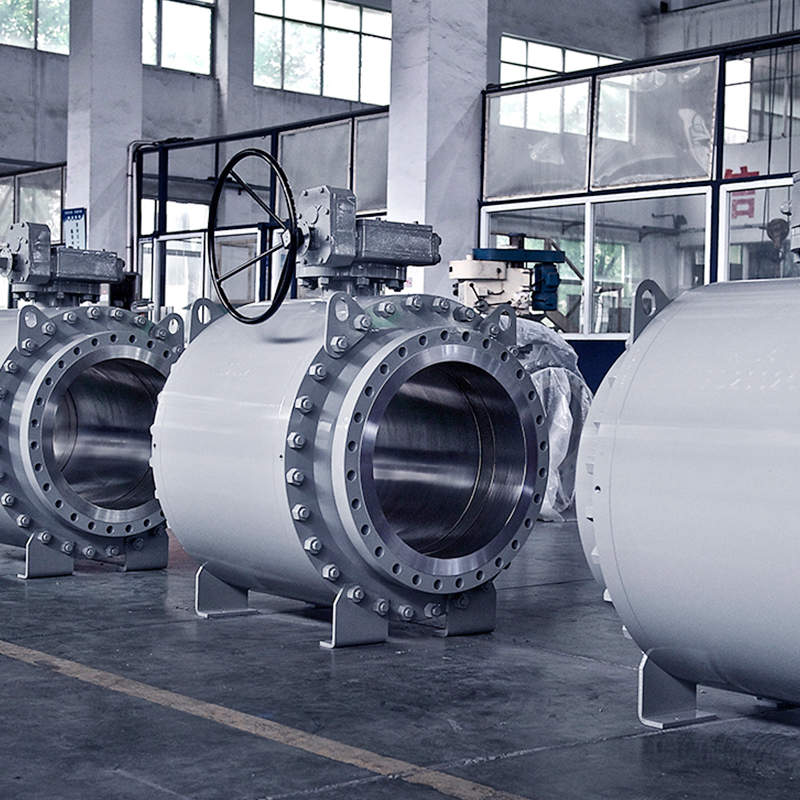

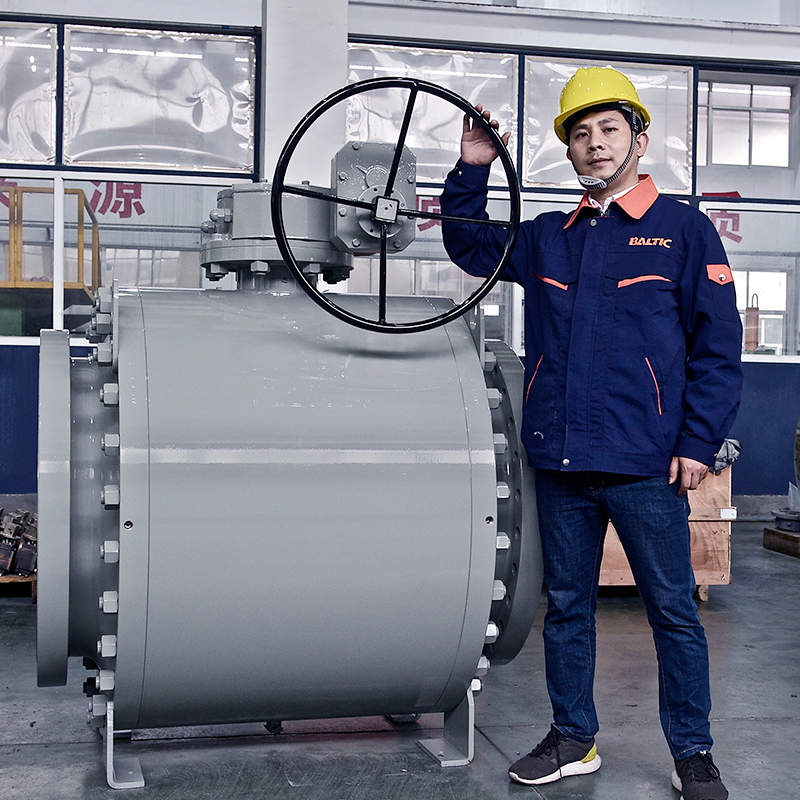

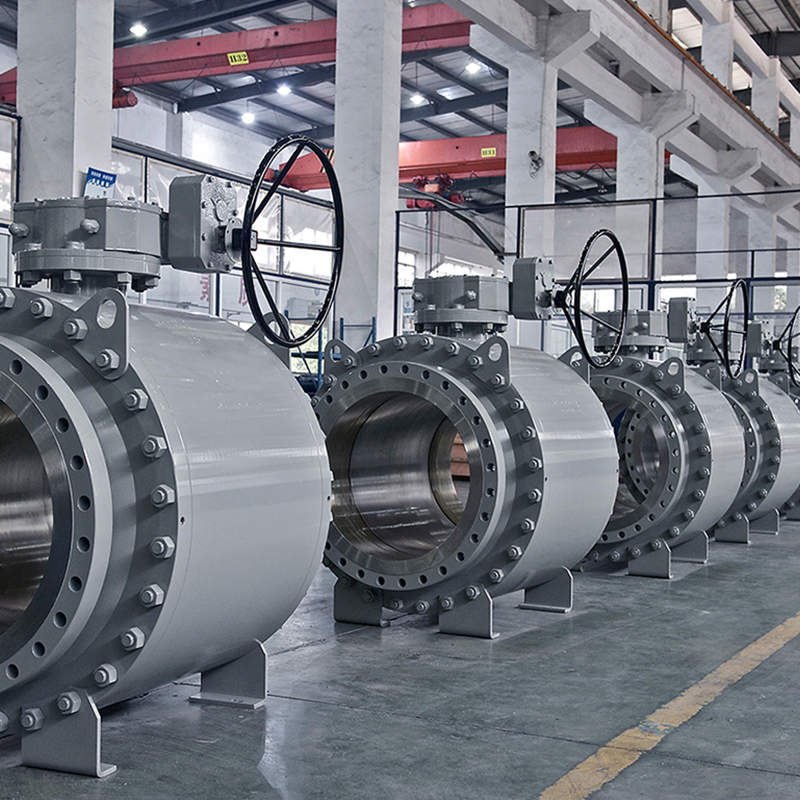

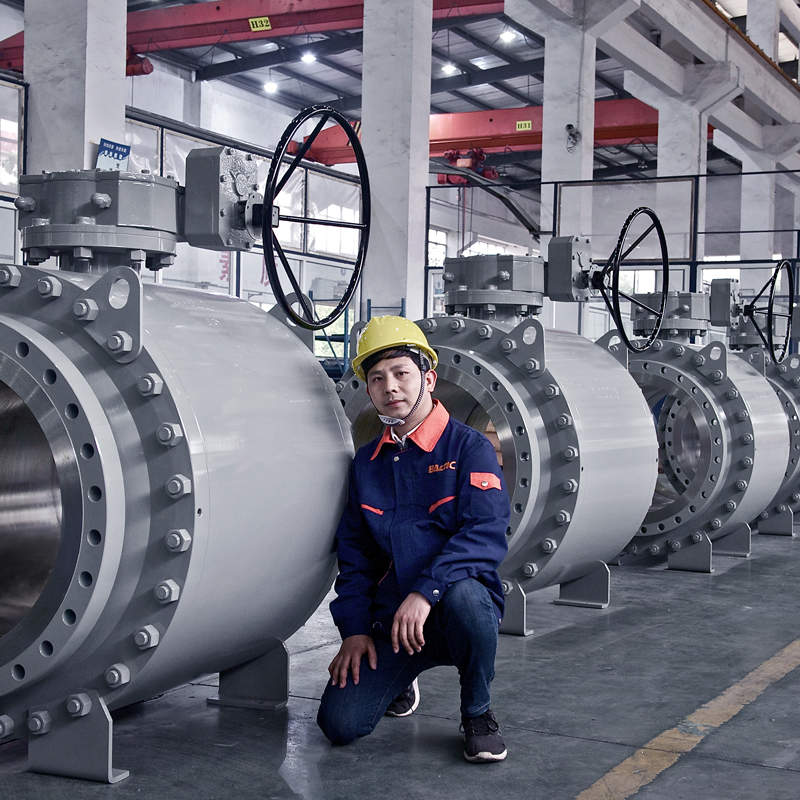

Valve Pictures
