We delivered high quality, EN/DIN
Gate valves to one of European customers.
Generally:
Gate valve, OS&Y, gear box operated.
Design: EN1984 / DIN 3352.
With gear box and hand wheel.
Bolted bonnet, outside screw and yoke, rising stem, flexible wedge, full port.
Supporting feet.
Connection flange according to EN1092-1, type B1.
Face to face EN558-1, line 26.
Painting: Inside and outside not painted.
Bolts and nuts between the body and bonnet and also the gland nuts and gland eye bolts made of steel A193-B7/A194-2H, hot dipped galvanized.
Material:
Body/bonnet GS-C25.
Stem stainless steel 13%Cr.
Trim no.8 (body seat stellite).
Stem packing graphite.

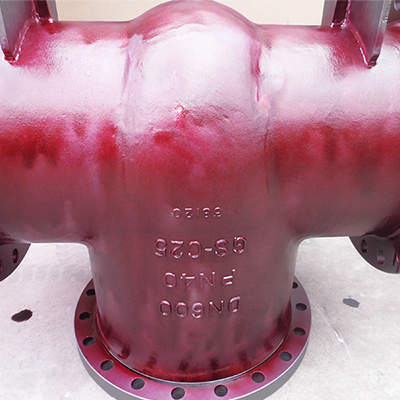

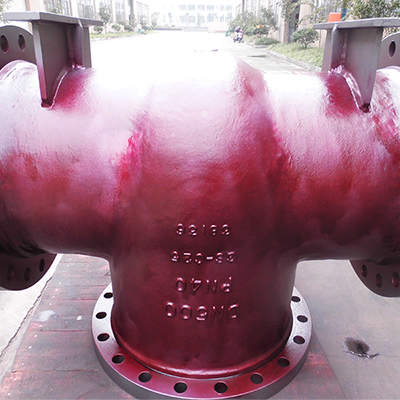

DN500 - PN40 Qty: 1PC
DN600 - PN40 Qty: 1PC
Kindly, please find the following copy of our GA drawing,
