• ASTM B148 C95800 ball valves
ASTM B148 C95800 ball valves

ASTM B148 C95800 ball valves

  • 04 08, 2021

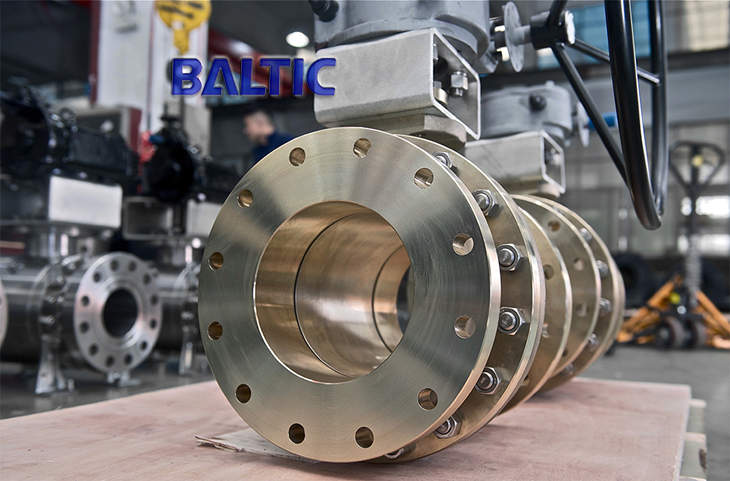

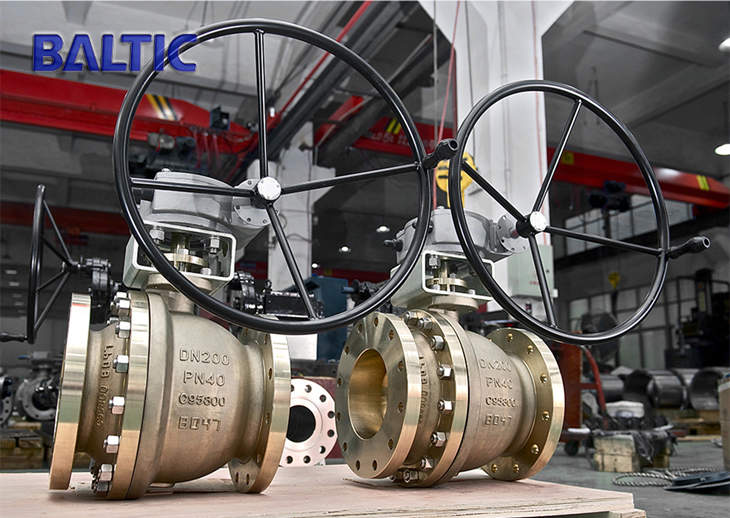

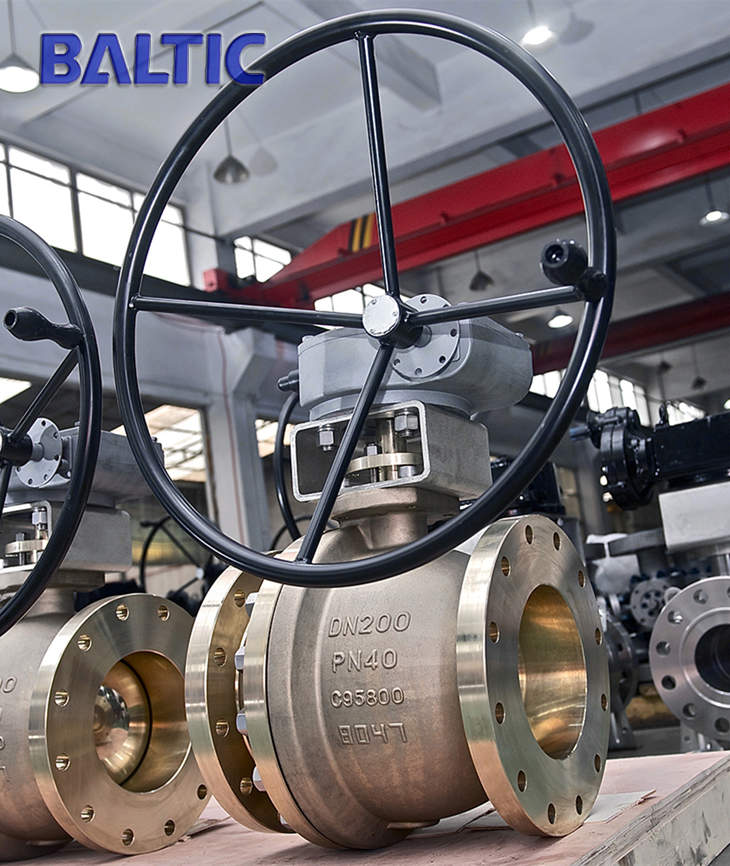

We finished manufacturing some aluminium bronze ball valves in ASTM B148 C95800 for a marine project and the details are as follows.

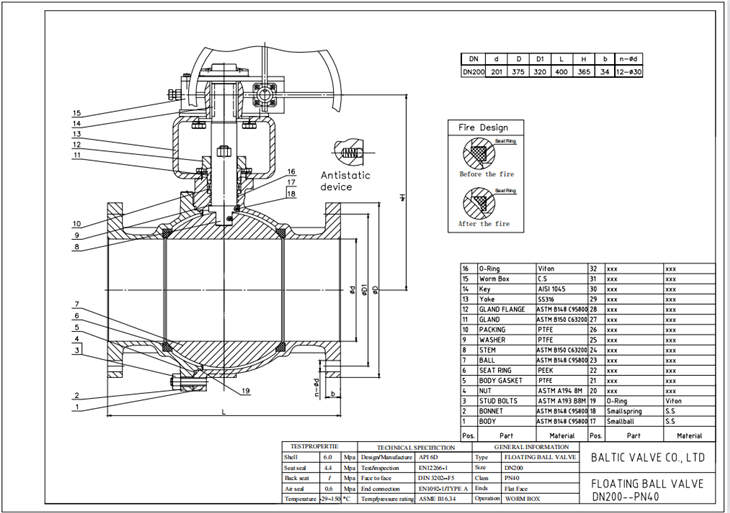

Product description
Ball valve with gearbox operation
2-pc body, side entry
Floating ball, solid ball, full bore
Anti blow-out proof shaft
Fire Safe design: API 607
Anti static device

Valve design: API 6D
Ends connection: FF flange (flat face) as per EN1092-1, type A
Face to face dimension as per DIN 3202 F5 = 400MM
Testing & Inspection: EN12266-1, leakage A

Body: ASTM B148 C95800
Stem: ASTM B150 C63200
Ball:  ASTM B148 C95800
Seat: PEEK

Item 1)  2qty  DN200 - PN40
