API 6D Metal Seated Ball Valve

High temperature, metal seated ball valve.

We finished and delivered some ball valves with special requirements to one of our major customers in EN. Details are as follows:

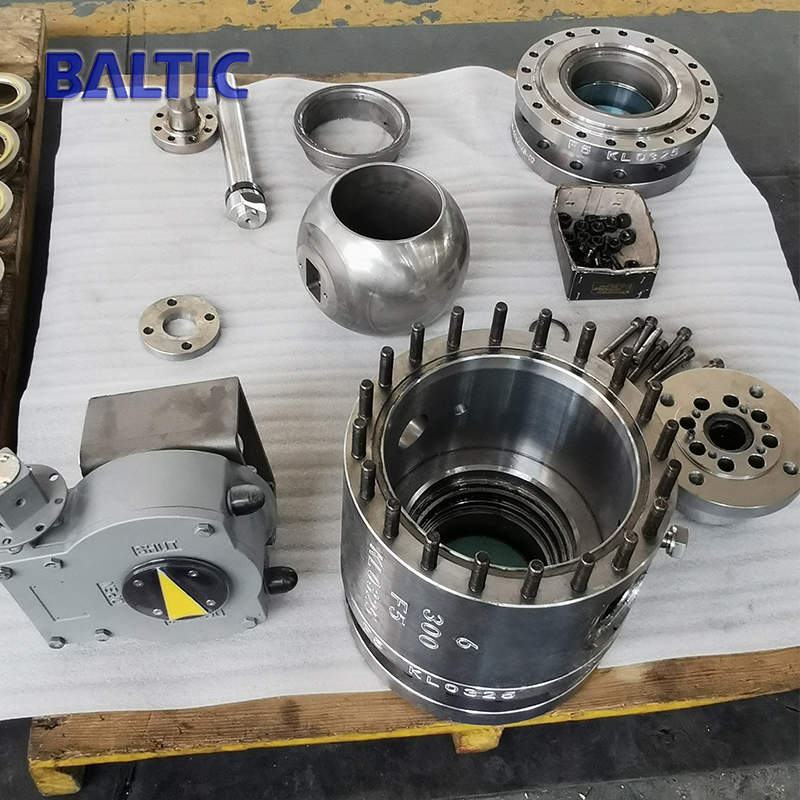

Product description:

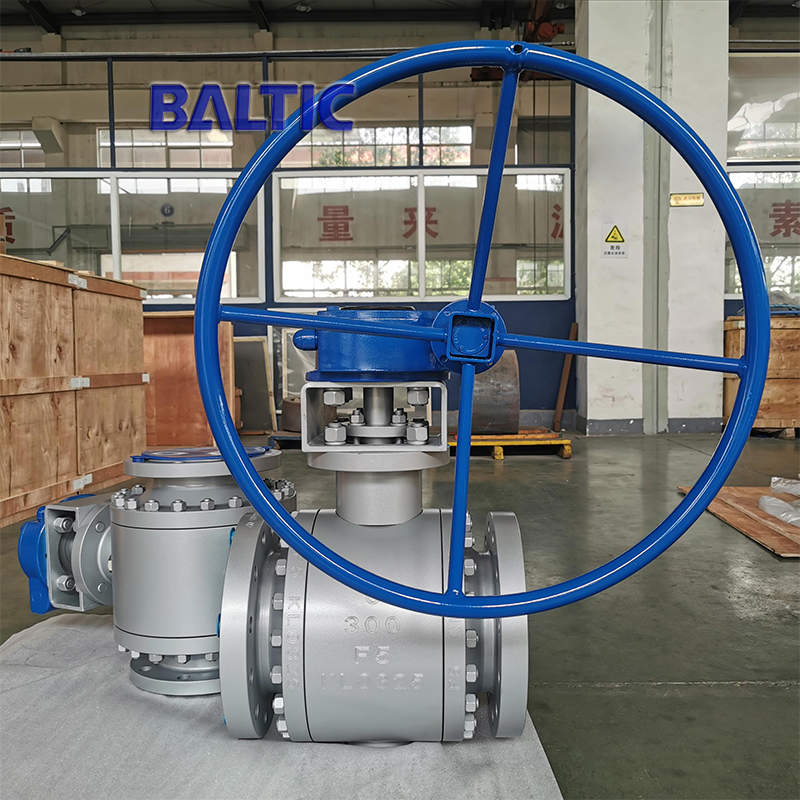

API 6D Ball valve with gearbox HW series.
Extended bonnet, energized seat, metal to metal.
Trunnion mounted, 3-pc body, side entry, full bore.
Anti blow-out proof shaft, venting and drain plug.
Fire Safe design: API 6FA.

End connection: RF flange ends.
Face to face dimension: ASME B16.10.
Testing & Inspection: API 598, leakage A.

Medium: Steam.
Working temperature max. +420°C.
Working pressure max. 39 bar.

Body/ Bonnet: ASTM A182 F5.
Shaft: A479 XM - 19.
Ball / Seats: ASTM A182 F5 + STL.

Note the welding procedure on ball / seats:
The net thickness of hot spray coating stellite (6# / 12#): min. 150 µm.

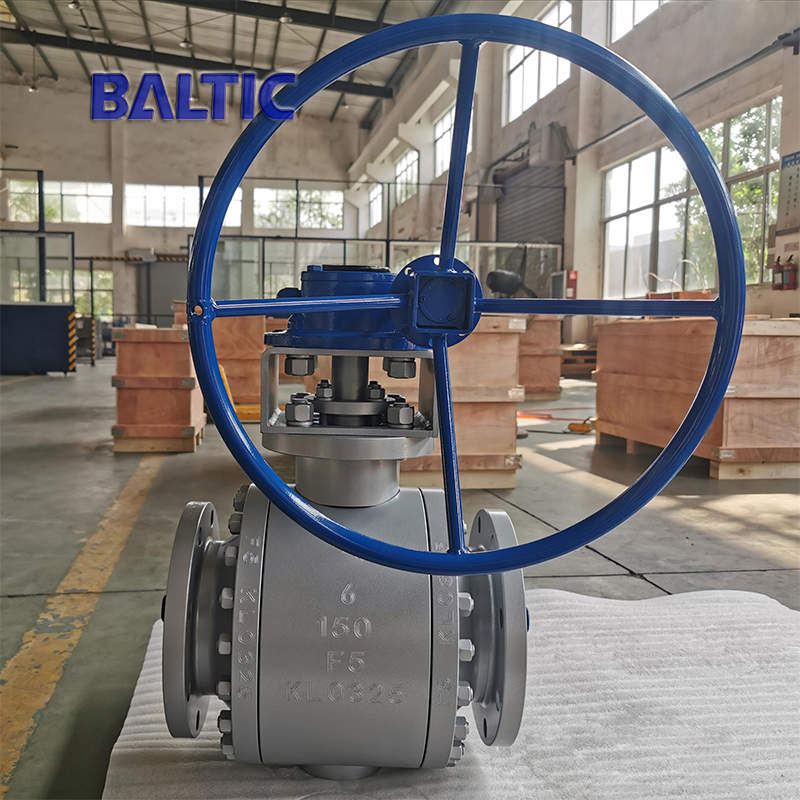

Item 1)  3PCS, 6 Inch, 150 LB.
Item 2)  2PCS, 6 Inch, 300 LB.
Item 3)  1PCE, 6 Inch, 600 LB.

















BALTIC VALVE CO., LTD.
DATED MAY 22nd, 2020.
