• API 6D Floating Ball Valves and Soft Sealing Swing Check Valves
API 6D Floating Ball Valves and Soft Sealing Swing Check Valves

API 6D Floating Ball Valves and Soft Sealing Swing Check Valves

  • 07 21, 2021
We manufactured & delivered a batch of ball valves and VITON sealing swing check valves to one of our customers in South America. More information is as the following:

Product descriptions

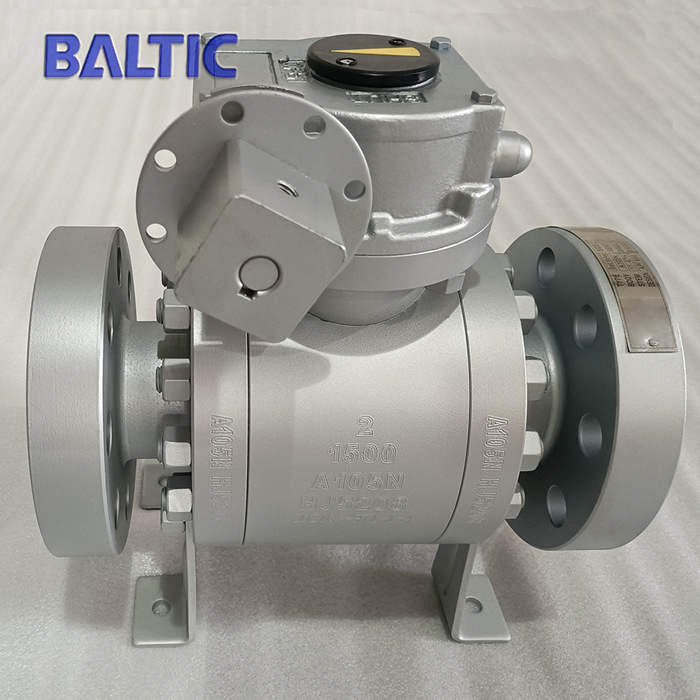

API 6D Ball valve with gearbox plus HW
3pcs body, side entry, floating ball, solid ball, full bore
Anti blow-out proof shaft
Anti-static design
Fire Safe design: API 607

End connection: RF flange ends
Face to face dimension as per ASME B16.10
Testing & Inspection: API 598, leakage A

Body/Bonnet: ASTM A105N
Stem: 17-4PH
Ball: ASTM A182 F304

Item 1)  2inch - 1500LB
===========================================

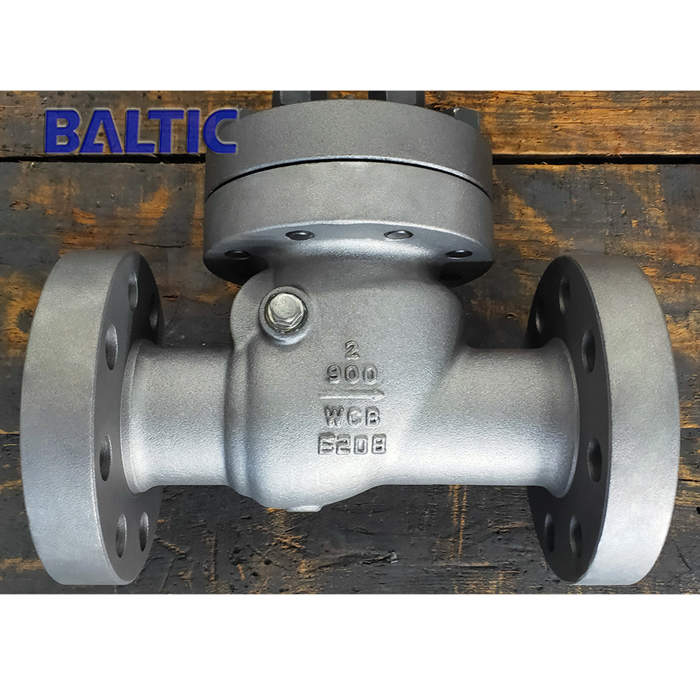

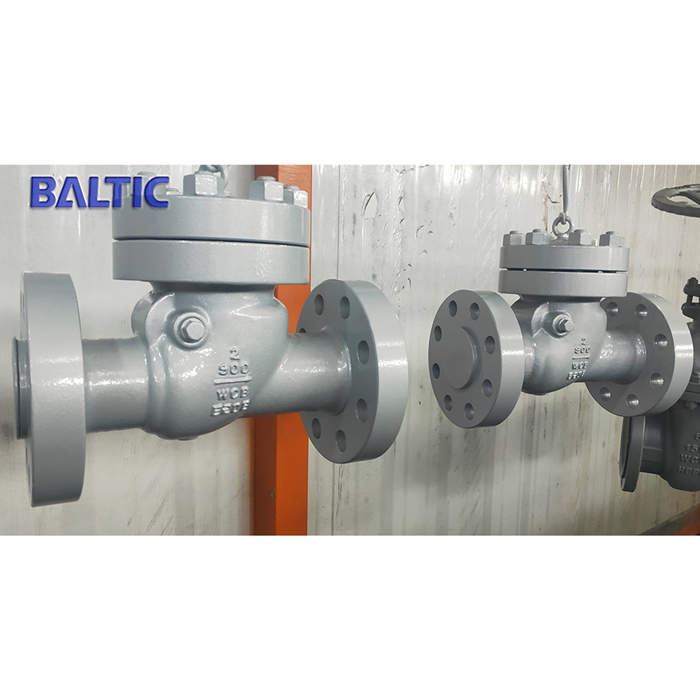

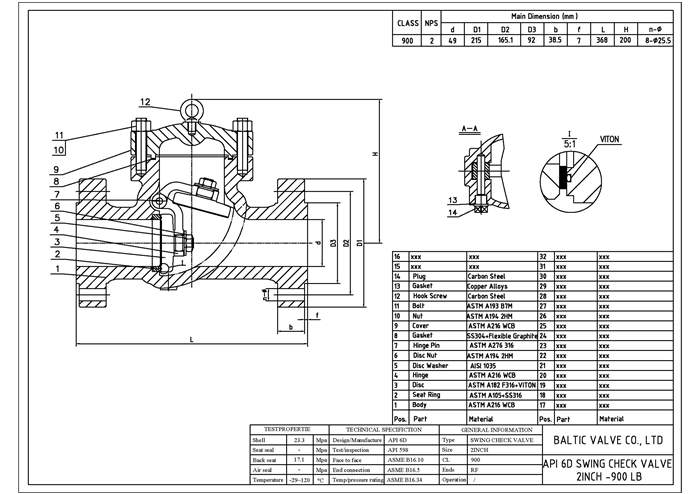

API 6D Swing check valve, bolted bonnet, soft sealing

RF flange accord to ASME B16.5
Face to face dimension: ASME B16.10

Body/bonnet: ASTM A216 WCB
Disc: ASTM A182 F316 plus VITON
Seat ring: ASTM A105 plus SS316
NACE MR0175
Leakage: zero leakage for hydraulic test and air test

Item 2)  2 Inch - 900LB


BALTIC VALVE CO., LTD
DATED JULY 20,2021
