API 600 Gate Valves for the Steam Pipe

API 600 gate valves for the steam pipe
We just finished and delivered two 40 Inch GP gate valves to one of our clients in Vienna, Austria.

Product description:
API 600 gate valve with gearbox

OS&Y, BB, Rising Stem, full port
Flexible Wedge with Back Seat

Materials
Body: ASTM A216 WCB
Trim: 8#
Stem: ASTM A182 F6A
Wedge: WCB + 13Cr
Body Seat: A105 + Stellite
Stem Packing: Graphite
Bonnet Gasket: SS 304 + Graphite

Connection: RF acc. to ASME B16.5
Face to Face: ASME B16.10

Item 1)  7qty  16 Inch x 300 LB   L=838 MM
Item 2)  2qty  18 Inch x 300 LB   L=914 MM
Item 3)  5qty  20 Inch x 300 LB   L=991 MM
Item 4)  2qty  24 Inch x 300 LB   L=1143 MM

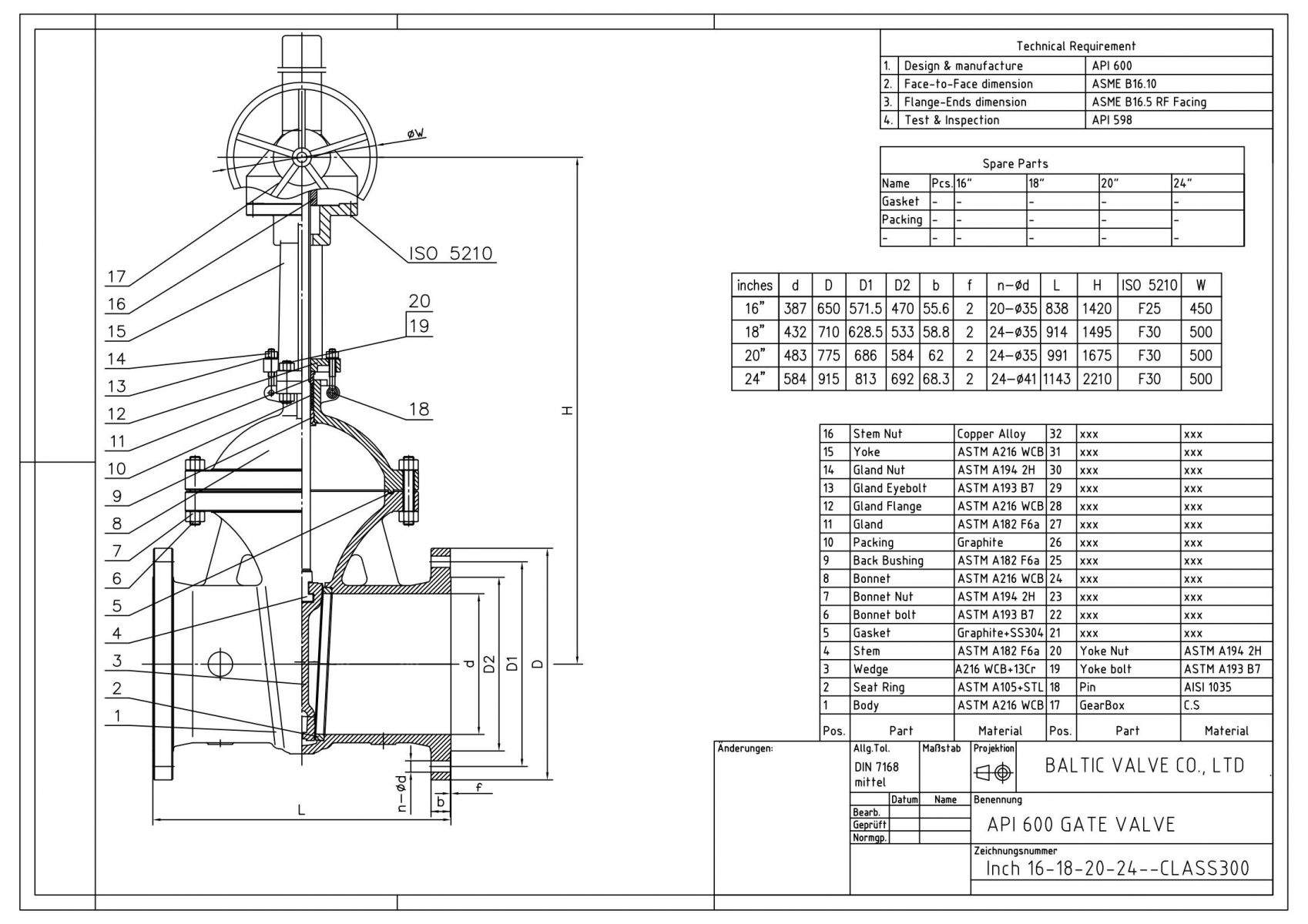

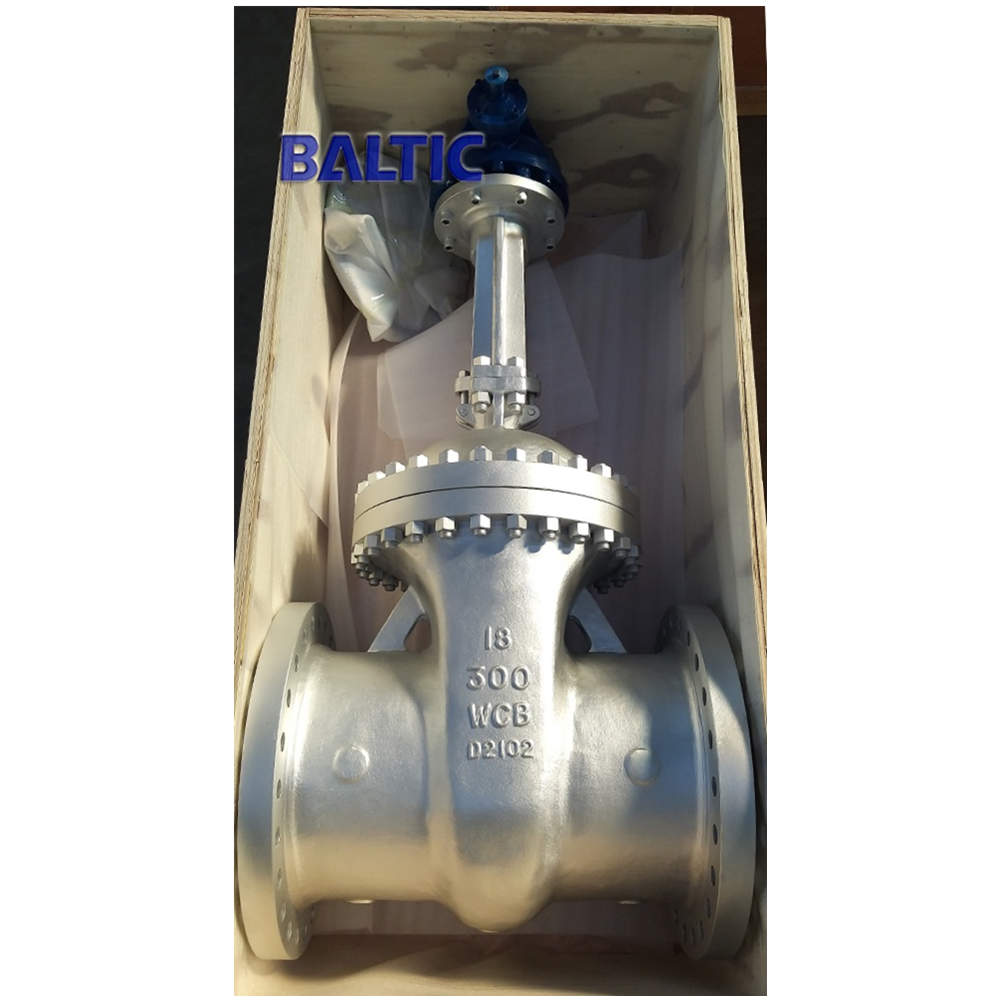

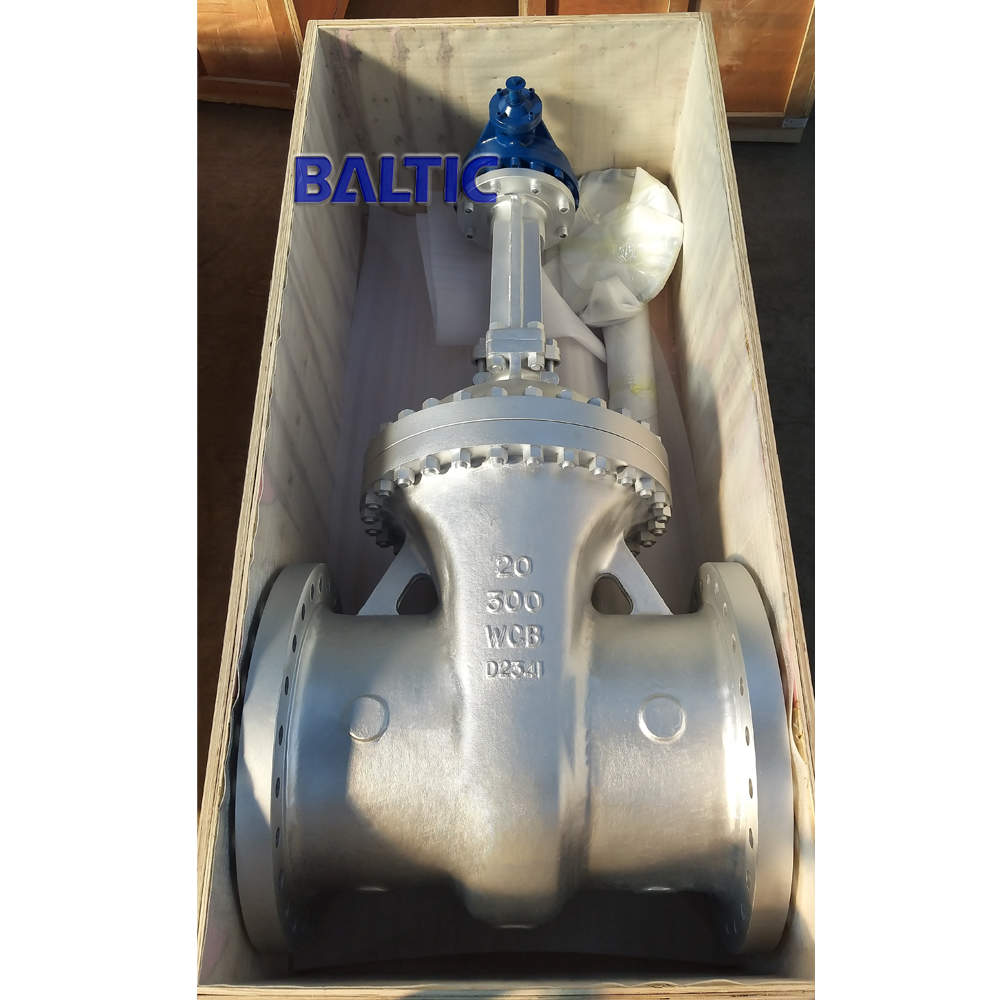

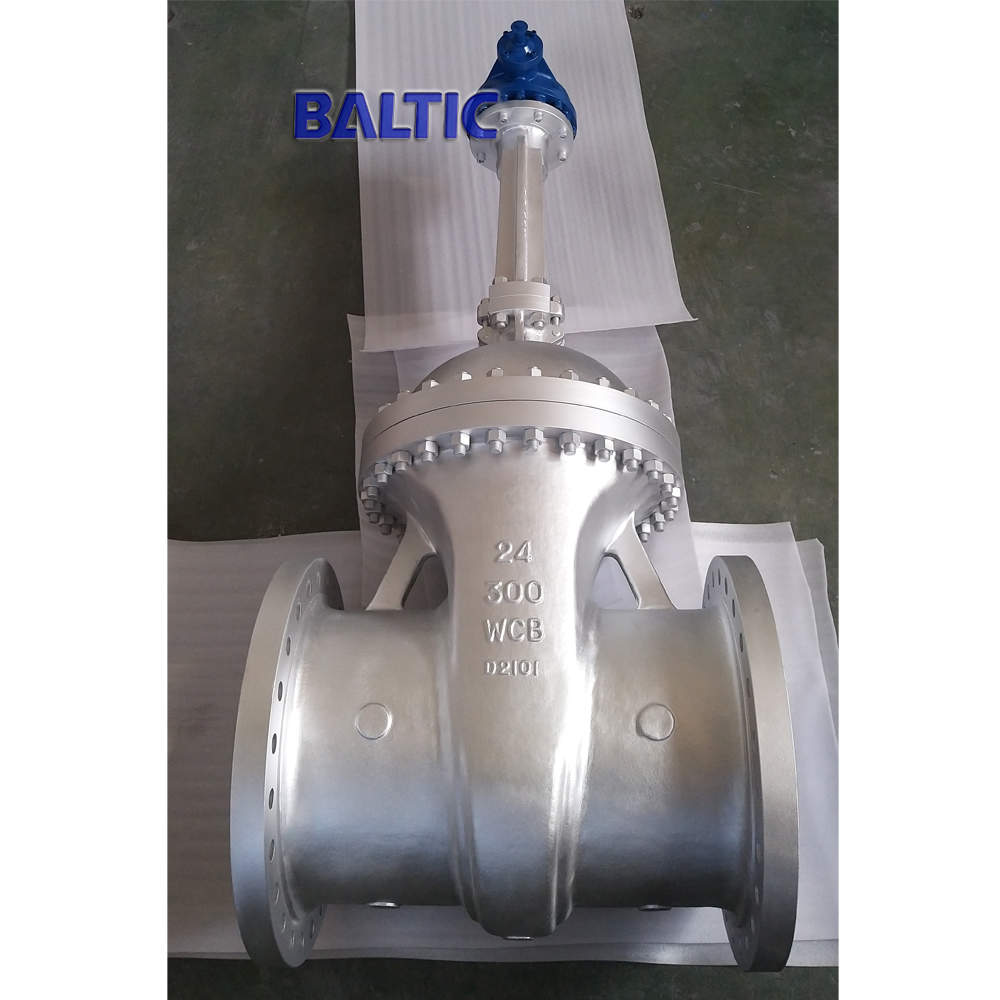

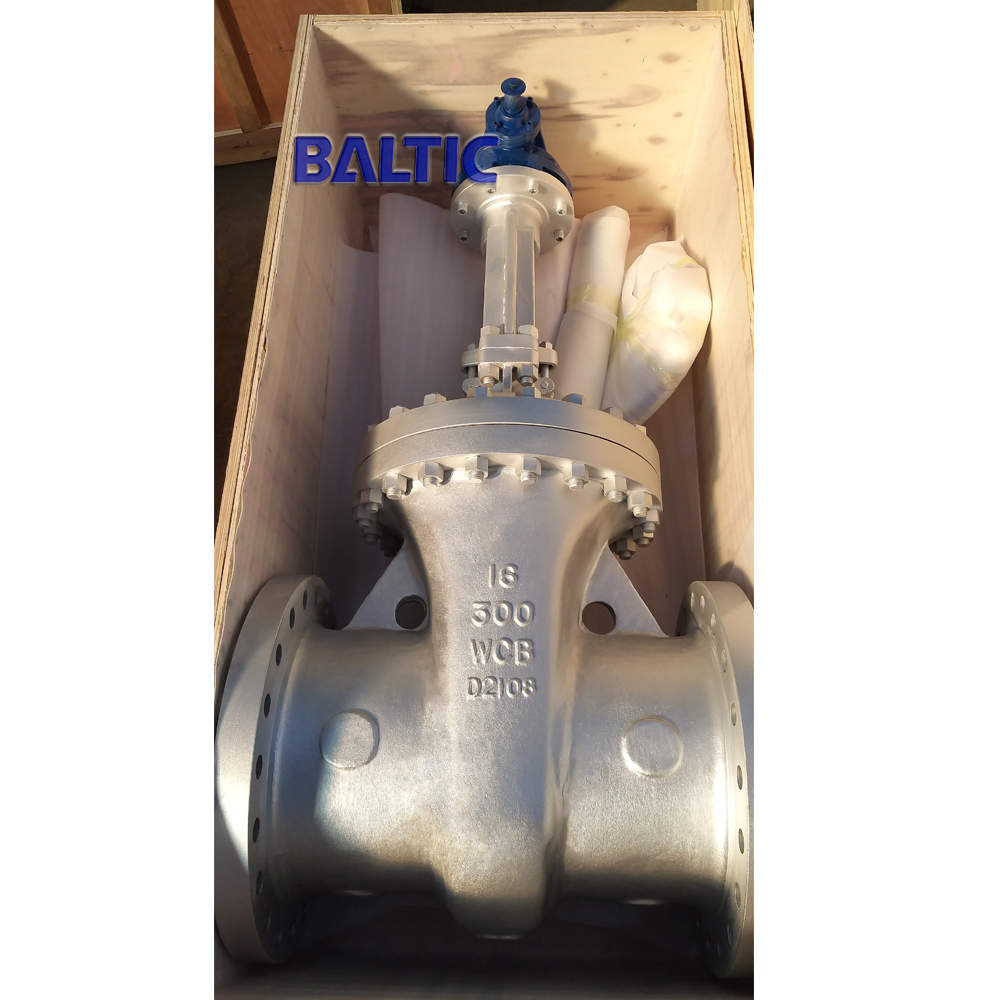

Please kindly find attached the copy of the GA drawing and valve pictures.
