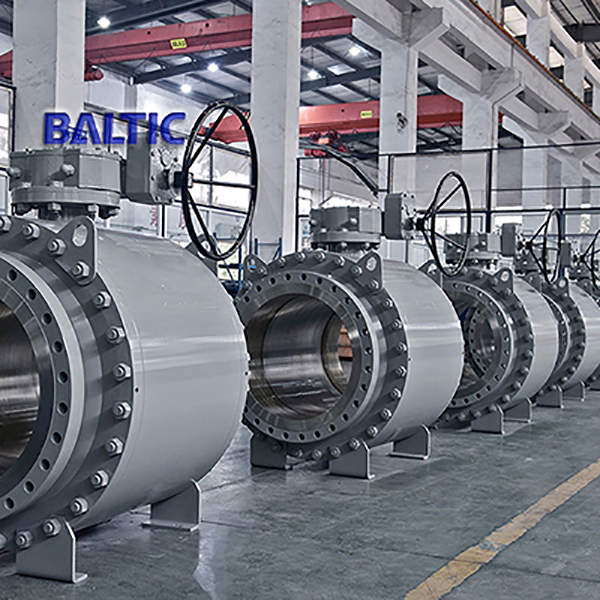

Metal Seat Ball Valve, 28 Inch, Class 150 LB, A105N, RF

Name: Metal Seat Ball Valve, 28 Inch, Class 150 LB, A105N, RF
SKU: msbv-05
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: MSBV-05 Hits: 209

Metal Seat Ball Valve, ASTM A105N, API 6D, 28 Inch, Class 150 LB, A105N, RF, Gearbox

Request a quote Share

Tags:

Next: 3PC Metal Seat Ball Valve, A105N, API 6D, 8 Inch, 150 LB, RF

Previous: Bare Stem Metal Seated Ball Valve, ASTM A182 LF2, 32IN, CL900, RTJ

Detail Information

Valve description:
Metal Seat Ball Valve, 28 Inch, Class 150 LB, A105N, RF
Design: API 6D
3PC body, Trunnion Mounted, Solid
Ball, Full Bore, Fire Safe Design,
Anti-Static Device,
Blow Out Proof Stem

Material
Body: ASTM A105N
Ball: ASTM A182 F316 + TCC
Stem: ASTM A479 Gr.XM-19
Seat: ASTM A182 F316 + TCC
Flexible Graphite Seal
Stud/Nut: B7M/2HM, HDG
As per NACE MR 0175
Connection: RFacc. to ASME B16.5
Face to Face: ASME B16.10 =1245 MM
Operation: Gearbox

Size: 28 inch
Class: 150 LB
Quantity: 5 pieces

Metal Seat Ball Valve, 28 Inch, Class 150 LB, A105N, RF
