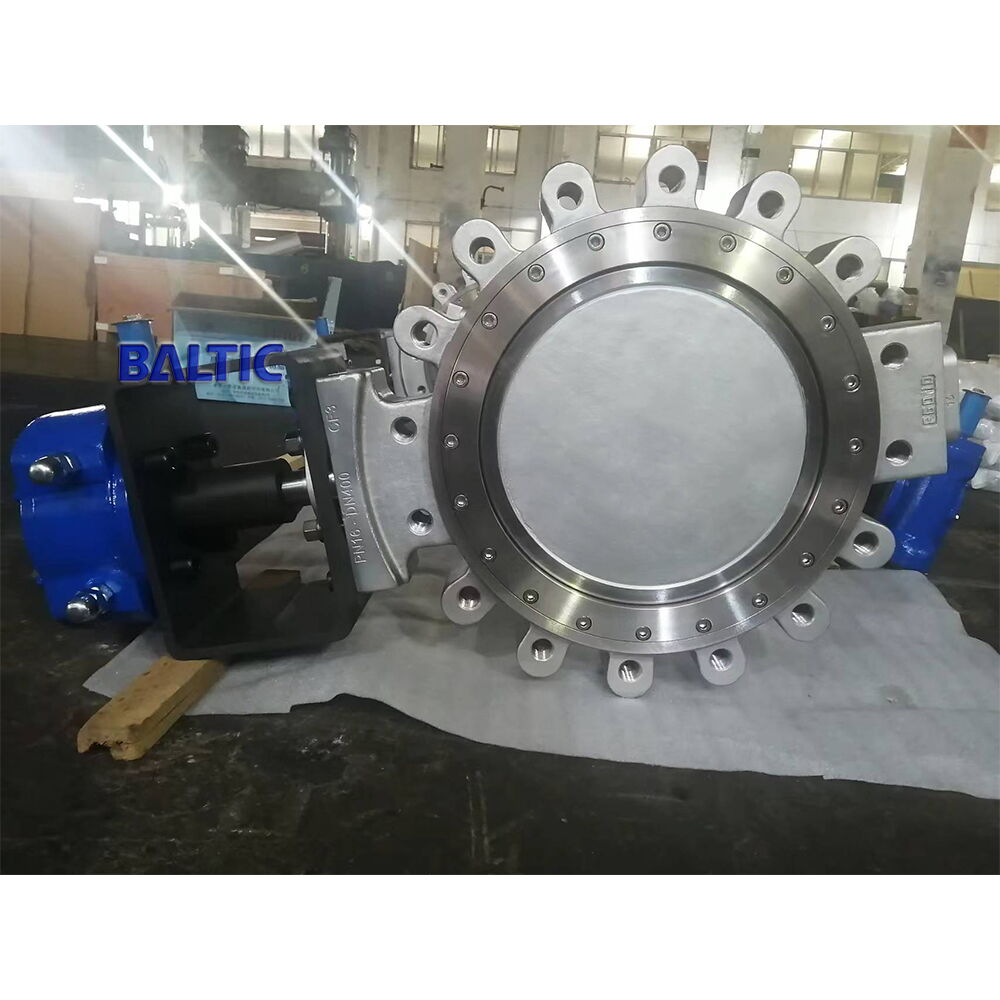

LUG Butterfly Valve, ASTM A351 CF8, DN400, PN10, API 609

Discover the LUG Butterfly Valve from our China factory, featuring API 609 compliance with a durable ASTM A351 CF8 body and disc, ASTM A182 F51 stem, and RPTFE seat. Designed for DN400 applications, this 16-inch valve operates at PN10 and Class 150 LB, ensuring reliability and performance for various industrial needs.

Tags:

• ASTM A351 CF8 Butterfly Valve
• DN400 Butterfly Valve
• PN10 Butterfly Valve

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A351 CF8.
Disc: ASTM A351 CF8
Stem: ASTM A182 F51
Seat: RPTFE
Nominal size: DN400.
Nominal class: PN10.
Connection ends: LUG type.
Face to face: EN558/Row 20.
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc: Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator
to be done ANTI-ACID paint coating
