Lug Butterfly Valve, ASTM A216 WCB, API 609, 3 Inch, 150 LB

Lug Butterfly Valve, ASTM A216 WCB, API 609, 3 Inch, 150 LB

Key Specifications / Features

Model No.: Hits: 8

A reliable provider of Lug Butterfly Valves, compliant with API 609 standards, featuring a 3-inch, 150 LB design, ASTM A216 WCB body, ASTM A351 CF8M disc, 17-4PH stem, and RPTFE seat, complete with a bracket and ISO 5211 top flange for versatile applications.
Request a quote Share

Detail Information

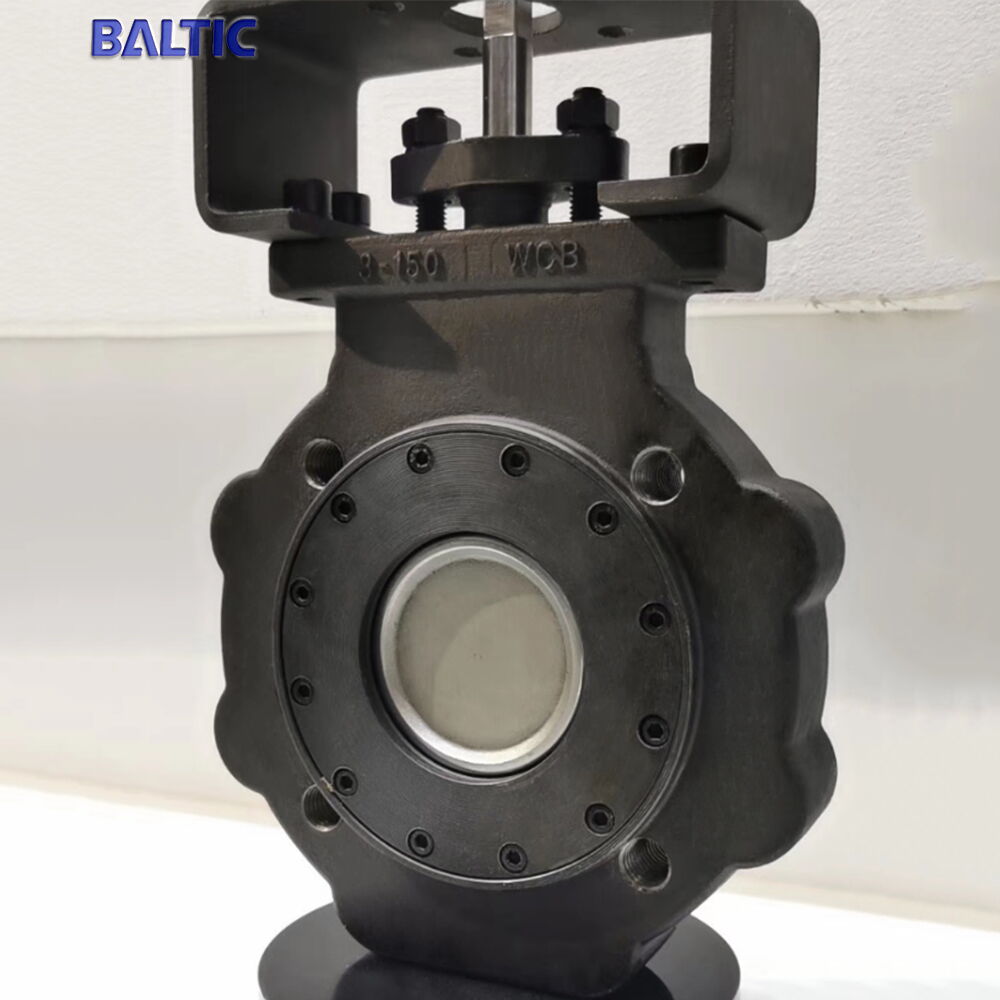

Name: LUG Butterfly Valve with Bracket + ISO top flange 5211
Design: API 609.
Body: ASTM A216 WCB.
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Nominal size: 3 Inch.
Nominal class: 150 LB.
Connection ends: LUG type.
Face to face: API 609
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi-Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL K500
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
