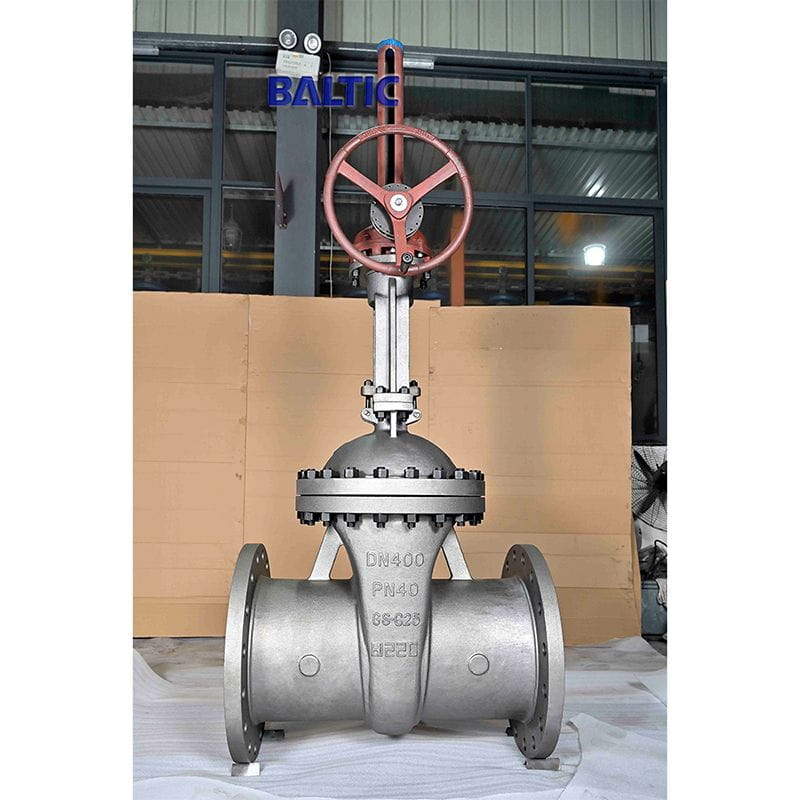

GS-C25 Gate Valve, Flexible Wedge, DN400, PN40, DIN 3352

Discover GS-C25 wedge gate valves by EN 1984 and DIN 3352 standards. Available in DN400 size, PN40 and 16-inch Class 300 LB ratings. These bolted bonnet valves feature a full bore design, threaded stem, and anti-corrosion properties. Explore high-quality gate valves for diverse applications.

Tags:

• GS-C25 Gate Valve
• DN400 Gate Valve
• PN40 Gate Valve
• DIN 3352 Gate Valve
• 16 Inch Gate Valve
• Class 300 LB Gate Valve
• Full Bore Gate Valve
• EN 1984 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: GS-C25.
Nominal Size: DN400.
Nominal Pressure: PN40
Connection Ends: RF X RF, as per EN 1092-1/B1
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.

Other features

Flexible wedge, full bore
Bolted bonnet type

For pressure seal bonnet type:
Threaded stem does not contact the medium, to avoid possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Design standard: EN 1984, API 600, DIN 3352, ASME B16.34.
Design temp.: -196℃  -  573℃.
Operation: gearbox, Hand wheel, electric
Connection end: ASME B16.25, ASME B16.5, EN1092 series.
Size range: DN50 - DN1500, NPS 2 - 60 Inch.
Design pressure: PN10 - PN420, class 150 - 2500 LB.
Material: ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500, ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8
Connection end: ASME B16.25, ASME B16.5, EN1092 series.
Application: electric power, petrochemical engineering, petroleum refining, chemical engineering, offshore oil
