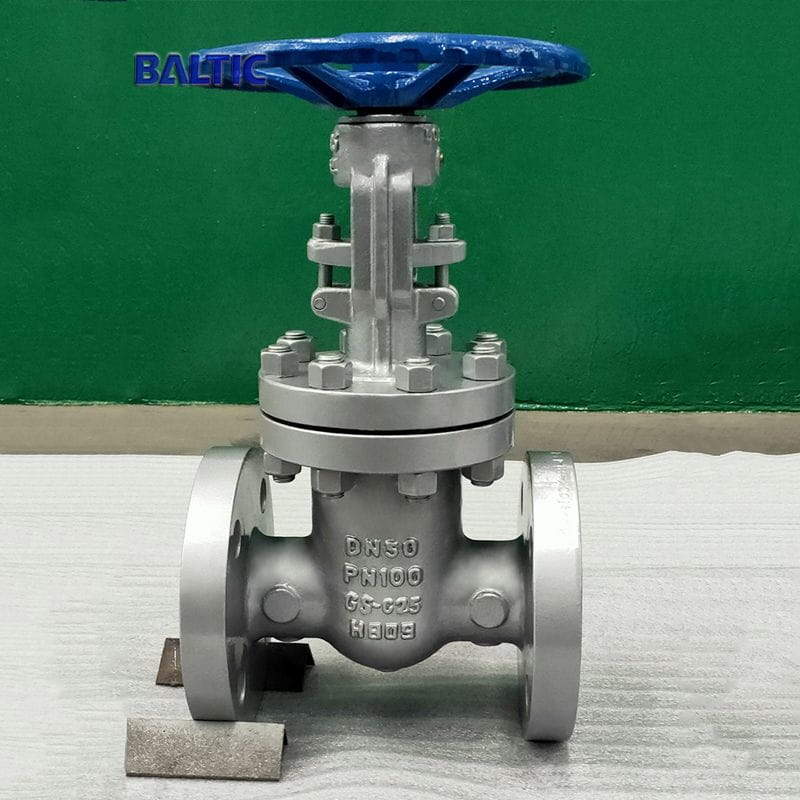

GS-C25 Gate Valve, Flexible Wedge, DIN 3352, DN50, PN100, RF

Explore our top-quality GS-C25 Gate Valve - Manufacturer: DN50, 2 Inch, Class 600 LB, PN100, DIN 3352, EN 1984, EN 1092-1/B2. Featuring a reliable RF X RF End and a Threaded Stem Design, this valve is built for precision and durability. Trust in our expertise for all your gate valve needs.

Tags:

• Flexible Wedge Gate Valve
• DIN 3352 Gate Valve
• DN50 Gate Valve
• PN100 Gate Valve
• RF Gate Valve
• 2 Inch Gate Valve
• Class 600 LB Gate Valve
• EN 1984 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: GS-C25.
Nominal Size: DN50
Nominal Pressure: PN100
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Additional Features
Choice Between a Bolted Bonnet or Pressure Seal Bonnet Setup
Comes with a Flexible Wedge for Full-Bore Operation
Exclusive to the Pressure Seal Bonnet Setup:
Incorporates a Metal Sealing Bonnet Gasket with an RTJ Ring (Stainless Steel 304) for Prolonged Longevity
The Threaded Stem Design Guarantees No Interaction with the Fluid Medium, Minimizing Corrosion Hazards

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM B148 C95800, ASTM B148 C95500, ASTM A352 LCB, ASTM A352 LCC, CN3MN, CK3MCUN, CN7M, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN)
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Design temp.:  -196℃ - 573℃.
