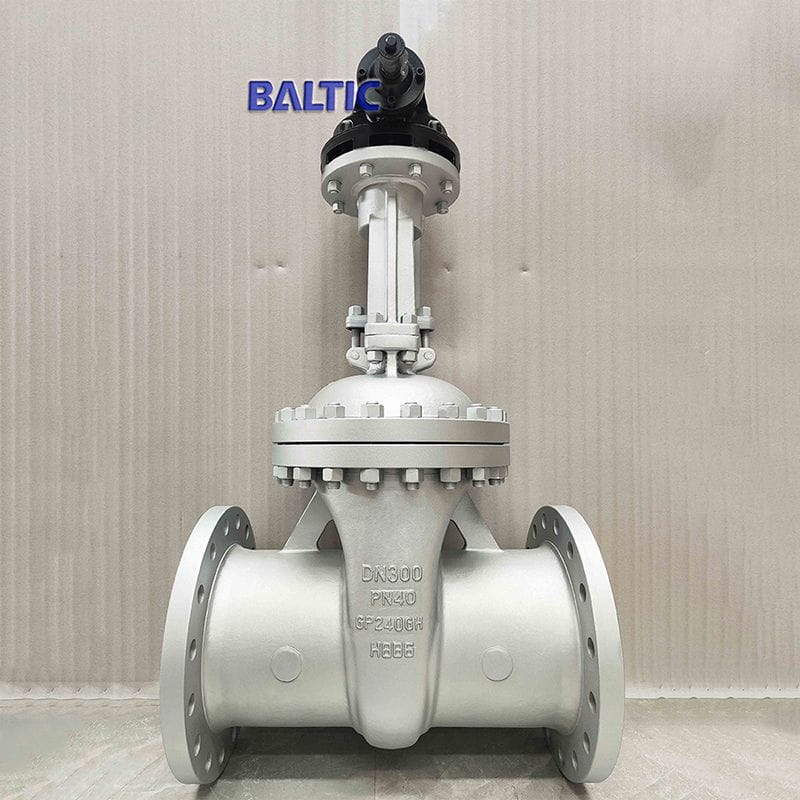

GP240GH Gate Valve, EN 1984, DIN 3352 DN300, PN40, RF

Get high-quality GP240GH Wedge Gate Valves from a trusted provider adhering to EN 1984 and DIN 3352 standards. Our valves come in DN300 (12 inch) size, with PN40 and Class 300 LB ratings. Choose from various operation options including Handwheel and Gearbox, or opt for Bare Stem. Featuring EN 1092-1/B1 RF Ends, these gate valves are engineered for reliable performance.

Tags:

• GP240GH Gate Valve
• EN 1984 Gate Valve
• DIN 3352 Gate Valve
• DN300 Gate Valve
• PN40 Gate Valve
• RF Gate Valve
• 12 Inch Gate Valve
• Class 300 LB Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: GP240GH.
Nominal Size: DN300
Nominal Pressure: PN40
Connection Ends: RF X RF, as per EN 1092-1/B1
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.

Other features

Bolted bonnet type
Threaded stem does not contact the medium, to avoid possibility of corrosion
pressure seal bonnet type
Flexible wedge, full bore

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
