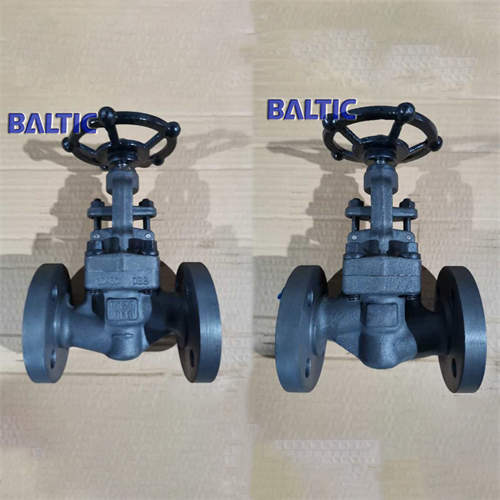

Forged Steel S Globe Valve, 1.0460, DN20, PN40, RF, DIN 3356

Forged Steel S Globe Valve Maker: S Type Globe Valve with RF Flanged Ends, Forged Steel 1.0460, Full Bore, DN20, PN40, DIN 3356, API 602, EN 12266-1.

Tags:

• Forged Steel Globe Valve
• S Type Globe Valve
• RF Flanged Globe Valve
• 1.0460 Globe Valve
• Full Bore Globe Valve
• DN20 Globe Valve
• PN40 Globe Valve
• DIN 3356 Globe Valve
• API 602 Globe Valve

Name: DIN small size globe valve, full bore.
Design: DIN 3356.
Body: 1.0460.
Nominal size: DN20.
Nominal class: PN40.
End connection: RF Flanged ends.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.

Technical parameters and characteristics
Product: Small size globe valve.
Nominal diameter: DN8 - DN50.
Design temp. : -196℃ - 573℃.
Design pressure: PN10 - PN160.
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard: API 602, DIN 3356.
Face to face: Manufacture standard, EN 558-1/line 1.
Connection end: NPT, SW, BW, Flange.
Test standard: API 598, ISO 5208.
Operation: Hand wheel, electric.
Application: Power station, petroleum, chemical engineering.
Function 1: Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2: Plug disc, needle disc.
Function 3: Full bore, reduce bore.
Function 4: Integral flanged ends, welded on flanged ends.
