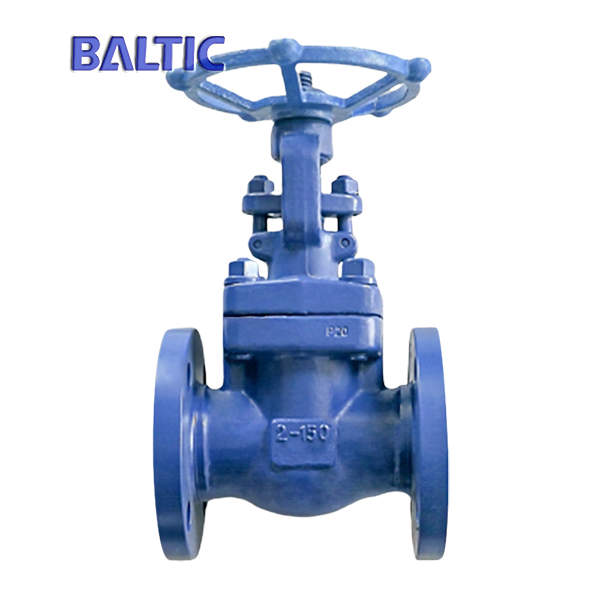

Forged Carbon Steel Gate Valve, LF2, 2 IN, CL150, Integral Flanged

Key Specifications / Features

Model No.: Hits: 50

Forged Carbon Steel Gate Valve Supplier in China: Forged Carbon Steel Gate Valve, ASTM A350 LF2, 2 Inch, Class 150 LB, Integral Flanged Ends, API 602.

Request a quote Share

Tags:

Next: ASTM A182 F316H Forged Gate Valve, 1 Inch, Class 2500, PSB, BW Ends

Previous: ASTM B148 C95800 Gate Valve, 1.5 Inch, Class 300, API 602, RF

Detail Information

Name: Small size gate valve, with integral flange.
Design: API 602.
Body: ASTM A350 LF2.
Nominal size: 2 Inch.
Nominal class: 150 LB.
End connection: flange ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size gate valve
Nominal diameter	1/4 Inch - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500
Material	Carbon steel, Stainless steal, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	solid wedge
Function 3	Full bore, reduced bore
Function 4	Integral flanged ends, welded on flanged ends

Forged Carbon Steel Gate Valve, LF2, 2 IN, CL150, Integral Flanged

Key Specifications / Features

Detail Information

Similar Products

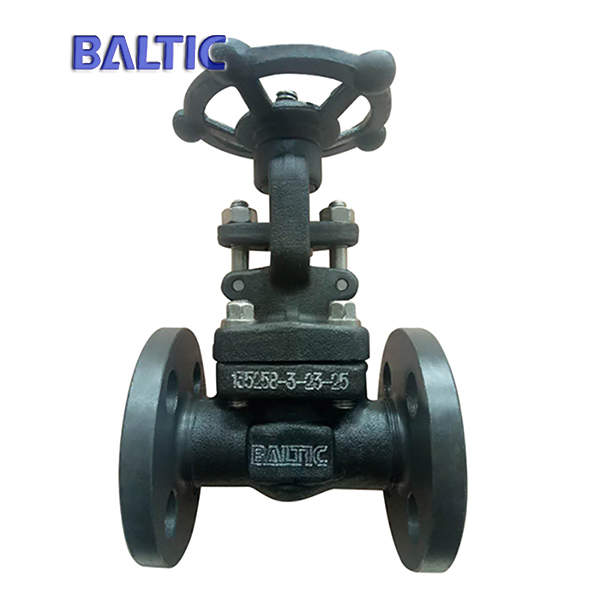

Integral Flanged Forged Gate Valve, ASTM A105N, 1/2 Inch, 150 LB

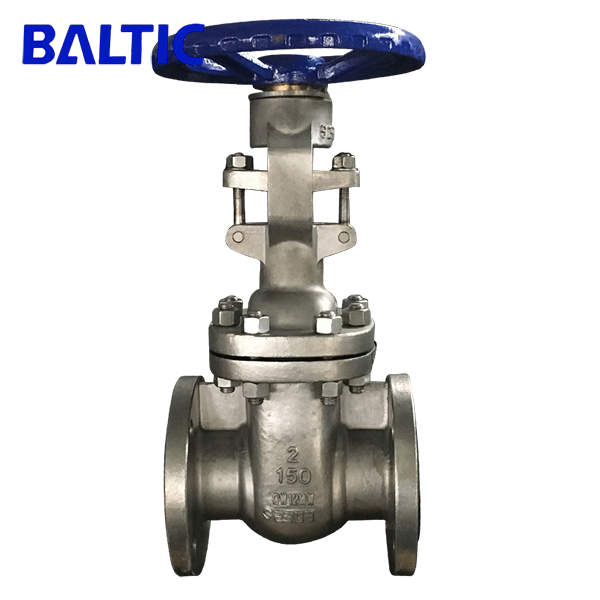

ASTM A494 CW12MW Gate Valve, 2 Inch, 150 LB, API 600, ASME B16.34

PSB Gate Valve, ASTM A105N, 2IN, CL2500, API 602, BW

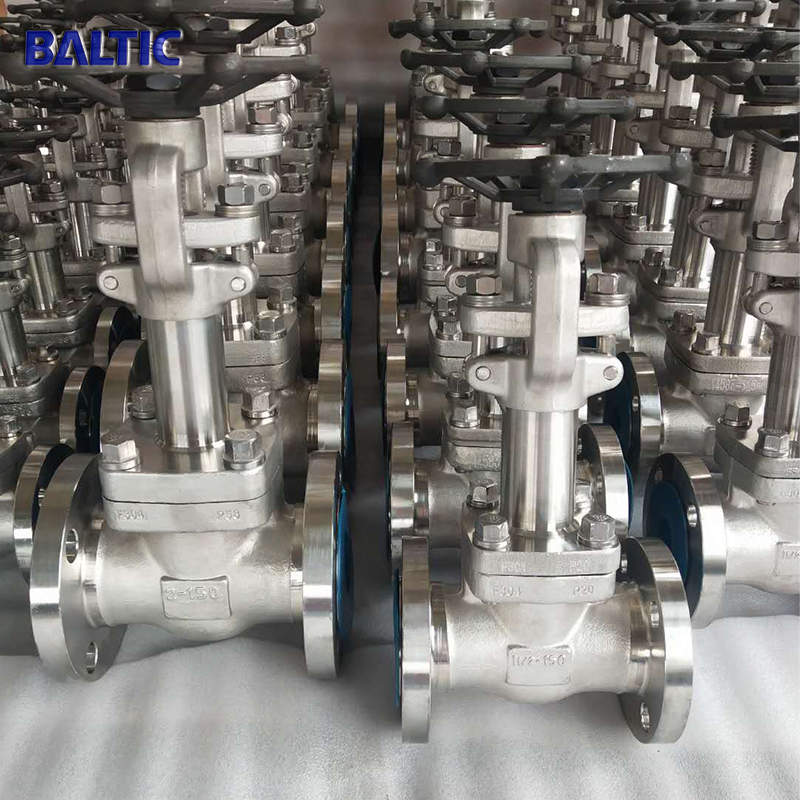

2 Inch Cryogenic Gate Valve, ASTM A182 F304, 150 LB, RF
