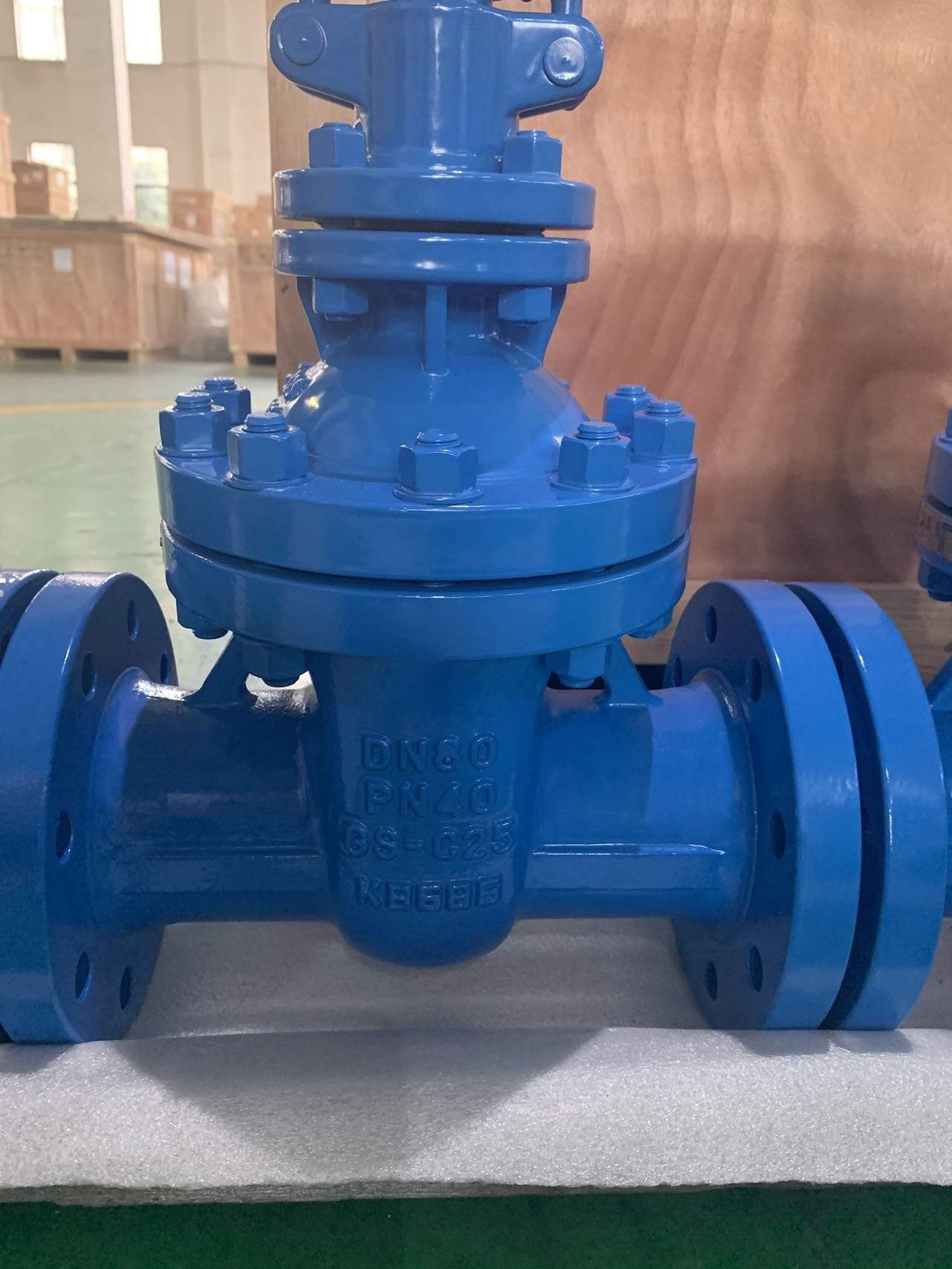

EN 1984 Gate Valve, Non-Rising Stem, GS-C25, DN80, PN40

GS-C25 DIN Gate Valve Supplier: Non-rising Stem, DN80, PN40, EN 1984, Class 300 LB, 3 Inch, FF DIN 3202 F7, EN1092-1/B1 End. Find top-quality DIN gate valves with non-rising stems in DN80 size, suitable for PN40 and Class 300 LB applications. These valves come in a 3-inch size and feature FF DIN 3202 F7 flanges with EN1092-1/B1 ends.

Tags:

• GS-C25 Gate Valve
• DN80 Gate Valve
• PN40 Gate Valve
• 3 Inch Gate Valve
• EN 1984 Gate Valve
• Class 300 LB Gate Valve

Valve description:
Product name: Non-Rising stem Gate Valve.
Design: EN 1984
Material: GS-C25.
Nominal size: DN80
Nominal pressure: PN40
Connection ends: EN 1092-1/B1
Face to face: EN 558-1/line 26 (DIN 3202 F7)
Model of operation: Handwheel
Test and inspection: EN 12266-1

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM B148 C95800, ASTM B148 C95500, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM A217 WC6, ASTM A217 WC9
Operation: Hand wheel, gearbox, electric
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Design temp.: -196℃ - 573℃.
Usage: Generating electrical power, processing unrefined petroleum, manufacturing petrochemicals, performing deep-sea offshore drilling, and producing chemicals.
