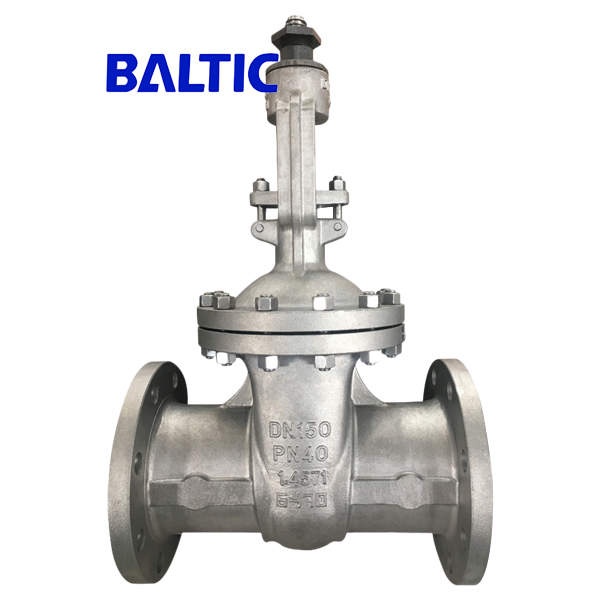

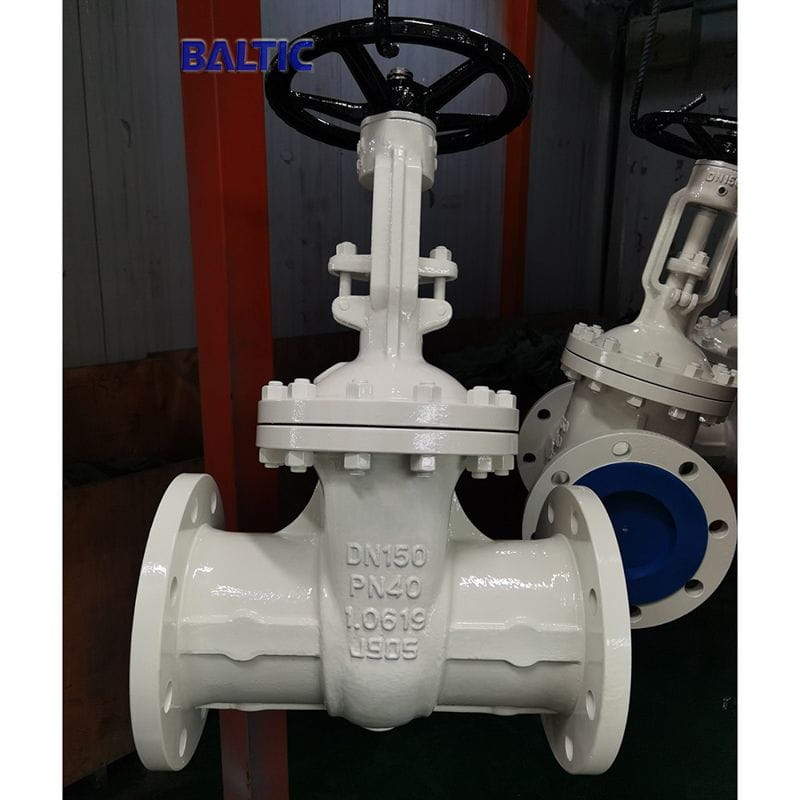

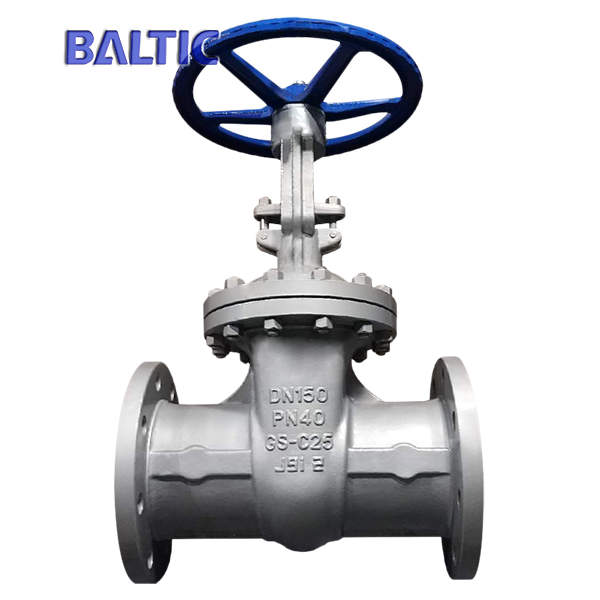

EN 1984 Gate Valve, Flexible Wedge, DIN 3352, DN150, PN40

Find the Perfect EN 1984 Flexible Wedge Gate Valve Supplier - DIN 3352, DN150, PN40, 6 Inch, Class 300 LB. High-Quality 1.0619 Valve with Handwheel, Gearbox, Pressure Seal bonnet, and Bare Stem Available.

Tags:

• EN 1984 Gate Valve
• Flexible Wedge Gate Valve
• DIN 3352 Gate Valve
• DN150 Gate Valve
• PN40 Gate Valve
• 6 Inch Gate Valve
• Class 300 LB Gate Valve
• 1.0619 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: 1.0619.
Nominal Size: DN150
Nominal Pressure: PN40
Connection Ends: RF X RF, as per EN 1092-1/B1
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem
Test and Inspection: EN 12266-1.

Other features
Flexible wedge, full bore
Bolted bonnet type
Threaded stem does not contact the medium, to avoid possibility of corrosion
pressure seal bonnet type

Technical Parameters and Characteristics
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Product type: Gate valve.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Design temp.: -196℃  -  573℃.
Operation: Hand wheel, gearbox, electric
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN),
ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
