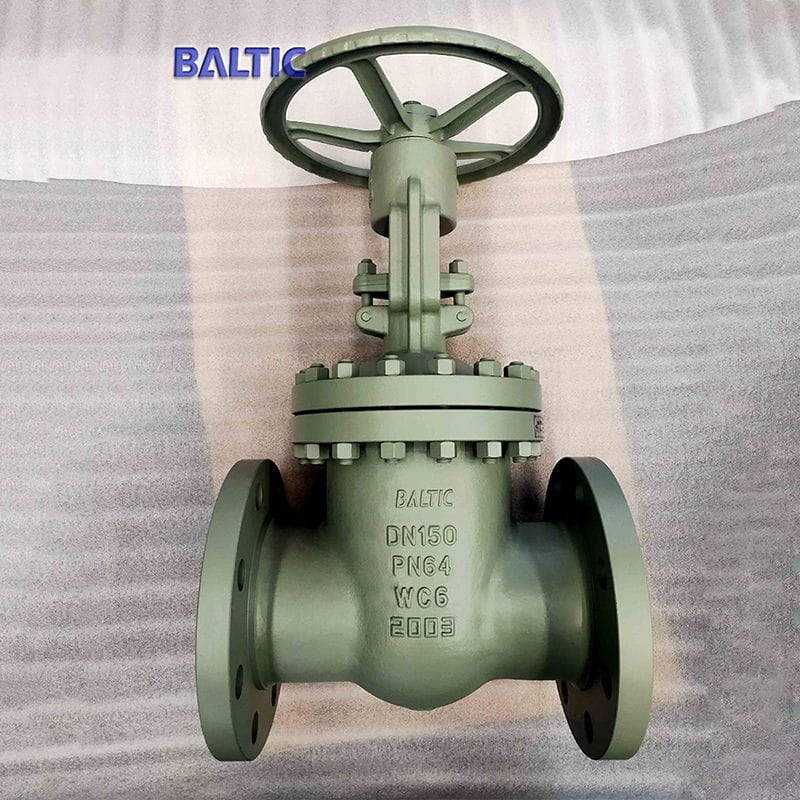

EN 1984 Gate Valve, ASTM A217 WC6, DN150, PN64, RF

Discover a Leading Flexible Wedge Gate Valve Manufacturer. Our Valves: DN150, PN64, Class 400 LB, 6 Inch Size, ASTM A217 WC6 Material, Conforming to EN 1984 and DIN 3352 Standards. RF Ends per EN 1092-1/B2 for Reliable Connection. Rigorously Tested to EN 12266-1. Explore Quality and Performance.

Tags:

• EN 1984 Gate Valve
• PN64 Gate Valve
• RF Gate Valve
• Class 400 LB Gate Valve
• 6 Inch Gate Valve
• DIN 3352 Gate Valve
• DN150 Gate Valve

Valve description:
Product Name: Flexible Wedge Gate Valve.
Design: EN 1984, DIN 3352
Material: ASTM A217 WC6.
Nominal Size: DN150
Nominal Pressure: PN64
Connection Ends: RF X RF, as per EN 1092-1/B2
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Other features
Pressure seal bonnet
Full bore
Bolted bonnet
Flexible wedge

For pressure seal bonnet type:
Bonnet gasket
Metal sealing
SS 304 long service RTJ ring
Threaded stem
Keep off corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design temp.: -196℃  -  573℃.
Material: ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
