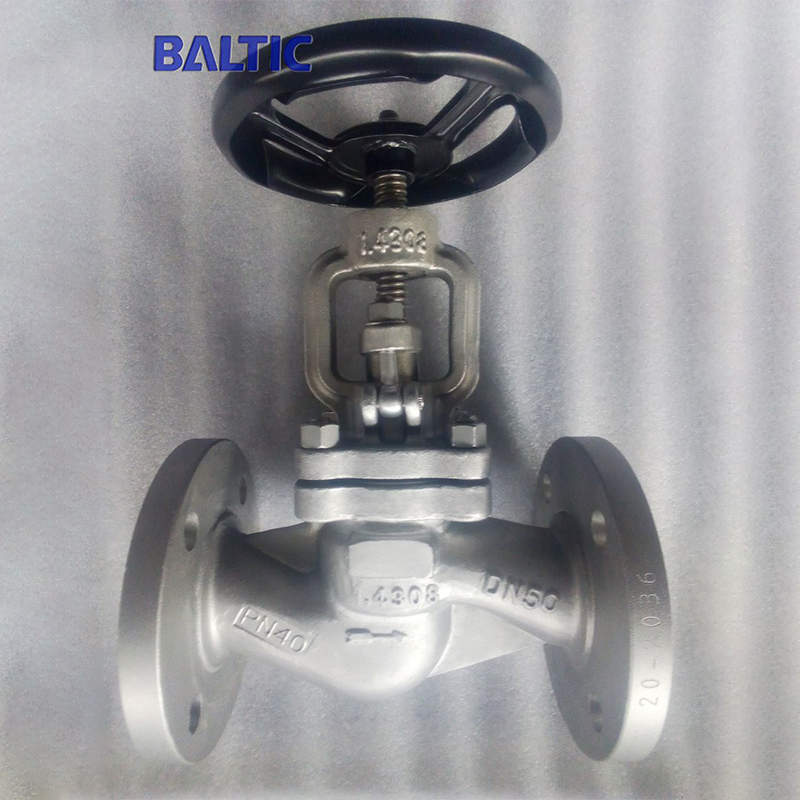

DN50 PN40 Globe Valve, Full Bore, 1.4308, EN 13709, RF

DN50 PN40 Globe Valve Manufacturer: 1.4308 S Globe Valve, DN50, PN40, Full Bore, RF Flanged Ends, EN 13709, FF EN 558-1/line 1, Test EN 12266-1.

Tags:

• S Type Globe Valve
• RF Flanged Globe Valve
• 1.4308 Globe Valve
• DN50 Globe Valve
• PN40 Globe Valve
• Full Bore Globe Valve
• EN 13709 Globe Valve

Name: DIN small size globe valve, full bore.
Design: EN 13709.
Body: 1.4308.
Nominal size: DN50.
Nominal class: PN40.
End connection: RF Flanged ends.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.

Technical parameters and characteristics
Product: Small size globe valve.
Nominal diameter: DN8 - DN50.
Design temp.: -196℃ - 573℃.
Design pressure: PN10 - PN160.
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard: EN 13709, DIN 3356.
Face to face: Manufacture standard, EN 558-1/line 1.
Connection end: NPT, SW, BW, Flange.
Test standard: API 598, ISO 5208.
Operation: Hand wheel, electric.
Application: Power station, petroleum, chemical engineering.
Function 1: Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2: Plug disc, needle disc.
Function 3: Full bore, reduce bore.
Function 4: Integral flanged ends, welded on flanged ends.
