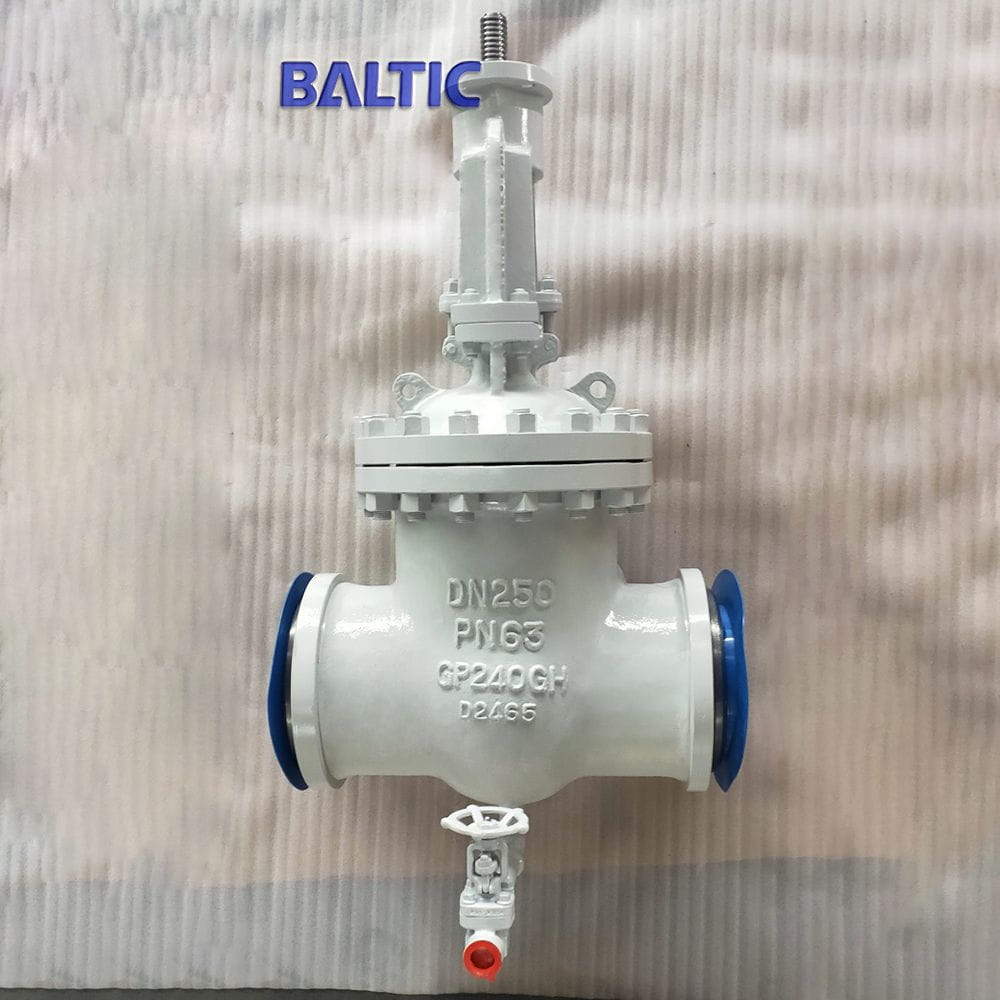

DN250 Gate Valve, PN63, GP240GH, EN 1984, DIN 3352, BW

DN250 Gate Valve, PN63, GP240GH, EN 1984, DIN 3352, BW

Key Specifications / Features

Model No.: Hits: 23

Discover a top-tier DN250 Gate Valve from a reputable manufacturer, engineered for Class 400 LB and PN63 applications. This valve boasts a 10-inch size, complete with a drain valve and flexible wedge design. Crafted from GP240GH and compliant with EN 1984 and DIN 3352 standards, it features BW ends, a bare stem, and an ISO TOP flange. Trust in its quality for efficient flow control.
Request a quote Share

Detail Information

Valve description:
Product Name: Flexible Wedge Gate Valve, with drain valve.
Design: EN 1984, DIN 3352
Material: GP240GH.
Nominal Size: DN250
Nominal Pressure: PN63
Connection Ends: Butt weld as per EN 12627.
Face to Face: EN 558-1/line 26
Model of Operation: Handwheel, Gearbox, bare stem + ISO TOP flange
Test and Inspection: EN 12266-1.

Other features
Pressure seal bonnet & Bolted bonnet type
Full bore and Flexible wedge

For pressure seal bonnet type:
Metal sealing and Bonnet gasket
RTJ SS 304 ring for a long service
Threaded stem
Without contact with the medium
Avoid possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design temp.: -196℃  -  573℃.
Operation: Hand wheel, gearbox, electric
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Material: ASTM A216 WCC, ASTM A216 WCB, ASTM A217 C12A, ASTM A217 C5, ASTM A217 WC6, ASTM A217 WC9, ASTM B148 C95500, ASTM B148 C95800,
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A352 LCB, ASTM A352 LCC, CN3MN, CK3MCUN, CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN),
Application: electric power, petroleum refining, petrochemical engineering, offshore oil, chemical engineering
