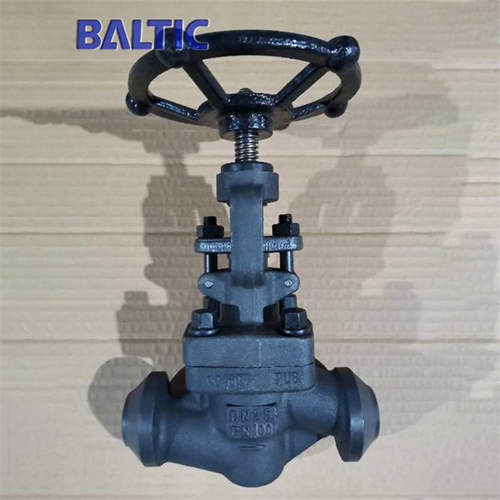

DN25 S-Type Globe Valve, 1.0460, PN100, DIN 3356, BW

DN25 S-Type Globe Valve Maker: S-Type Globe Valve, Full Bore, 1.0460, DN25, PN100, BW, DIN 3356, Forged Carbon steel, Stainless Steel, Alloy Steel.

Tags:

• DN25 Globe Valve
• S Type Globe Valve
• Full Bore Globe Valve
• PN100 Globe Valve
• BW Globe Valve
• DIN 3356 Globe Valve
• Stainless Steel Globe Valve
• Alloy Steel Globe Valve
• 1.0460 Globe Valve
• Forged Carbon Steel Globe Valve

Name: DIN small size globe valve, full bore.
Design: DIN 3356.
Body: 1.0460.
Nominal size: DN25.
Nominal class: PN100.
End connection: BW.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.

Technical Parameters and Characteristics
Product: Small size forged steel globe valve.
Nominal diameter: DN8 - DN50.
Design temperature: -196℃ - 573℃.
Design pressure: PN10 - PN160.
Material: Forged carbon steel, Stainless steel, Alloy steel, Bronze.
Design standard: API 602, DIN 3356.
Face to face: Manufacture standard, EN558-1/line 1.
Connection end: NPT, SW, BW, Flange.
Test standard: API 598, ISO 5208.
Operation: Hand wheel, Electric.
Application: Power station, petroleum, chemical engineering.
Function 1: Bolted bonnet, welded bonnet, pressure seal bonnet.
Function 2: Plug disc, needle disc.
Function 3: Full bore, reduce bore.
Function 4: Integral flanged ends, welded on flanged ends.
