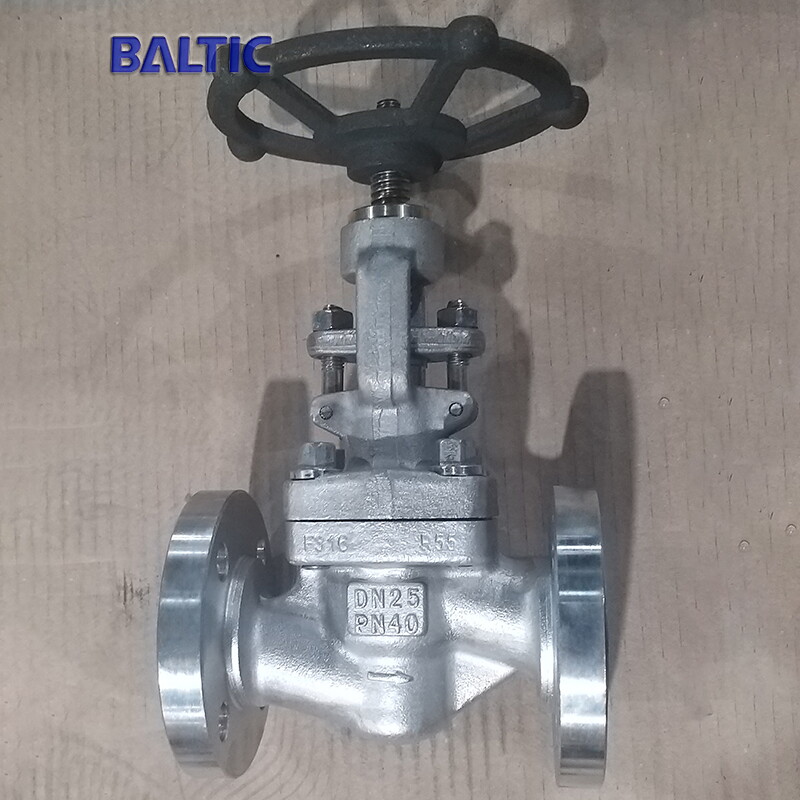

DN25 PN40 Globe Valve, ASTM A182 F316, ISO 15761, RF

Key Specifications / Features

Model No.: Hits: 6

Get top-quality DN25 PN40 Globe Valve crafted to ISO 15761 standards, featuring a compact design compliant with BS 5352 and made from ASTM A182 F316 material. This API 602-certified valve, sized at 1 inch, operates at Class 300 LB pressure, with RF End for seamless integration. Manufactured according to ASME B16.10 standards, ensuring reliability and performance.

Request a quote Share

Tags:

Next: PN40 Globe Valve, DN32, ASTM A182 F316, ISO 15761, RF

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Valve description:
Name: Small size globe valve.
Design: ISO 15761.
Body: ASTM A182 F316.
Nominal size: DN25.
Nominal class: PN40.
End connection: RF.
Face to face: as per EN 558-1.
Test and inspection: EN 12266-1.

Technical parameters and characteristics

Product	Small-size globe valve
Nominal diameter	1/4 - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 - 4500 LB
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduced bore
Function 4	Integral flanged ends、welded on flanged ends
