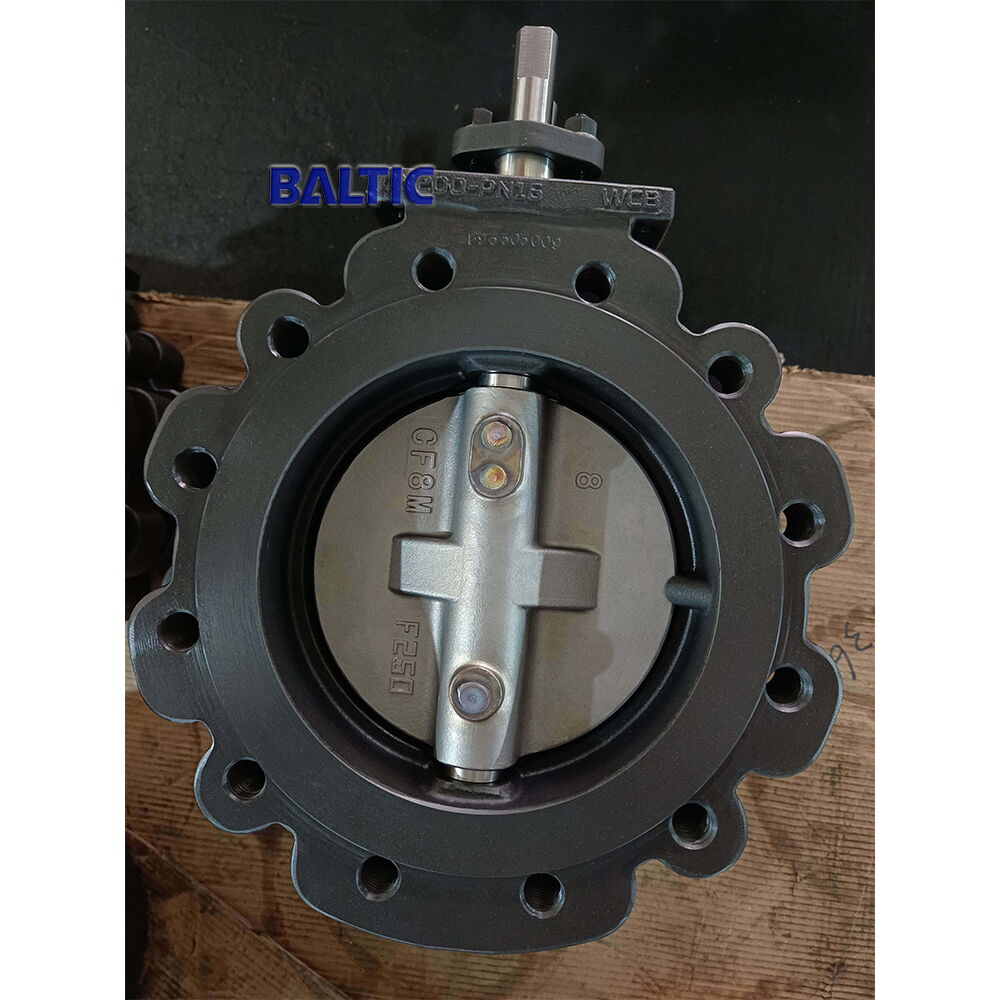

DN200 Butterfly Valve, API 609, ASTM A216 WCB, PN16, LUG

Discover premium DN200 butterfly valves from a trusted China factory. Features include 8-inch size, Class 150 LB, PN16 rating, API 609 compliance, ASTM A216 WCB body, ASTM A351 CF8M disc, 17-4PH stem, and durable lug type design. Perfect for industrial applications.

Tags:

• API 609 Butterfly Valve
• ASTM A216 WCB Butterfly Valve
• PN16 Butterfly Valve

Name: LUG type Butterfly Valve.
Design: API 609.
Body: ASTM A216 WCB.
Disc: ASTM A351 CF8M
Stem: 17-4PH
Seat: RPTFE
Nominal size: DN200.
Nominal class: PN16.
Connection ends: LUG type.
Face to face: EN 558, Row 20.
Test and inspection: API 598.

High Performance Butterfly Valve
Valve design: API 609
Double Offset
Soft Seat, Replaceable Seat
Fire Safe Seat Ring & Fire Safe Seat Insert: API 607
Valve design is sealing: Bi - Directional

Type: Lug, wafer, double flanges

Valve Face to Face: API 609
Testing & inspection: API 598 - tight A

Body: Cast Material Carbon Steel, Stainless Steel, Alu. Bronze
Disc:  Stainless Steel, Alu. Bronze, Titanium Alloy
Stem: 17-4PH, ASTM A182 F51, MONEL
Seat: PTFE, RPTFE, PPL, TFM 1600
Operation: lever, Gearbox + HW

Operation: Manual Gear Operator with hand wheel + position indicator to be done ANTI-ACID paint coating
