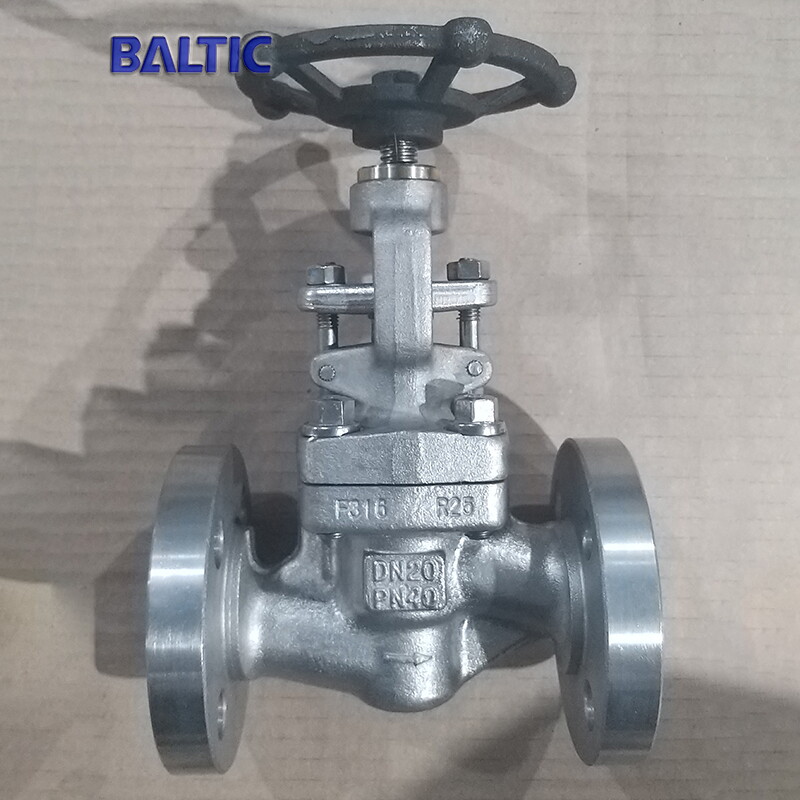

DN20 Globe Valve, PN40, ISO 15761, ASTM A182 F316, RF

Key Specifications / Features

Model No.: Hits: 10

This DN20 Globe Valve is manufactured according to ISO 15761 standards, featuring a PN40 rating and a 3/4 inch size. With a Class 300 LB designation and constructed from ASTM A182 F316 material, it adheres to API 602 and BS 5352 specifications. The valve is equipped with RF Ends, conforms to FF EN 558-1 standard, and undergoes testing according to EN 12266-1 requirements.

Request a quote Share

Tags:

Next: DN25 PN40 Globe Valve, ASTM A182 F316, ISO 15761, RF

Previous: DN15 Globe Valve, ASTM A182 F316, PN40, ISO 15761, RF

Detail Information

Valve description:
Name: Small size globe valve.
Design: ISO 15761.
Body: ASTM A182 F316.
Nominal size: DN20.
Nominal class: PN40.
End connection: RF.
Face to face: as per EN 558-1.
Test and inspection: EN 12266-1.

Technical parameters and characteristics

Product	Small-size globe valve
Nominal diameter	1/4 - 4 Inch
Design temp.	-196℃ - 573℃
Design pressure	Class 150 ～ 4500
Material	Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard	API 602, BS 5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, Flange
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduced bore
Function 4	Integral flanged ends、welded on flanged ends
