DIN Non-rising stem Gate Valve, EN 1984, GS-C25, DN50, PN40

Credible Non-Rising Stem Gate Valve Supplier: GS-C25, DN50, PN40, EN 1984, 2 Inch, Class 300 LB. Quality GS-C25 Gate Valves with Handwheel Operation, Available in Sizes 2-60 Inch, Suitable for 150-2500 LB Applications.

Tags:

• EN 1984 Gate Valve
• GS-C25 Gate Valve
• DN50 Gate Valve
• PN40 Gate Valve
• 2 Inch Gate Valve
• Class 300 LB Gate Valve

Valve description:

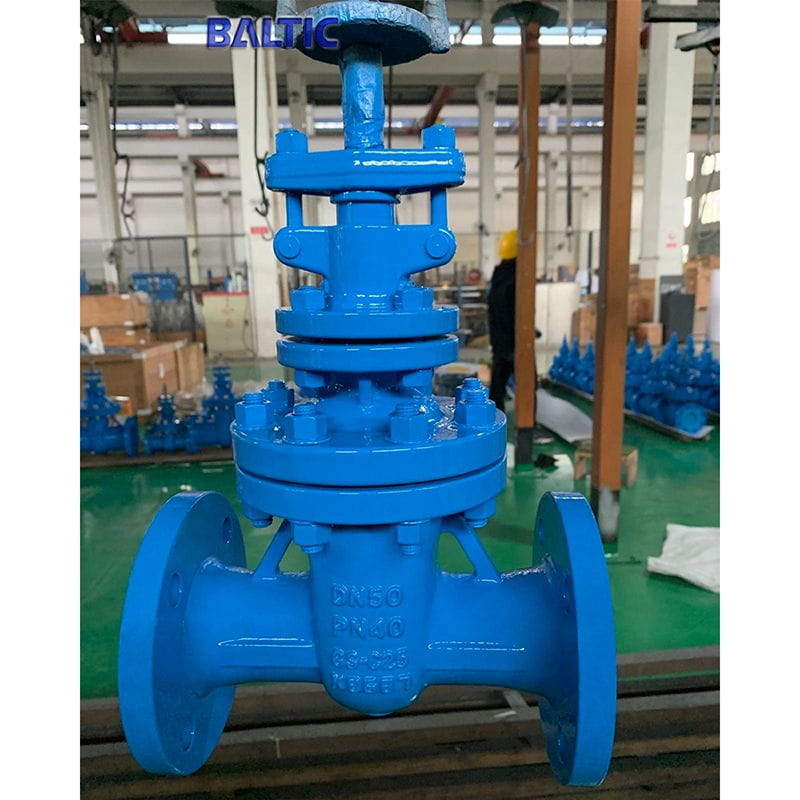

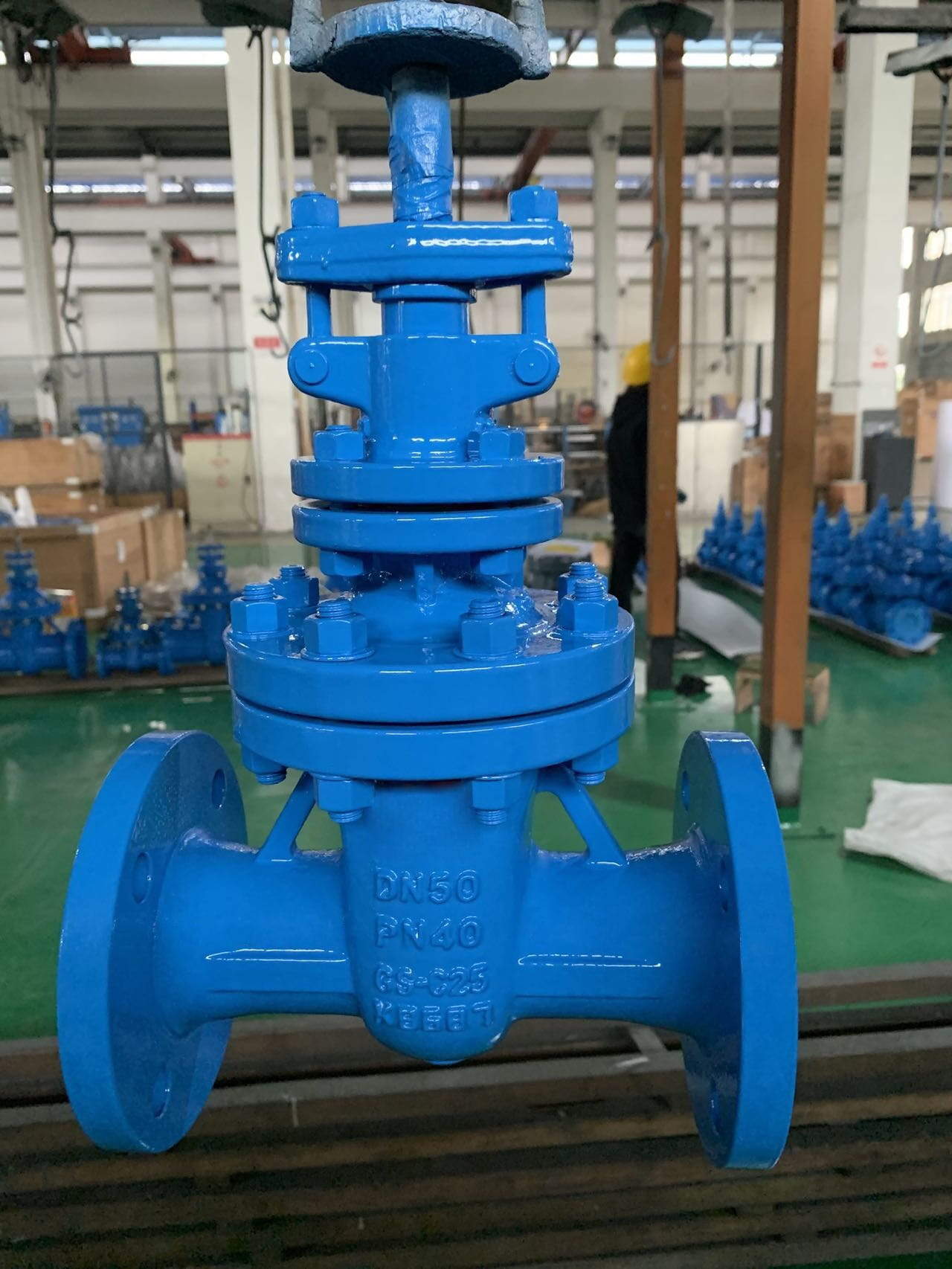

Product name: Non-rising stem DIN Gate Valve.
Design: EN 1984
Material: GS-C25.
Nominal size: DN50
Nominal pressure: PN40
Connection ends: EN 1092-1/B1
Face to face: EN 558-1/line 26 (DIN 3202 F7)
Model of operation: Handwheel
Test and inspection: EN 12266-1

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.: -196℃ - 573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, CN3MN, CK3MCUN, CN7M, ASTM B148 C95800, ASTM B148 C95500,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN)
Application: Producing electricity, refining crude oil, fabricating petrochemicals, conducting deep-sea offshore drilling, and chemical production.
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
